Innovative Mixing Principle suppliers for tile adhesive mixer machines in thailand
- 400 Set / Sets per Month
- Shanghai
- T/T Credit Card
- Innovative Mixing Principle horizontal mixer dryer
- Innovative Mixing Principle cara pemakaian vidio mixer edirol v
- Innovative Mixing Principle tumbling mixer wikipedia
- Innovative Mixing Principle jolly batch powders blenders
- Innovative Mixing Principle powder mixer 40kg per batch
- Innovative Mixing Principle dry powder mixing machine rrc
Product Details
Condition: | New | Mixer Type: | Other, Ribbon, Ribbon | Product Type: | Other, Powder materials |
Application: | Other, Powder, Powder | Additional Capabilities: | Drying | Place of Origin: | Henan, China |
Brand Name: | JIN HE | Model Number: | JHX | Max. Loading Capacity: | 80% |
Voltage: | Customize | Power(W): | 1.1-11kW | Dimension(L*W*H): | See below |
Certification: | CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
wooden box;package size of JHX 200 is 2150*900*1550mm
Product Description
Innovative Mixing Principle Innovative Mixing Principle suppliers for tile adhesive mixer machines in thailand
Company brief introduction
Zhengzhou Jin Tai Metal Materials Co., Ltd. is a professional manufacturer for mixing machine. We are an ambitious company with personality and strong ability in R&D. The double movement mixing principle that we proposed has greatly improved efficiency and save more energy. At present 3 series mixing machines that we have created all have independent intellectual property rights and national patent rights. Our innovative mixing principle is considered at the forefront of mixing technology.
Product introduction
Innovative Mixing Principle suppliers for tile adhesive mixer machines in thailand

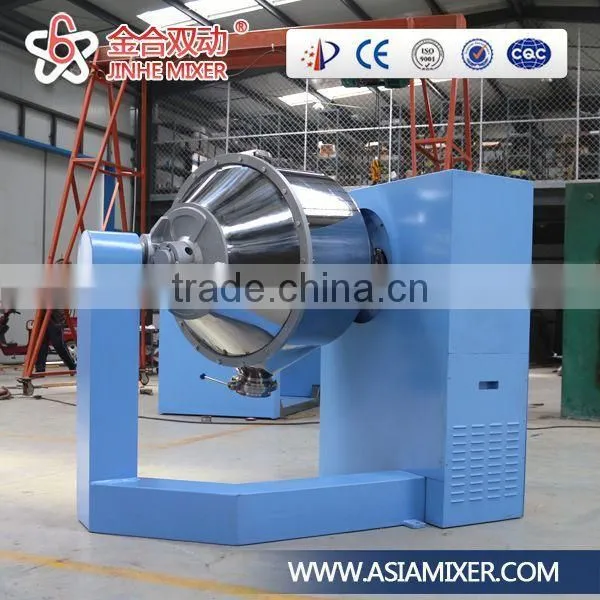

JINHE®JHX series cross revolving shaft double movement mixing machine, its mainly acting part is made up of revolving double cones container which is placed declining, plus external revolving axis and internal helical blades components. Components with different revolving speed are driven by one power system. Between the helical blade's revolving axis and container it is sealed by special sealing components. When discharge material, customer can operate positive shake or reverse shake button on the panel to make container local shake and the revolving blade will speed up the discharging. All contact parts of this machine are made of high quality stainless steel.
1st .The two functions of container revolving around slant axis are completely eliminate dead angle on the bottom of container and make mixtures convected left and right, up and down to participate mixing directly.
2nd .Relatively fast speed helical blades play major role in mixing. Moreover, the helical blades including inside and outside blades. When inside blades revolving, the mixtures can be stirred in vertical direction meanwhile stirred from middle position to two sides. So our machine can mix materials more uniformly. Furthermore, the functions of helical blades' cutting, striking and so on. After strict test, in the field of mixing metal alloy powder which has very strict requirement, if customer use traditional V shape mixer, it will take 24 hours to meet mixing criterion, but customer who use our mixer will only take 4 hours before meeting standard. If the powders are ordinary type, 10 minutes will be okay.
3rd .This series machine has better mixing effect for powders which has big difference in specific gravity. Because the revolving helical blades inside this machine have down force to powder, floating light powder can be pressed down into the heavy powder and mixed completely.
Model | Barrel Capacity (L) | Max Barrel Capacity (L) | Max Barrel Weight Capacity(kg) | Barrel Revolution Speed | Blade Revolution Speed | Motor Power | Size (mm) | Weight |
JHX50 | 50 | 35 | 60 | 25 | 50 | 1.1 | 1620×580×1060 | 430 |
JHX100 | 100 | 75 | 110 | 23 | 46 | 1.1 | 1780×670×1240 | 500 |
JHX200 | 200 | 140 | 240 | 21 | 42 | 2.2 | 2060×800×1400 | 660 |
JHX400 | 400 | 280 | 500 | 17 | 34 | 3.0 | 2500×950×1610 | 910 |
JHX600 | 600 | 420 | 700 | 17 | 34 | 4.0 | 2650×1050×1800 | 1200 |
JHX600Z | 600 | 420 | 1000 | 14 | 28 | 5.5 | 2000×1280×1800 | 1400 |
JHX800 | 800 | 560 | 800 | 14 | 18 | 5.5 | 2000 | |
JHX1000 | 1000 | 700 | 1000 | 11 | 22 | 11 | 2530×1650×2070 | 2300 |
Advantages
Ideal Mixing Effect: Due to the container revolving, the machine can mix more evenly in general points. While blades stirring, the machine can mix more meticulously and completely in detail points.
High Loading Ratio: Compared with ordinary 3D mixer, ours' loading ratio is much higher. Because blades take major role during the machine working. That is why our double movement mixer's loading ratio is high, max. Loading rate can reach 75% of container. For the same volume, the loading capacity of our one machine is almost equivalent to two 3D mixers.
Time-saving: The mixing way of our double movement mixer is two mixing ways superposed together, that is why our machine has high efficiency. Compared with 3D mixer, ours can save 60% time to meet mixing standard.
Money-saving: Compared with traditional mixer, ours can save time above 50%, save electricity about 70%, save space about 50%, money saving about 30%.
Application Range
1st .Applied to dry powder or semi-dry powder, it is usually used in these fields, such as powder metallurgy, rare earth, and pharmacy and so on.
2nd .Due to its high mixing efficiency, it is particularly suitable for mixing powder which demand strict requirement.
3rd .Suitable for fine powder, superfine powder, powder with big difference in specific gravity.
Part of our customers
For machine's video and animation please kindly paste this website address to your browser /english/news/vedio.aspx?no=55
....
Company Profile
Zhengzhou Jin Tai Metal Materials Co., Ltd. was established in 2001. Our company is a professional mixer (also known as mixing machine) manufacturer. Our corporation has about 185 staff members, including 15 senior engineers. Our company integrates research and manufacture during our development. Our production department is located at No.1, Zhongxing Road, Xinzheng City and our headquarters is located at No.71, Weilai Road, Weilai Garden, Zhengzhou City, being close to the famous Zhengdong New District.
For mixing equipment, most companies are still producing traditional equipment. Some equipment has not been changed for over 30 years. Over these years, our company has been sticking to the spirit of "Made in China" in the field, devoting ourselves to the innovation in order to improve efficiency and save energy. At present, we have independent intellectual right and national patent technology for our products. In the creation of domestic mixing equipment, our company has been taking the leading position.
"Made in China" has been the dream of several generations in the industrial field. Being the main force of the independent innovation, our company is responsible for making contributions to the development of Chinese industry and keeping innovating and moving forward to make more high quality products.
Contact Us
- Zhengzhou Jinhe Machinery Manufacture Co., Ltd.
- Contact nameTyler Liu
- Phone86-0371-55982206
- AddressNo.1 North Industrial Zone, Xinzheng City, Henan Province, Email: tyler(at)jtzz.cn Zhengzhou,Henan
