car paint blending machine
Introduction

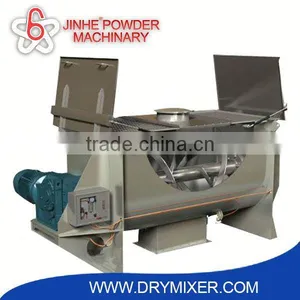

car paint blending machine consists of U shape shell ,double ribbons and drive unit.
The exterior ribbon transfers raw material from the two ends to center while the interior ribbon moves
the material in opposite in the form of counter-current movement.
Ribbons can be changed into paddles,and chopper is optional for different materials.
The top cover can be concave for pressure application ,or full open way to allow for easy cleaning.
The advantages of car paint blending machine
1.High Mixing Effect
2.Rapid Mixing Time
3.Large Loading Ratio
4.Wide Application
5.Wear-Resistence and Low Maintenence
Model Project |
Total Volume (M³) |
Loads coefficient |
Electrical machiney power (KW) |
Size(mm)× Max-diameter ×High |
Equipment weight (kg) |
JHRB-0.15 |
0.15 |
0.4-0.8 |
3 |
1190×740×770 |
330 |
JHRB-0.3 |
0.3 |
0.4-0.8 |
4 |
2030×630×980 |
720 |
JHRB-0.5 |
0.5 |
0.4-0.8 |
7.5 |
2320×730×1130 |
980 |
JHRB-1 |
1 |
0.4-0.8 |
11 |
2800×920×1320 |
1700 |
JHRB-1.5 |
1.5 |
0.4-0.8 |
11 |
3180×1020×1550 |
1800 |
JHRB-2 |
2 |
0.4-0.8 |
15 |
3310×1120×1640 |
2100 |
JHRB-3 |
3 |
0.4-0.8 |
18.5 |
3750×1290×1820 |
3000 |
JHRB-4 |
4 |
0.4-0.8 |
22 |
4220×1400×1990 |
3980 |
JHRB-5 |
5 |
0.4-0.8 |
22 |
4220×1500×2100 |
4620 |
JHRB-6 |
6 |
0.4-0.8 |
30 |
4700×1610×2260 |
6180 |
JHRB-8 |
8 |
0.4-0.8 |
37 |
4420×2150×2470 |
8200 |
JHRB-10 |
10 |
0.4-0.8 |
45 |
5520×2960×2720 |
8920 |
JHRB-12 |
12 |
0.4-0.8 |
45 |
5720×3010×2840 |
9520 |
JHRB-15 |
15 |
0.4-0.8 |
55 |
5840×3540×2940 |
9950 |
Manufacturing Process
Applications
An experienced and well mannered sales and marketing team is committed to bringing you 100% customer satisfaction. In order to succeed in the rapidly changing podwer mixer market, our company has instituted a development policy that emphasizes "Serving the customer, improving products, providing best service,sureness and steadiness, devotion and dedication".Please feel free to contact us at any time.
Zhengzhou Jin Tai Metal Materials Co., Ltd. cleaves to the spirits of" Creat in China" in the field, devoting research to innovating in order to improve the efficiency and save more energy. At present we have the independent intellectual rights and national patent technology of our products .
Certificates
Exihibition
1.Some remarkable questions in the process of use.
Because the Dry Powder Mixer Machine is electrical equipment, so the operator should pay attention to electricity safety.
2.How to maintain dry mixer?
1.)Ensure that the Dry Powder Mixer Machine and the surrounding environment clean.
2.)Regular checks of the various systems, such as tainted ash, gas leakage, oil spills and leakage phenomenon timely processing.
...
