heater for soldering pot
| Characteristic | Application |
| High quality titanium,high temperature, acid and alkali resistance property, abrasion resistance, | circuit board welding, electronic transformers, coils, electronic wire tin |
| less power consumption, energy saving, fast heating up, long service on working | Dismantle components |

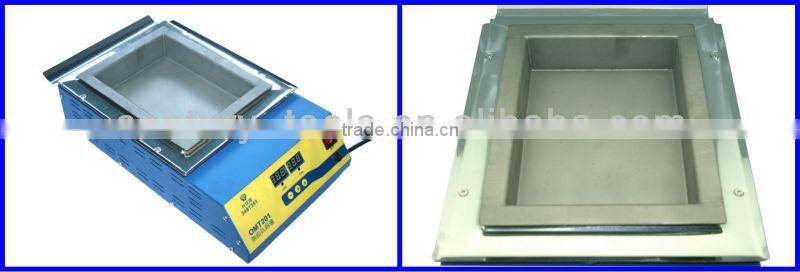

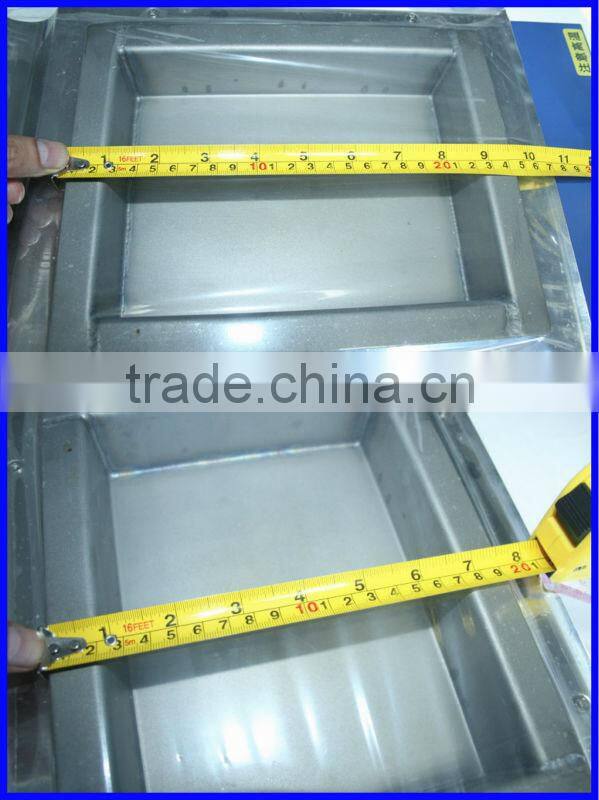

Showing you the size of the solder pot replacement cruicible

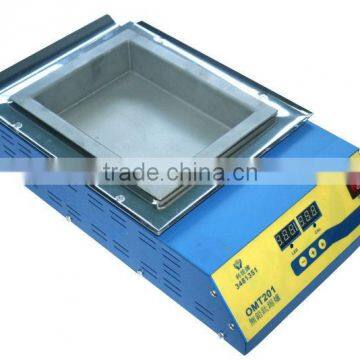

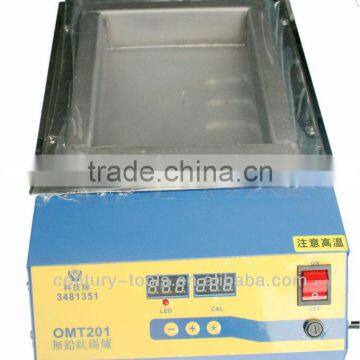

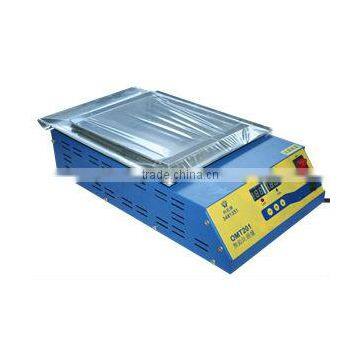

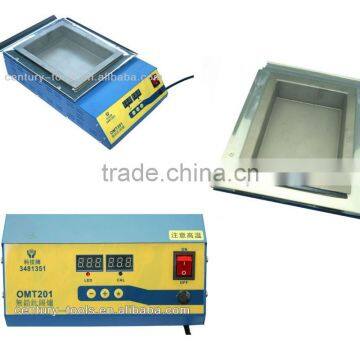

heater for soldering pot
Key features of the heater for soldering pot:
1.Titanium material heater for soldering pot,
2.High temperature resistance heater for heater for soldering pot,

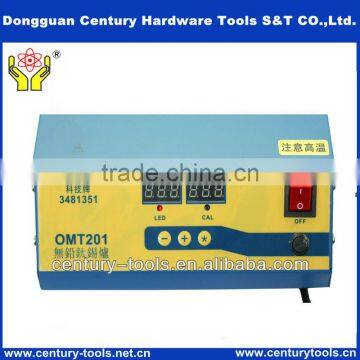

3.Digital LED display,temperature adjusting,
4.Good air ventilation solder pot
5.Dual digital display solder pot,
| Modle | circuit board welding heater for soldering pot |
| Size | 446L*245W*115H |
| Power | 1500W |
| Temperature | 200-600°c |
| Heater | Ceramic heating plates, circular heating |
| Melting time | 20 minutes |

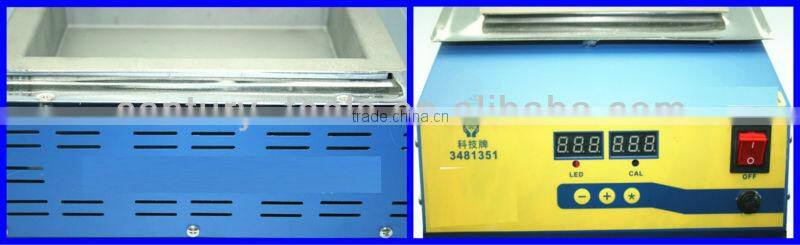

| Temperature control | Dual digital display, clear reading operation, PID temperature control to international standards, precise temperature, actual temperature changes can be observed |
- We have many advantages on the lead free solder pot:
1.Input voltage: 220V/110V
3.Lead free heater for soldering pot Square Series
4.With a large capacity specially processed lead free solder bath.
5.The titanium solder bath and other heavy duty compents offer greater durability.
6.High power ceramic heater of lead free solder pot,quickly melten the lead free tin bar.
7.Microcomputer chip intelligent control of lead free solder pot, double digital display, high sensitivity, quickly heating up.
8.Lead-free soldering pot high templerature, corrosion resistance, durable use.
| Model | Description | Re.Photo | |

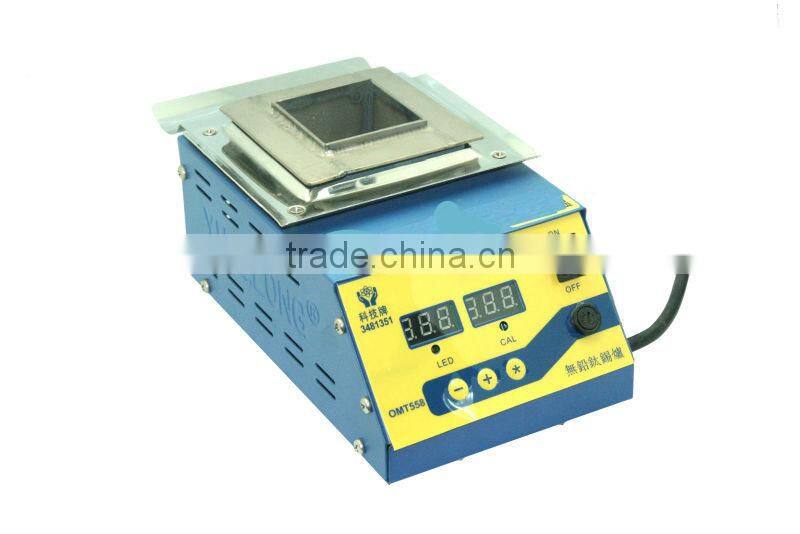

SJ-558heater for soldering pot |
Power | 250W | |
| Temperature range | 200-600°C | ||
| Melted solder capacity | 1.32kg | ||
| Outer dimensions(mm) | 266L*145W*115H | ||
| Soldering pot dimensions(mm) | 55*55*45 | ||

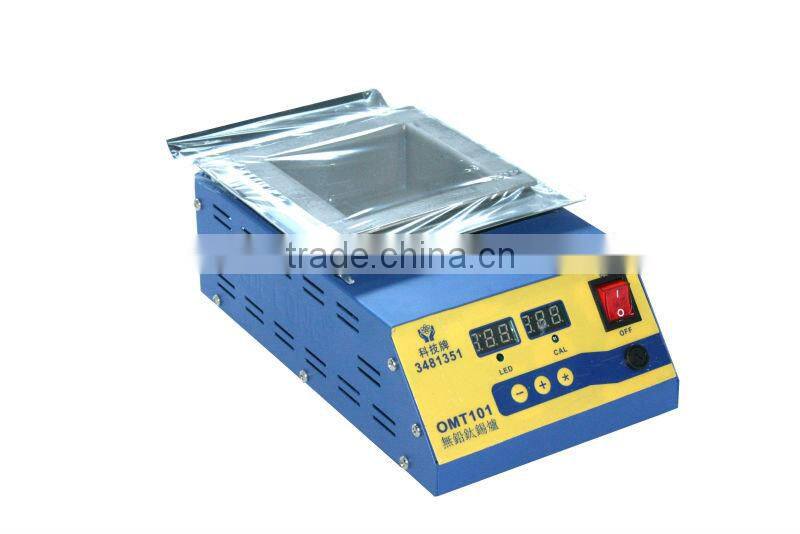

SJ-101heater for soldering pot |
Power | 800W | |
| Temperature range | 200-600°C | ||
| Melted solder capacity | 3.2kg | ||
| Outer dimensions(mm) | 327L*175W*115H | ||
| Soldering pot dimensions(mm) | 100*100*45 | ||

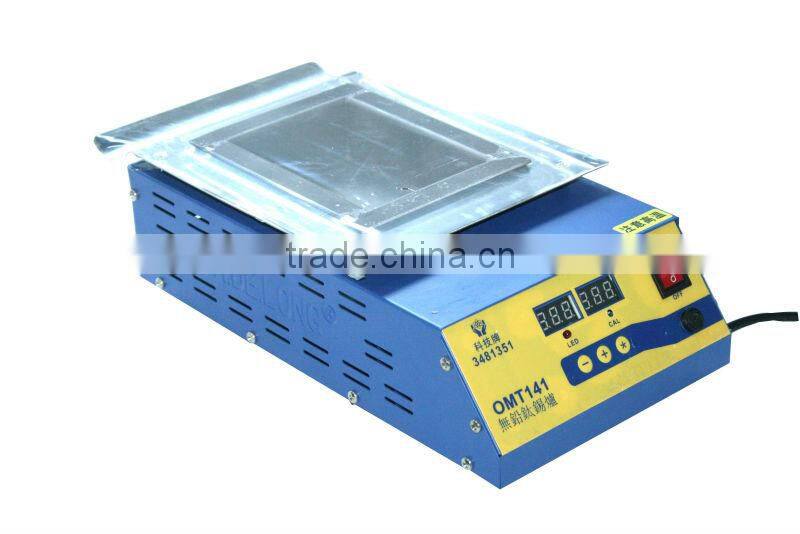

SJ-141heater for soldering pot |
Power | 900W | |
| Temperature range | 200-600°C | ||
| Melted solder capacity | 4.5kg | ||
| Outer dimensions(mm) | 397L*205W*115H | ||
| Soldering pot dimensions(mm) | 140*100*45 | ||
|

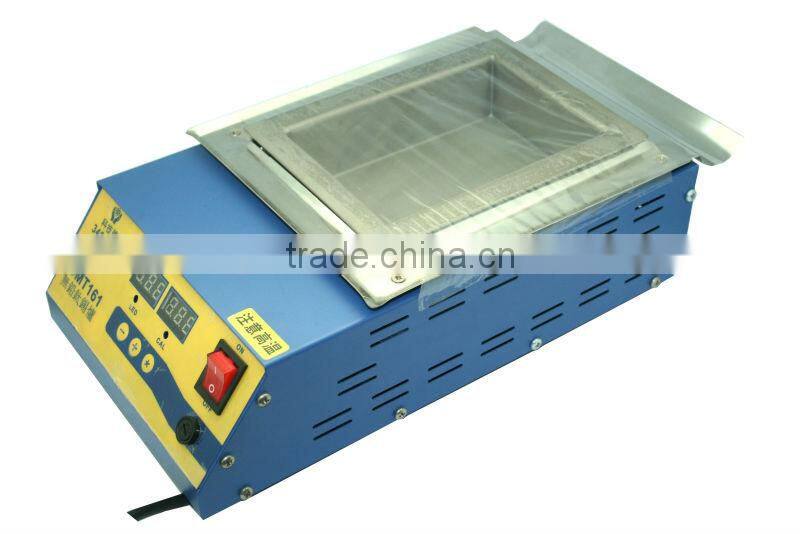

SJ-161 lead free solder pot |
Power | 1000W | |
| Temperature range | 200-600°C | ||
| Melted solder capacity | 5.7kg | ||
| Outer dimensions(mm) | 397L*205W*115H | ||
| Soldering pot dimensions(mm) | 160*110*45 | ||

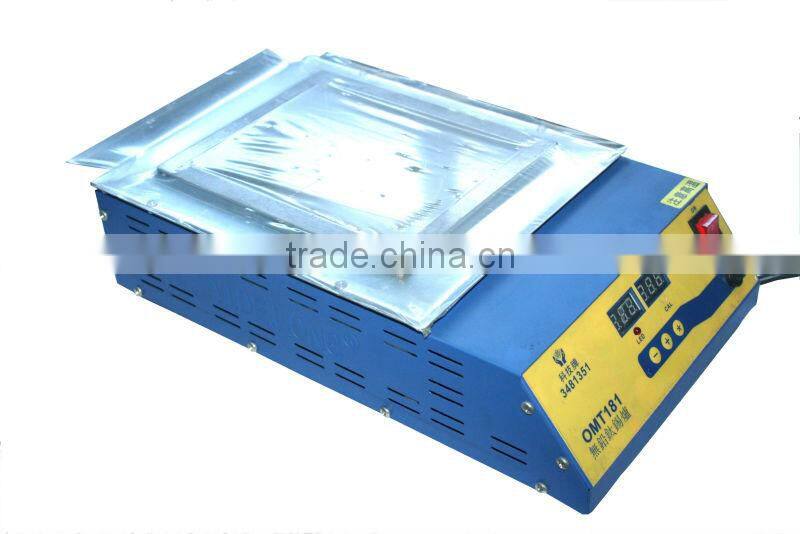

| SJ-181heater for soldering pot | Power | 1200W | |
| Temperature range | 200-600°C | ||
| Melted solder capacity | 8.2kg | ||
| Outer dimensions(mm) | 446L*245W*115H | ||
| Soldering pot dimensions(mm) | 180*140*45 | ||
|

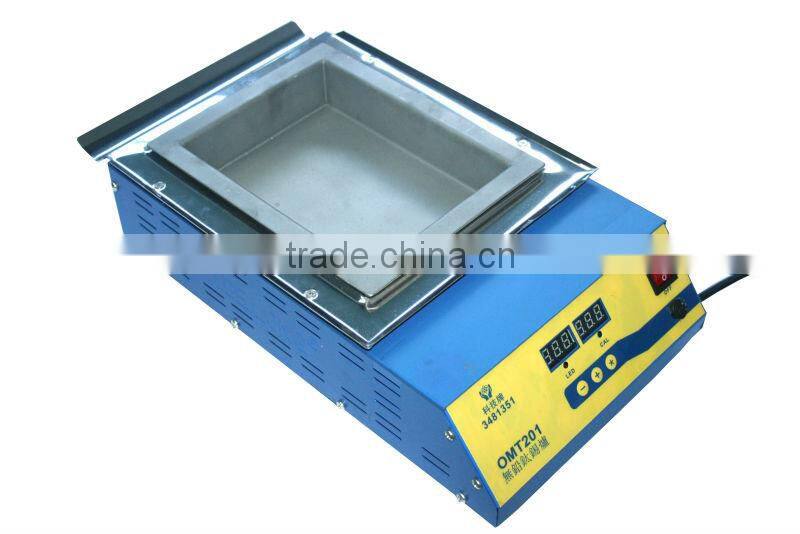

SJ-201 lead free solder pot |
Power | 1500W | |
| Temperature range | 200-600°C | ||
| Melted solder capacity | 9.8kg | ||
| Outer dimensions(mm) | 446L*245W*115H | ||
| Soldering pot dimensions(mm) | 200*150*45 | ||
|

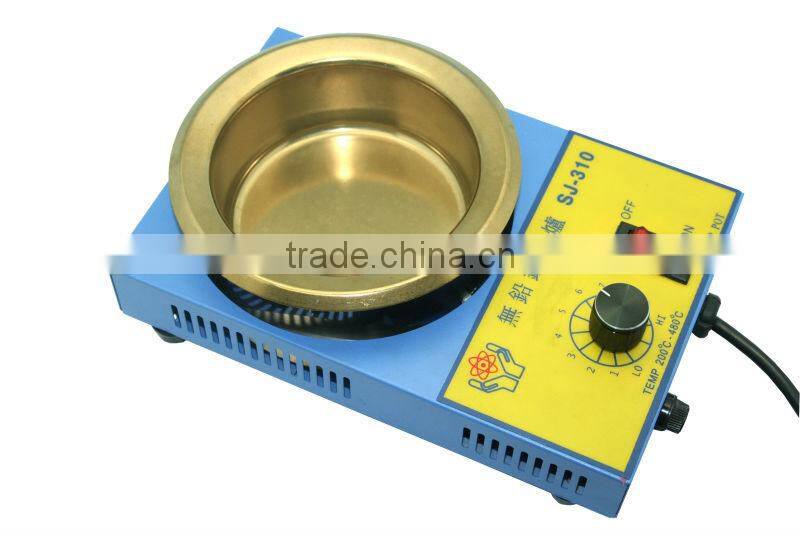

SJ-310 lead free solder pot |
Power | 300W | |
| Temperature range | 200-480°C | ||
| Melted solder capacity | 1.2kg | ||
| Soldering pot dimensions(mm) | Ø100mm | ||
| Packing | 20sets/CTN | ||
| Packing Size | 49*39*39cm | ||

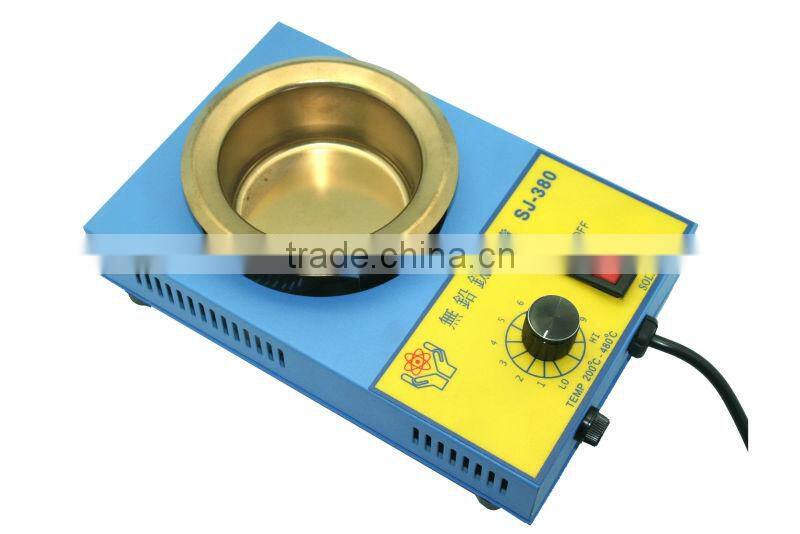

| SJ-380heater for soldering pot | Power | 250W | |
| Temperature range | 200-480°C | ||
| Melted solder capacity | 0.8kg | ||
| Soldering pot dimensions(mm) | Ø80mm | ||
| Packing | 20sets/CTN | ||
| Packing Size | 49*39*39cm | ||

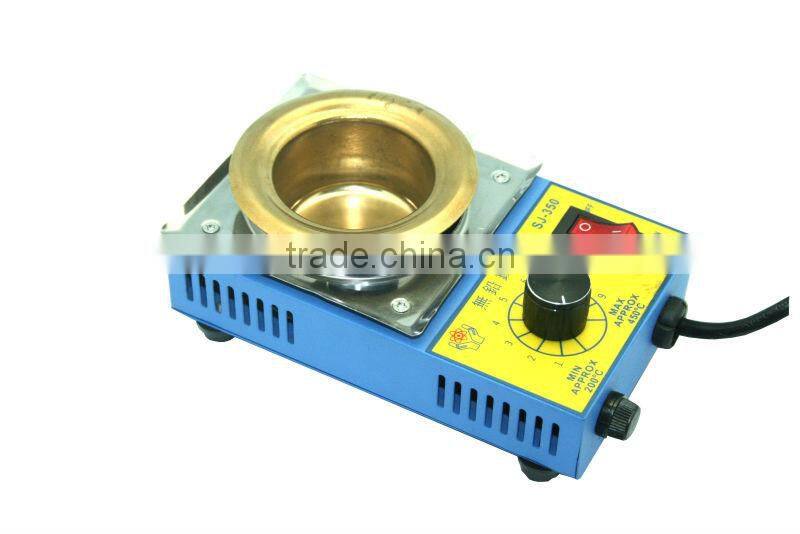

| SJ-350heater for soldering pot | Power | 150W | |
| Temperature range | 200-480°C | ||
| Melted solder capacity | 0.5kg | ||
| Soldering pot dimensions(mm) | Ø50mm | ||
| Packing | 30sets/CTN | ||
| Packing Size | 53*37*31.5cm | ||

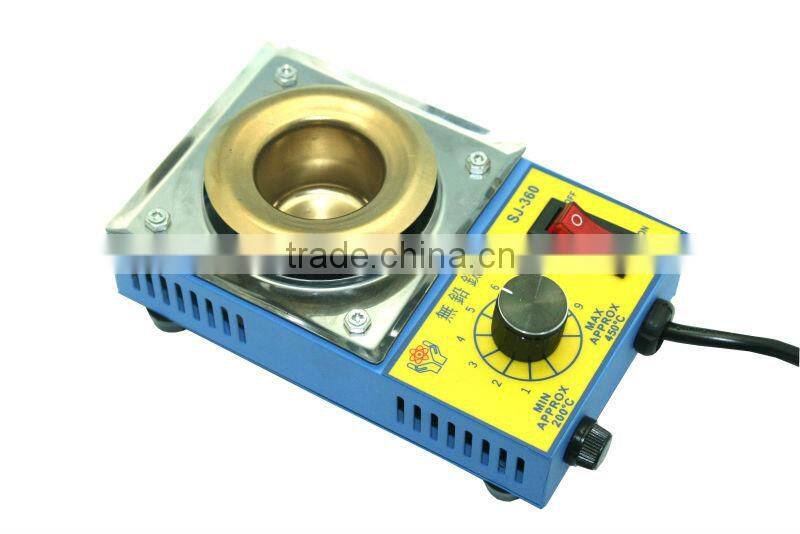

| SJ-360heater for soldering pot | Power | 100W | |
| Temperature range | 200-480°C | ||
| Melted solder capacity | 0.25kg | ||
| Soldering pot dimensions(mm) | Ø36mm | ||
| Packing | 30sets/CTN | ||
| Packing Size | 53*37*31.5cm | ||
- What 's hot? The following is the one you want?

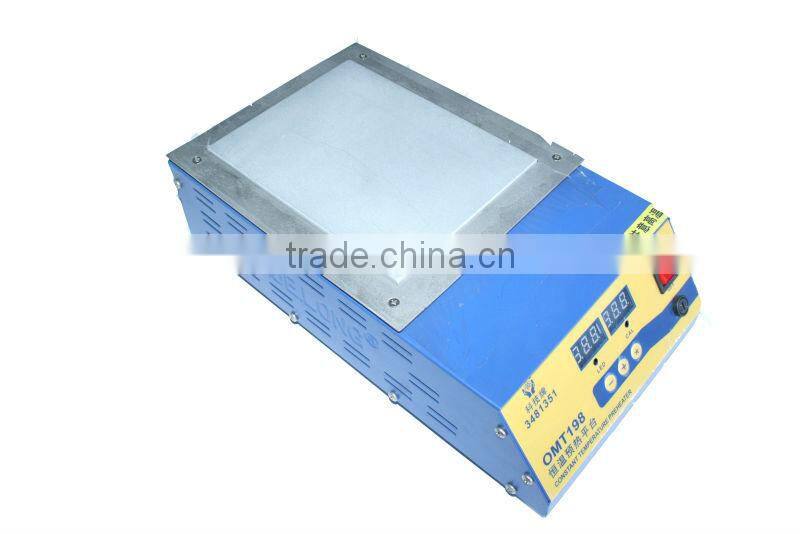

| Item | Key features | Temperature | Heater |
|
-The preheater with the aluminum sheet,fast heatng, -Temperature controller with PID tecnology,difference in temperature ±3°c,displaying the temperature correctly. -Exteranal heating funtion,long using time, power saving, -Working for 24 hourses, |
200-500°c | Ceramic |
| SJ-198 preheater |
- Our heater for soldering pot is new product. titanium producing technology, built-in advanced microcomputer digital control and display system, make it more safe, more steady and more accurate.
1. Only within 10minutes to reach 250°C from room temperature.
2. Fast temperature returning capability.
3.The boiler made of titanium alloy, can resist high temperature, cauterization and abrasion, can largely prolong the life.
4. Auto sleeping, energy-efficient lead free solder pot.
5. With temperature locking function, will not be affected by power on or off.
6. With malfunction alarm.
- Take attention to using the heater for soldering pot
1.Do not adding the other liquid to the bath,
2.When the lead free solder pot works, the body shell temperature is higher, do not touch to avoid burns,
3, please cut off the power advoid sudden high voltage to damaging the tube,
4.Collected during the welding residual oxides can be secondary reduction treatment;
5.The machine should not be used in a humid, flammable, corrosive, high dust and other harsh environments;
About us:
We are looking forward to your inquiry about heater for soldering pot or the other products!
