YS SERIES TRACTOR 3-POINT MOUNTED SOIL TILLING MACHINE
WHAT IS A ROTOTILLER ?
This farm soil tilling machine is connected with the tractor to complete the plow and harrow operation. It adopts the increased gearbox, which extends the working life of universal joint rotation axis. The machine can work steadily in any soil and geographic conditions, and has good working quality, broad adaptability, high efficiency, is a new generation ideal rotary cultivator. This farm soil tilling machine was awarded as “National free-inspected products” and “Famous brand product of Henan province”.
ROTOTILLER GENERAL FEATURES:
According to the position of the axis of the rotary blade, the rototiller can be divided into horizontal axis type and vertical shaft type.
Horizontal axis rotary cultivator (horizontal) features: strong pulverizer ability, fight for the farming season to improve work efficiency, and take full advantage of the power of the tractor.
Vertical shaft rotary cultivator (vertical): the working parts of the rotary blade shaft are equipped with three screw linear cutter. For paddy hydroponics, it has strong pulverizer, up plasma effect.
SOIL TILLING MACHINE / ROTOTILLER SPECIFICATIONS:
- Gear Driven, Single Speed or Multi Speed , Gearbox is Rated for 17 to 25HP, PTO.
- Tilling Width is 1100mm.
- Tilling Depth is 80-140mm , adjustable.
- 'L' or 'C' Shaped Blade, Total of 24 Blades!
- Working efficiecny is about 0.2-0.33ha/h.
- Weight is 215kg.
- 3-Point Hitch.
ROTARY TILLER CULTIVATOR / ROTOTILLER TECHNICAL PARAMETRS
Model |
1GQN-110 |
Dimension |
1000*1250*1020mm |
Match Power |
02.5-18.4kw |
Total Weight |
215kg |
Working Width |
1100mm |
Blade Quantity |
24 |
Blade Shape |
L or C |
Tillage Depth |
80-140mm, adjustable |
Forward Speed |
2-5km/h |
Cutter shaft rotate speed |
233r/min |
Working Efficiency |
0.2-0.33 ha/h |
Broken soil rate |
> 60% |
vegetation cover |
> 60% |

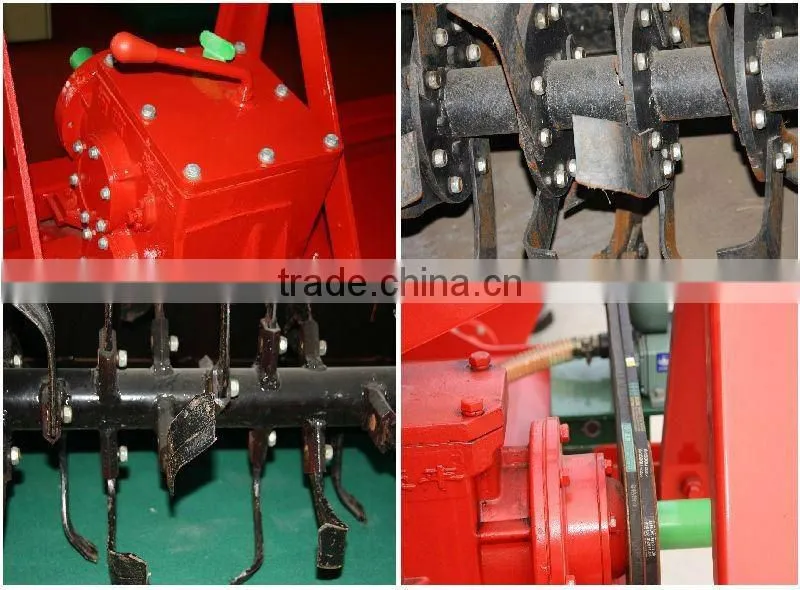

ROTARY TILLER CULTIVATOR / ROTOTILLER FITTINGS

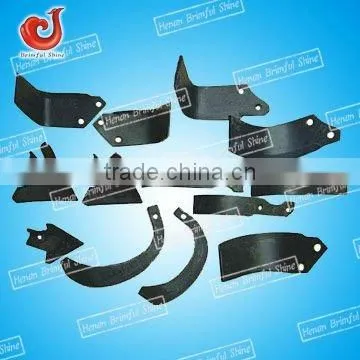

1. Blade
2. Gear box

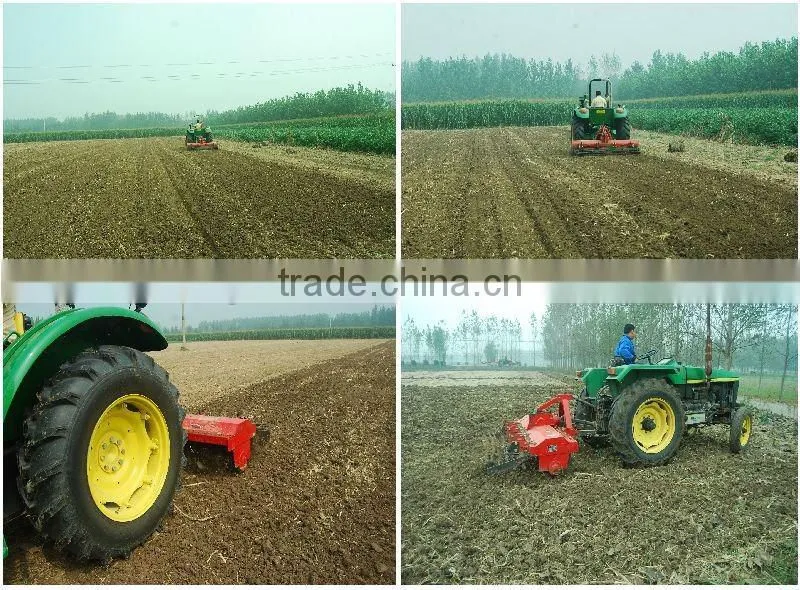

ROTARY TILLER / ROTOTILLER OPERATION PICTURES
WE SUPPLY VARIOUS FARM MACHINERY

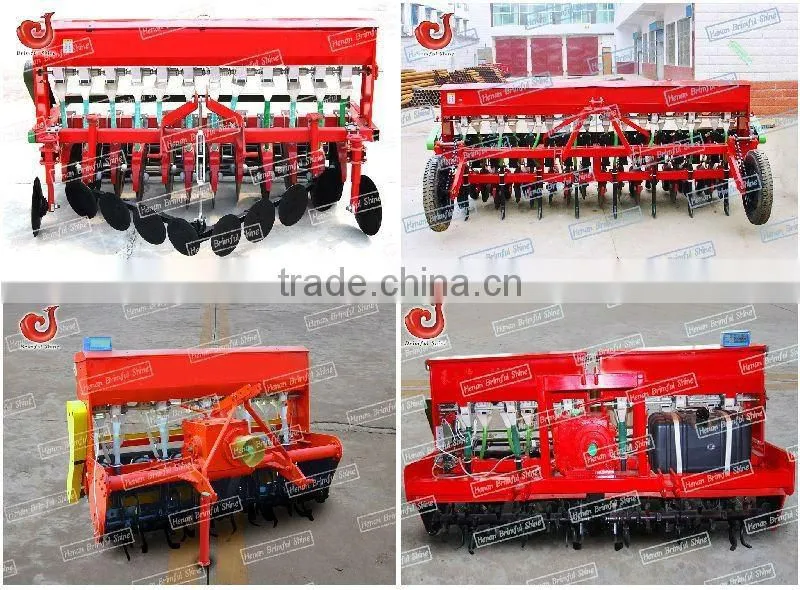

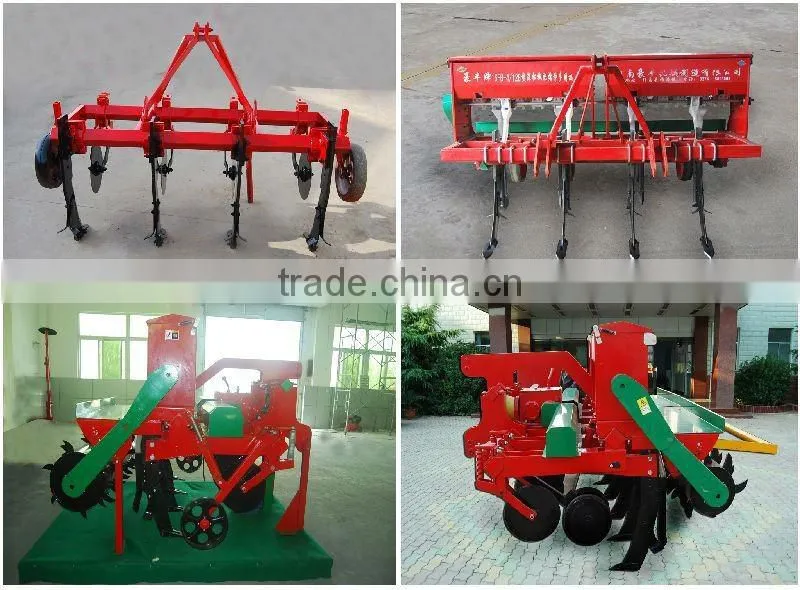

1.SEEDER
2. HARVESTER
3. CULTIVATOR
WELCOME TO VISIT OUR SITE.
I AM ALWAYS AT YOUR SERVICE.
