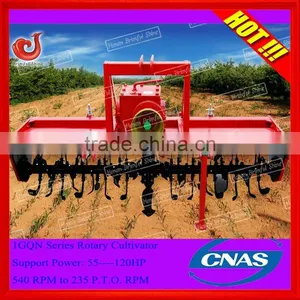

1. Introduction of rotary cultivator
•This rotary cultivator is connected with the tractor to complete the plow and harrow operation.
•It adopts the increased gearbox, which extends the working life of universal joint rotation axis.
•The machine can work steadily in any soil and geographic conditions, and has good working quality, broad adaptability, high efficiency, is a new generation ideal rotary cultivator.
•It was awarded as “National free-inspected products” and “Famous brand product of Henan province”. Also has passed ISO, CNAS, IAF Certifications.
2. Rotary cultivator structure feature
•Specially designed L-blades, having a longer life and requires less maintenance.
•Multi speed gear box.
•PTO Shaft with shear bolt system, to avoid damage to Rotary Tiller & Tractor due to overload.
•Depth can be controlled by depth skid.
•Spring loaded adjustable trailing board.
•Rotor speed standard 540 RPM to 235 P.T.O. RPM.
•3 point hitch cat.1.
3.Agricultural Cultivator Applications
•Rotary tiller is ideal for smooth & Speedy preparation for root crops, fodder crops, orchards & cash crops.
•Rotary tiller enhances the spoil fertility by mixing the residue of crops like cotton, sugarcane, wheat and paddy.
•Results in time & fuel saving. Lesser wear & tear ofthetractors as the soil preparation is accomplished in one or twopasses.
•Rotary tiller conserves soil moisture & helps watermanagement astilling can be done immediately after harvesting theprevious crop.
•Tillage depth varies according to moisture level of soil.
Rotary cultivator
4. Suitable for different field
5. Rotary Cultivator technical parameters
| Items | Unit | 1GQN-200H | 1GQN-230H | 1GQN-250H | Remarks |
| Dimension | cm | 95*223*132 | 95*253*132 | 95*273*132 | L*W*H |
| Overall power | kw | 40.5~51.5 | 55.1~66.2 | 66.2~88.2 | |
| Working efficiency | hm2/h | 0.33~0.67 | 0.47~0.86 | 0.60~0.93 | |
| Working width | cm | 200 | 230 | 250 | |
| Rotary blade form | / | IT245 | IT245 | IT245 | |
| Blade quantity | pc | 58 | 62 | 66 | |
| Total weight | kg | 430 | 490 | 540 | |
| Tillage depth | mm | 80-160 | 80-160 | 120-160 | |
| Vegetation coverage | / | >= 60% | >= 60% | >= 60% | |
| Pulverizer rate | / | >60% | >60% | >60% |
6. Choosing the suitable agricultural rotary cultivator
1.The choice of rotary cultivator models is mainly determined by your tractor type and local natural conditions.
2. Matching should be reasonable.
The rotary cultivator power consumption should be lower than the output power of the tractor, rotary tiller operating width should be able to cover about the tractor wheel rut.
components and parts

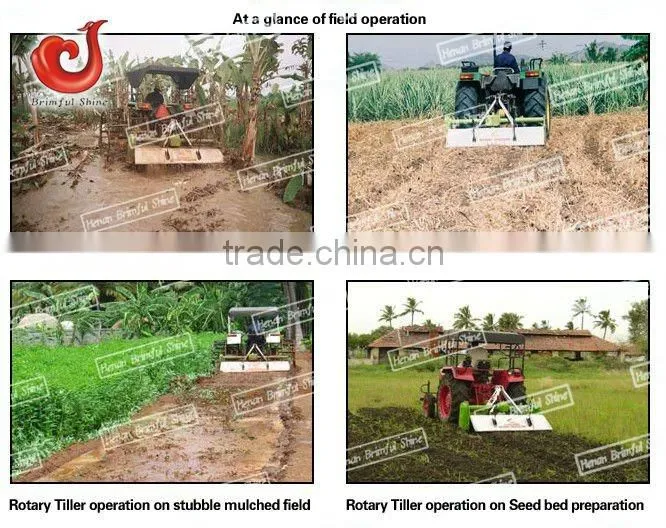

Rotary cultivator working pictures
Various Rotary Cultivator Blade
Rotary cultivator gear box

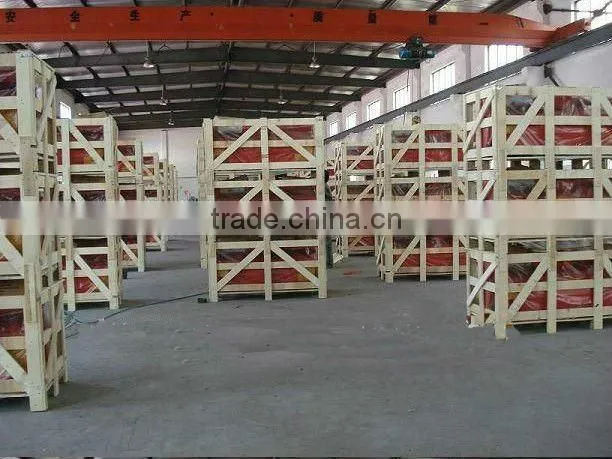

Rotary Cultivator Package
Engineers
•Quality Controllers
•Research & Development Experts
•Trade & Marketing Professionals
•Skilled & Semi Skilled Workers
YS is the right partner you are seeking for!
So let's cooperate and get mutual success!
