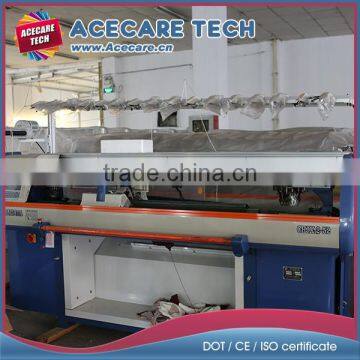

Flat Computerized Knitting Machine for shoe vamp

Gauge

12G  ,14G

Knitting range

28,36 ,52,60Inch

Knitting speed

It adopts 24 segments with the maximum velocity of 1.2m/s. AC servo motor control is adopted and controlled by refined feedback control and DSP with high-speed computation capability, for the purpose of controlling the IGBT to generate precise current output.

Knitting system

single head double system,single head three system

Knitting function

Needle reversal, double stitch, pointelle, intarsia, jacquard weave, front narrowing, back narrowing and other pattern knitting.

Needle bed shifting

AC servo motor control is adopted with the needle shifting range realizing 2 inches; in the meantime, it is of precise fine tuning functions.

Probe warning

Precise position probe warning.

Needle singal

Advanced encoder is used to observing the needle.

Needle reversal function

Triangle combined type design is adopted to realize the single/double synergy of needle reversal independently or simultaneously; or it is able to implement system knitting and realize high-srrective production.

Stitch density

It mainly adopts the stepper motor control and 24 segments density selection. Subdivision technology is adopted with its adjustable range is 0650 degree, which is able to control the size of cut piece accurately. It adopts closed-loop system to supervise the current position of motor.

Sinker system

Stepper motor control is able to adjust as per different fabrics, and finally realiz the multiple narrowing and widening effects. It is composed of left system and right system to adjust.

Batching system

Computer programs command, stepper motor control,24 segments tension selection with the adjustable range is 0-100 degree. It is able to select the moment of force to assist the roller for the purpose of providing effective tensile force for thick piece of clothes.

Color changing system

2*8 groups of yarn mouth configurations are equipped with two sides of four guide rails for the purpose of shifting the yarn mouth at any position of needle bed( standard configuration 2*8)

Comb device

it may adopt the scissor clamp device and comb device.
