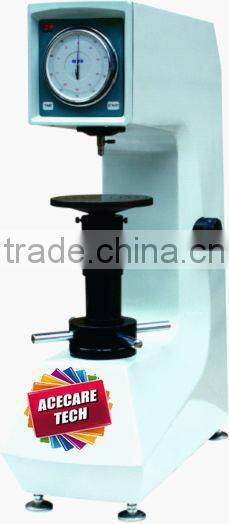

MODEL HR-150B ROCKWELL HARDNESS TESTER
Feature & Use
* High travel of test anvil in vertical direction and it is suitable for testing of large test piece
* Manual testing process, no need for electric controlling
* It's steady and reliable for testing of curved surface
* Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18
It's suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
Specifications
Measuring range: 20-88HRA, 20-100HRB, 20-70HRC
Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)
Max. height of test piece: 400mm
Depth of throat: 160mm
Min. scale value: 0.5HR
Dimensions: 548 x 326 x 1025mm
Weight: approx. 140kg
Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Diamond cone penetrator: 1 pc.
1/16" steel ball penetrator: 1 pc.
Rockwell standardized block: 5 pcs.
