Product Details:

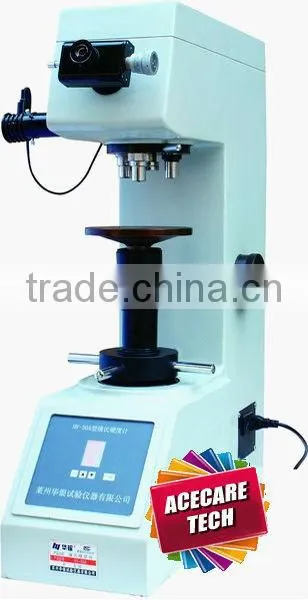

MODEL HV-50A VICKERS HARDNESS TESTER
Feature & Use:
* Frictionless loading shaft, high precision testing force
* Automatic testing process, no human operating error
* Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92
It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.
Specifications:
Measuring range: 5-2900HV
Test force: 9.807, 49.03, 98.07, 196.1, 294.2, 490.3N
(1, 5, 10, 20, 30, 50kgf)
Max. height of test piece: 180mm
Depth of throat: 125mm
Magnifications of the measuring system: 125X, 250X
Min. scale value of the optical micrometer: 1μm
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 580 x 260 x 730mm
Weight: approx. 90kg
Standard accessories:
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Diamond pyramid penetrator: 1 pc.
Vickers standardized block: 3 pcs.
