QC12K Shearing Machine

QC12K Shearing Machine thumbnail-1
QC12K Shearing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
WENAO
Model Number:
QC12K 8*3200
Contact Supplier Request Quote Chat Now
Nantong Wenao Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
nantong or shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name WENAO
Model Number QC12K 8*3200
Condition New
After-sales Service Provided Engineers available to service machinery overseas

Specifications

QC12K shearing Famous Brand sheet cutting machine
steel welded structure with stress-free
hydraulic drive
adjustable rake an

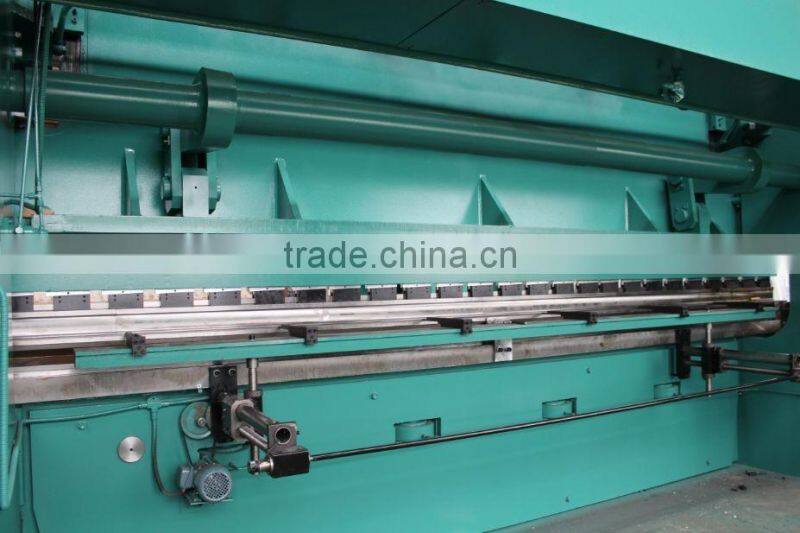

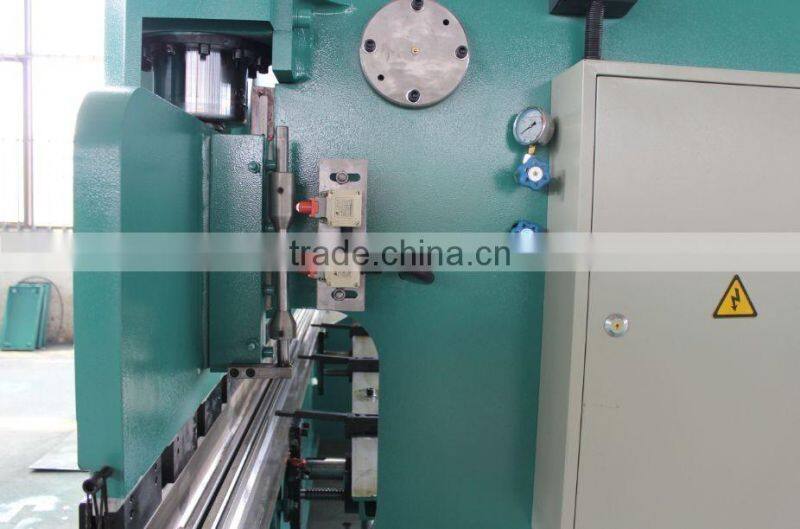

QC12K shearing machineQC12K shearing machineQC12K shearing machine

QC12K shearing machine



Detailed Product Description

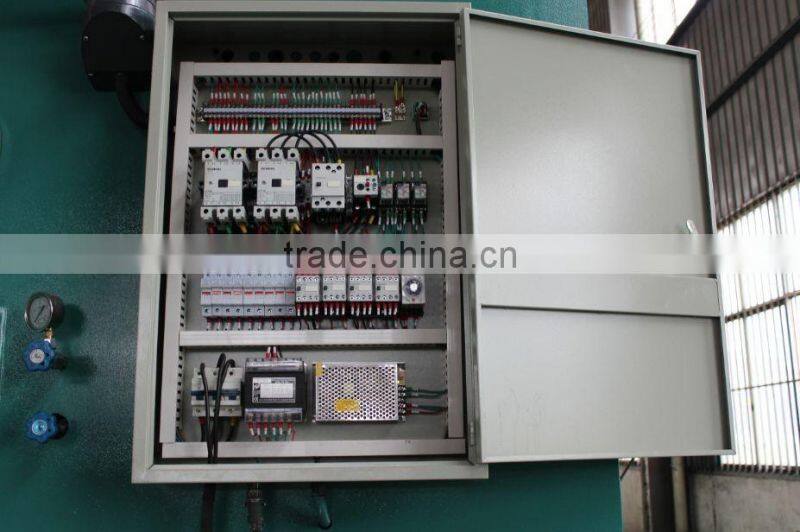

1.Simens motor schneider electrical

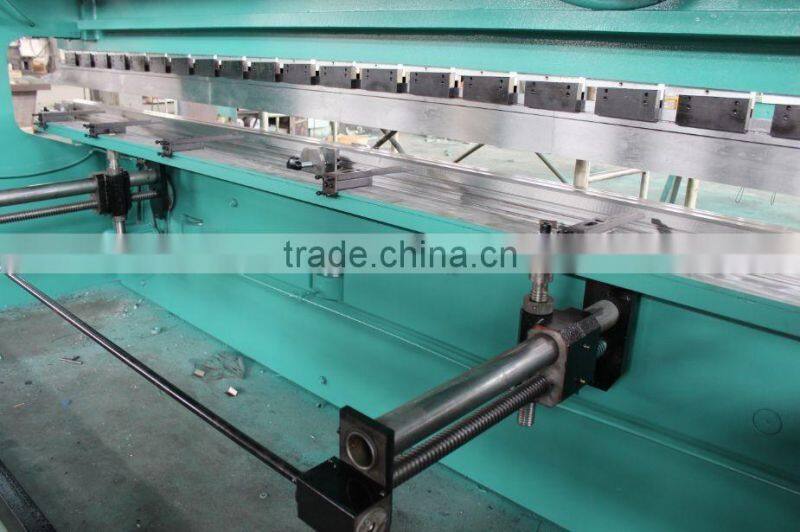

2.linear guideway ball screw backgauge
3.Italy value heidenhain linear
4.ray protection




 FEATURE OF       QC12K shearing machine

1.It’s very popular in metalworking market for cutting metal sheets



2.Various model of cutting 4-40mm thickness and 1000-9000mm length.



3.Steel welded construction, vibrating aging function



4.Shearing gap can be adjusted stepless at will and can do sectional cut

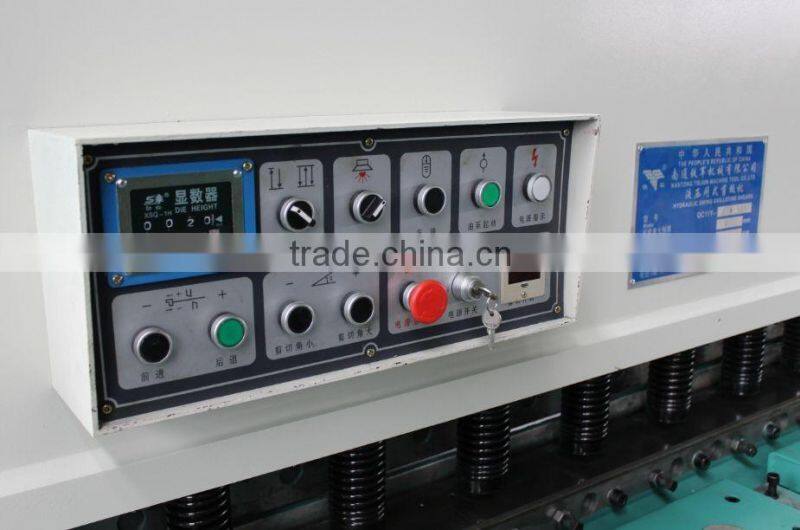

6.Motorized back gauge and cutting number can digital readout



7.Power break protection device to guarantee safety during maintenance



8. Debug and goodafter-sales service





Equipments can installed according to customers





  1. Digital readout:                   E10 or others
  2. Hydraulic system:               Bosch or others
  3. Pump:                                  Gear pump
  4. Electrics:                             Germany simens or schnider
  5. Seal:                                    DZ or NOK or VALQUA
  6. Straight-line guide:             HIWIN or ABBA
  7. Lighting alignment:             Famous brand
  8. Foot pedal:                         Karcon
  9. Punch and Die:                  Shanghai eryeC
  10. CNC                                     ZR41,DAC310,DAC360
  11. Motor                                   Simens or hengli



 Technical parameters

Parameter Specification Shearing Size Shearing Width Strokes Backgauge Rang Shearing Angle Working Table Height Main Power
  mm mm mm-1 mm (.) mm Kw
4*2500 4 2500 20 20-550 1°30′ 800 4
4*3200 4 3200 18 20-600 1°30′ 800 5.5
4*4000 4 4000 14 20-600 1°30′ 800 7.5
6*2500 6 2500 16 20-600 1°30′ 800 7.5
6*3200 6 3200 12 20-600 1°30′ 800 7.5
6*4000 6 4000 10 20-600 1°30′ 800 7.5
6*6000 6 6000 6 20-800 1°30′ 850 11
8*2500 8 2500 12 20-600 1°30′ 800 7.5
8*3200 8 3200 10 20-600 1°30′ 800 11
8*4000 8 4000 8 20-600 1°30′ 800 11
8*6000 8 6000 6 20-500 1°30′ 850 15
10*2500 10 2500 12 20-600 1°40′ 800 11
10*3200 10 3200 10 20-600 1°40′ 800 15
10*4000 10 4000 8 20-600 1°40′ 800 15
10*6000 10 6000 6 20-600 1°40′ 850 18.5
12*2500 12 2500 8 20-600 2° 800 15
12*3200 12 3200 6 20-600 2° 800 18.5
12*4000 12 4000 5 20-600 2° 800 18.5
12*6000 12 6000 4 20-500 2° 900 22
16*2500 16 2500 8 20-600 2°30' 800 18.5
16*3200 16 3200 6 20-800 2°30' 800 22
16*4000 16 4000 4 20-800 2°30' 850 30
16*6000 16 6000 4 20-800 2°30' 1000 37
20*2500 20 2500 5 20-800 2°30' 850 22
20*3200 20 3200 4 20-800 2°30' 900 30
20*4000 20 4000 4 20-800 2°30' 900 37
20*6000 20 6000 3 20-800 2°30' 1000 45
25*2500 25 2500 5 20-800 3° 850 30
25*3200 25 3200 4 20-800 3° 900 37
25*4000 25 4000 4 20-800 3° 1000 45
25*6000 25 6000 3 20-800 3° 1100 55
30*2500 30 2500 5 20-800 3° 1000 45
30*3200 30 3200 4 20-800 3° 1100 55
30*4000 30 4000 4 20-800 3° 1200 55
40*2500 40 2500 3 20-800 4° 1200 55
40*3200 40 3200 3 20-800 4° 1200 55
