2500mm CNC 4-rollers Hydraulic Plate Rolling Machine,4 Roller Rolling Machine in China

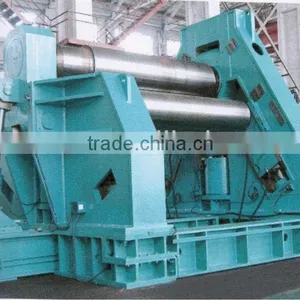

2500mm CNC 4-rollers Hydraulic Plate Rolling Machine,4 Roller Rolling Machine in China thumbnail-1

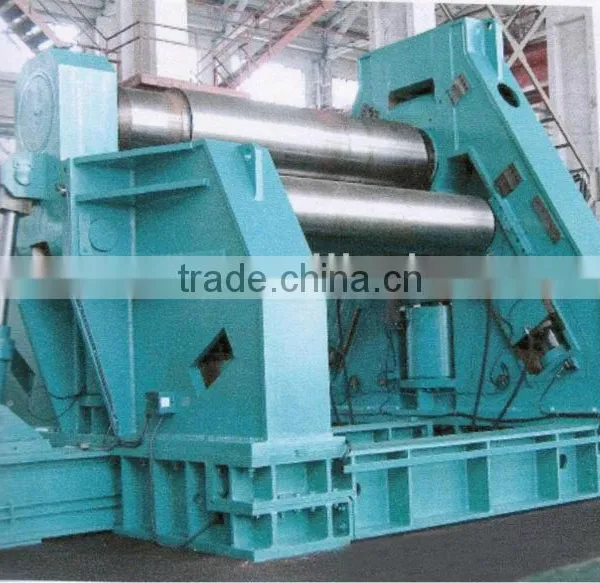

2500mm CNC 4-rollers Hydraulic Plate Rolling Machine,4 Roller Rolling Machine in China photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
WENAO
Contact Supplier Request Quote Chat Now
Nantong Wenao Import And Export Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
chinese main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name WENAO
Model Number W12NC-16x2500
Machine Type Roll Forming Machine
Raw Material Sheet / Plate Rolling
Material / Metal Processed Stainless Steel
Power Hydraulic
Automation Automatic
Extra Services Heat Treating
Certification Other, ISO 9001:2000 CE
After-sales Service Provided Engineers available to service machinery overseas
2500mm CNC 4-rollers hydraulic plate rolling machine,4 roller rolling machine  in China| 2500mm CNC 4-rollers hydraulic plate rolling machine,4 roller rolling machine  in China

MACHINE CHARACTERISTICS        SL FOUR ROLLER ROLLING
CNC control system                    MACHINE TWO STRUC-
Leveling easily                        TURAL CHARACTERISTICS
Once circle forming                    Arc swing of the side roller,leverage increased
Large cone rolling more convenient        pressure forces
Easy to correct the wrong edge           Proportional valves on both sides of the roll syn-chronization

FOLLOWING USERS APPLY TO USE THE MACHINE
First use of the user,because this is one of the most easy-to-operate machine
Operators lack of inspection requires high productivity
Requires high accuracy,improving quality
Want only one operator,reducing labor costs
Due to the large size of the board,production of high or for security reasons require handling device,
Feeding plate form,side and upper feeding device
Want to use CNC operations,reduce operational personnel action levels and other factors.

Model Max.rolling Max.pre-rolling Plate Diameter of upper roller Main motor
thickness thickness width   power
mm mm mm mm kw
W12NC-10x2000 10 9 2000 240 7.5
W12NC-12x2500 12 11 2500 280 11
W12NC-16x2500 16 13 2500 310 15
W12NC-20x2000 20 16 2000 300 15
W12NC-20x2500 20 18 2500 360 22
W12NC-25x2000 25 20 2000 350 22
W12NC-25x2500 25 20 2500 400 37
W12NC-30x2000 30 25 2000 300 37
W12NC-30x2500 30 25 2500 400 37
W12NC-30x3000 30 25 3000 470 45
W12NC-40x3000 40 32 3000 550 55
W12NC-50x3000 50 40 3000 610 55
W12NC-60x3000 60 50 3000 670 75
W12NC-70x3000 70 60 3000 730 75
W12NC-80x3000 80 65 3000 780 90
W12NC-90x3000 90 75 3000 820 90
W12NC-100x3000 100 80 3000 880 110

2500mm CNC 4-rollers hydraulic plate rolling machine,4 roller rolling machine in China
