Main features:
Steel welded structure, vibrating treatment to remove the inter stress, with high strength and good rigidity
1.Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision
2. Motorized-adjusting device of back gauge and ram stroke, fine adjusting by hand wheel, numerical display
3.Travel limit protection, full machine guarding with safety interlocker
4.Two cylinders controlling beams vertical moving
5.Mechanical torsion synchronization
6.Integration hydraulic system

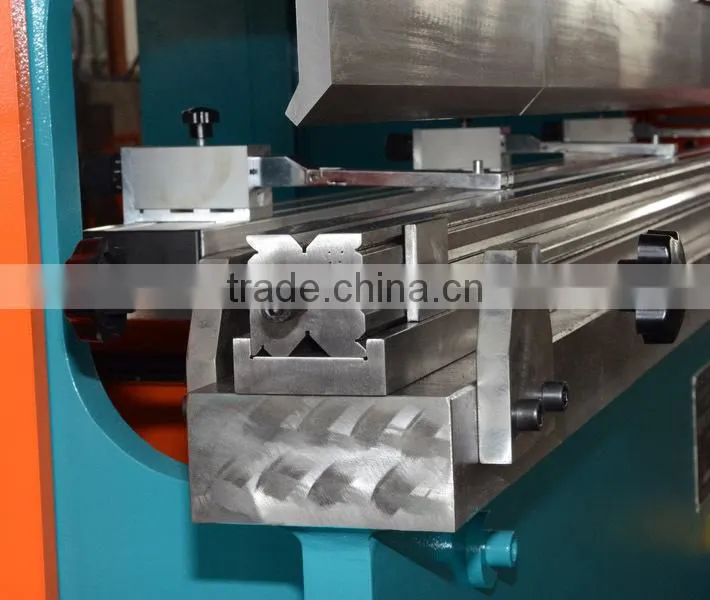

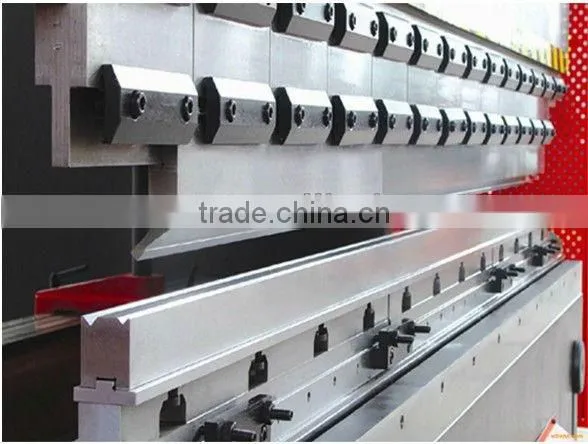

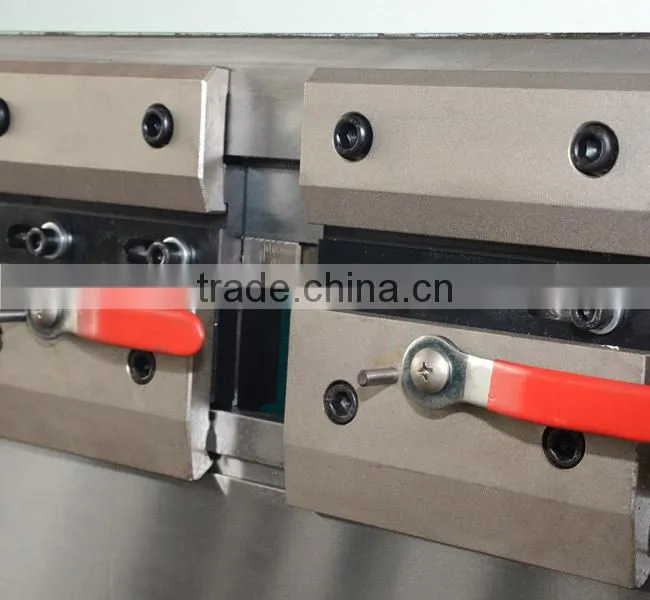

7.Standard punches and dies
8.Hanging arm control panel
9.Foot pedal with emergency stop
Our Advantage
1.This press brake bending machine adopts all-steel welded structure with high machine strength and good rigidity.
2.The press brake bending machine makes use of block structure ensuring reliable and stable operation.
3.Hydraulic upper transmission is stable and reliable. The oil cylinder placed on the slider can directly drive the slider to work.
4.The press brake bending machine features electric adjustment of stroke of upper slider, manual fine tuning and digital display.
5.The upper die of the press brake bending machine is equipped with deflection compensating mechanism, which can ensure high bending precision.
6.Mechanical stop and torsion axis are synchronized with high accuracy.
BRAKE BENDING TOOL QUALITY MEASURE
1). Quality assurance system
Company organizes the production as per ISO9001:2008 standard. From design control, process control, inspection control to delivery, installed and service, the whole process control. The running of quality system performs quality manual, procedure files, work instruction and related technical and management standard together with standard and regulation layout by company strictly. Quality system realizes whole screw and whole procedure control completely.
2). Quality assurance procedure for important out-source parts.
a. Mainly out-sourced parts: control system, cylinder, hydraulic components, motor, pump etc.
b. After evaluation, select qualified suppliers as business partners.
c. Purchasing according to plan, purchase contract, quality requirement, technical standard and inspection standard.
d. Receiving inspection on site either in supplier or our company with related technicians.
BRAKE BENDING TOOL TECHNICAL SERVICE &. OPERATOR TRAINNING
1). Design examine
When designing and manufacturing the machines, manufacturer should be as per ISO9001 standard strictly to assure the system be performed effectively. According to contract requirement, to supply quality eligible, meet the professional design standard.
2). Operator training
During the installing and commissioning period, supplier arrange time to training buyer’s operator including operation, maintenance etc. supplier should solve the buyer technical questions about operation, maintenance and technics etc. Operator trained by supplier should do his commitment independently.
BRAKE BENDING TOOL MACHINE QUALITY
Machine design and manufacture performs GB/T-14349 and comply with the requirement of quality, specification and characters herein this technical regulation.
Guarantee period start from the day the machine acceptance report signing. Period would be one year.
Technical documents which supplier in charge of furnish and handed to use should be consist with technical regulation, and throughout technical, technics, produce, installation and setting.
BRAKE BENDING TOOL INSTALLATION, SETTING &. AFTER-SALE-SERVICE
1). Installation and setting;
Manufacturer is in charge of the machines installation &. commissioning. User is request for in charge of the round tickets &.boarding &. necessary salary of the engineers.
2). After-sale-service;
Manufacturer will in charge of the technical service for the whole using life of the machine.
Press brake technical details:
Example: How to count bending power?
8(Ratio) x 2 mm(thickness) x 2.5 meter (width)= 40.
so, you need WC67Y-40T/2500 press brake to bend 2 mm thick x2500mm width mild steel.
•How to get a accurate quotation from us ?
1,tell us metal thickness.
2,tell us metal widthness.
• How to check shipping cost from China to my country?
Very simple,tell us your city or port.
• How to check imported charges or tax ?
Call your l them machine HS code.
Press brake and rolling machine are 84622990. shearing machine is 84623990.
• How to see our machine in your local place?
We have sold lots of machines to the world,in most situation,you can see our machine
in your country,however,we can not promise 100%,so,confirm with us by email.
• How to repair&maintain our machine ?
Generally,the hydraulic machine is not easy to break.even though the problem occur,it is small problem.
we can solve it through email and video.
• do you offer commissioning service ?
yes,we can offer commissioning service,but,the buyer need to afford plane tickets.
• Do you offer teaching&training ?
yes, we prefer that you arrange your worker to China. or our engineer go to your country.
• what policy for broken parts?
within one year,we offer free parts.
if beyond one year,you need to buy by factory cost
Detailed Product Description
1. Export quality license by government
2. SME factory control cost easy focus on quality
4. CE/ISO
3. English video manual
FEATURE OF CNC hydraulic press brake/automatic bending machine/plate press brake/press brake bending machine
1.It’s very popular in metalworking market for bending metal sheet
2.Various model of bending 4-40mm thickness and 1000-9000mm length.
3.Steel welded construction, vibrating aging function
4.Servo backgauge and RV working table comensation is optional
6.Motorized back gauge and cutting number can digital readout ,E10 or CNC100
7.Power break protection device to guarantee safety during maintenance
8. Debug and goodafter-sales service
CHARACTOR:
1)whole steel-welded,standard upper and lower dies,hydraulic transmission system,foot pedal with emergency stop.
2)The machine equips with DRO(digital readout) system to display the values of ram and backguage,(ball screws),and equip the side and back guard.to equip CNC system,you can choose the system E-20+ CNC(made in China) or Delem 51 system (from Netherlands),All price include the servo-motor, To equip with light curtains for rear of press brake,you can choose the system from China or sick from Germany.
All include the servo-motor.
To equip with light curtains for rear of shearing machine,you can use system from China madeor sick from Germany.
TECHNOLOGY DATA OF CNC hydraulic press brake
| Nominal pressure | Length of working table | Distance between uprights | Throat dephts | Ram stroke | Motor power | |
| Specification | KN | mm | mm | mm | mm | KW |
| 40/2200 | 400 | 2200 | 1650 | 200 | 100 | 4 |
| 40/2500 | 400 | 2500 | 1900 | 200 | 100 | 4 |
| 63/2500 | 630 | 2500 | 1900 | 250 | 120 | 5.5 |
| 63/3200 | 630 | 3200 | 2570 | 250 | 120 | 5.5 |
| 80/2500 | 800 | 2500 | 1900 | 320 | 120 | 5.5 |
| 80/3200 | 800 | 3200 | 2560 | 320 | 120 | 5.5 |
| 80/4000 | 800 | 4000 | 2900 | 320 | 120 | 5.5 |
| 100/2500 | 1000 | 2500 | 1900 | 320 | 120 | 7.5 |
| 100/3200 | 1000 | 3200 | 2560 | 320 | 120 | 7.5 |
| 100/4000 | 1000 | 4000 | 2960 | 320 | 120 | 7.5 |
| 125/2500 | 1250 | 2500 | 1900 | 320 | 120 | 7.5 |
| 125/3200 | 1250 | 3200 | 2560 | 320 | 120 | 7.5 |
| 125/4000 | 1250 | 4000 | 2960 | 320 | 120 | 7.5 |
| 160/2500 | 1600 | 2500 | 1900 | 400 | 200 | 11 |
| 160/3200 | 1600 | 3200 | 2540 | 400 | 200 | 11 |
| 160/4000 | 1600 | 4000 | 2940 | 400 | 200 | 11 |
| 160/6000 | 1600 | 6000 | 4600 | 400 | 200 | 11 |
| 200/2500 | 2000 | 2500 | 1900 | 400 | 200 | 15 |
| 200/3200 | 2000 | 3200 | 2540 | 400 | 200 | 15 |
| 200/4000 | 2000 | 4000 | 2940 | 400 | 200 | 15 |
| 200/6000 | 2000 | 6000 | 4600 | 400 | 200 | 15 |
| 250/2500 | 2500 | 2500 | 1900 | 400 | 250 | 18.5 |
| 250/3200 | 2500 | 3200 | 2540 | 400 | 250 | 18.5 |
| 250/4000 | 2500 | 4000 | 2940 | 400 | 250 | 18.5 |
| 250/6000 | 2500 | 6000 | 4600 | 400 | 250 | 18.5 |
| 300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 22 |
| 300/4000 | 3000 | 4000 | 2930 | 400 | 250 | 22 |
| 300/6000 | 3000 | 6000 | 4600 | 400 | 250 | 22 |
| 400/3200 | 4000 | 3200 | 2520 | 400 | 300 | 30 |
| 400/4000 | 4000 | 4000 | 2920 | 400 | 300 | 30 |
| 400/6000 | 4000 | 6000 | 4600 | 400 | 300 | 30 |
| 500/4000 | 5000 | 4000 | 2920 | 400 | 350 | 37 |
| 500/6000 | 5000 | 6000 | 4600 | 400 | 350 | 37 |
| 600/6000 | 6000 | 6000 | 4600 | 400 | 350 | 45 |
| 800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 55 |
| 1000/6000 | 10000 | 6000 | 4600 | 600 | 500 | 75 |
