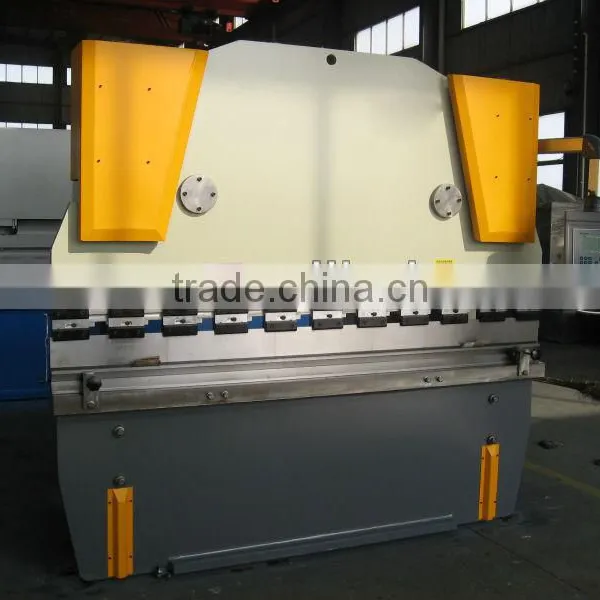

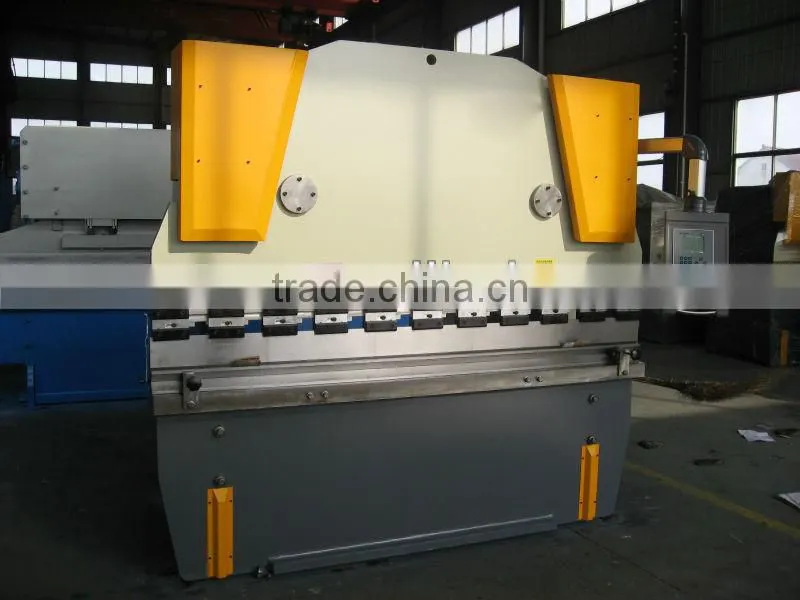

press brakes /100ton press brake/400t hydraulic press brake
- 50 Set / Sets per Month
- any port of China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Jiangsu, China | Brand Name: | WENAO | Model Number: | WC67K-100/3200 |
| Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Hydraulic top-drive,steadiness and reliabilityHigh precision
18 months warranty
CE certificatio
Press Brake:
Main features:
Steel welded structure, vibrating treatment to remove the inter stress, with high strength and good rigidity
1.Hydraulic top-drive, steadiness and reliability, mechanical stop, steel torsion bar to maintain synchronization, high precision
2. Motorized-adjusting device of back gauge and ram stroke, fine adjusting by hand wheel, numerical display
3.Travel limit protection, full machine guarding with safety interlocker
4.Two cylinders controlling beams vertical moving
5.Mechanical torsion synchronization
6.Integration hydraulic system
7.Standard punches and dies
8.Hanging arm control panel
9.Foot pedal with emergency stop
Specification | Nominal Pressure | Length of working table | Distance between uprights | Throat dephts | Ram stroke | Motor power |
KN | mm | mm | mm | mm | KW | |
WC67Y-40/2200 | 400 | 2200 | 1650 | 200 | 100 | 4 |
WC67Y-40/2500 | 400 | 2500 | 1900 | 200 | 100 | 4 |
WC67Y-63/2500 | 630 | 2500 | 1900 | 250 | 120 | 5.5 |
WC67Y-63/3200 | 630 | 3200 | 2570 | 250 | 120 | 5.5 |
WC67Y-80/2500 | 800 | 2500 | 1900 | 320 | 120 | 5.5 |
WC67Y-80/3200 | 800 | 3200 | 2560 | 320 | 120 | 5.5 |
WC67Y-80/4000 | 800 | 4000 | 2900 | 320 | 120 | 5.5 |
WC67Y-100/2500 | 1000 | 2500 | 1900 | 320 | 120 | 7.5 |
WC67Y-100/3200 | 1000 | 3200 | 2460 | 320 | 120 | 7.5 |
WC67Y-125/3200 | 1250 | 3200 | 2450 | 320 | 120 | 7.5 |
WC67Y-125/4000 | 1250 | 4000 | 2960 | 320 | 120 | 7.5 |
WC67Y-160/3200 | 1600 | 3200 | 2445 | 400 | 200 | 11 |
WC67Y-160/4000 | 1600 | 4000 | 2940 | 400 | 200 | 11 |
WC67Y-160/6000 | 1600 | 6000 | 4600 | 400 | 200 | 11 |
WC67Y-200/2500 | 2000 | 2500 | 1900 | 400 | 200 | 15 |
WC67Y-200/3200 | 2000 | 3200 | 2540 | 400 | 200 | 15 |
WC67Y-200/6000 | 2000 | 6000 | 4600 | 400 | 200 | 15 |
WC67Y-250/2500 | 2500 | 2500 | 1900 | 400 | 250 | 18.5 |
WC67Y-250/3200 | 2500 | 3200 | 2530 | 400 | 250 | 18.5 |
WC67Y-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 22 |
WC67Y-300/6000 | 3000 | 6000 | 4600 | 400 | 250 | 22 |
WC67Y-4000/3200 | 4000 | 3200 | 2520 | 400 | 300 | 30 |
WC67Y-400/4000 | 4000 | 4000 | 2920 | 400 | 300 | 30 |
WC67Y-500/4000 | 5000 | 4000 | 2920 | 400 | 350 | 37 |
WC67Y-500/6000 | 5000 | 6000 | 4600 | 400 | 350 | 37 |
WC67Y-600/6000 | 6000 | 6000 | 4600 | 400 | 350 | 45 |
WC67Y-800/6000 | 8000 | 8000 | 4600 | 500 | 400 | 55 |
WC67Y-1000/6000 | 10000 | 10000 | 4600 | 600 | 500 | 75 |
