Specifications
Hydraulic Press Machine in China1.easy to operate
2.high qulity
3.CE certification
Hydraulic Press Machine in China | Hydraulic Press Machine in China | Hydraulic Press Machine in China | Hydraulic Press Machine in China
Application:
Sheet metal stretching, blanking, stamping and all stretch flange forming process, but also for correction, press-fit technology, widely used in the following industries:
Auto parts: body panels, brake, fuel tank, chassis, axle housing, bumper
Kitchen appliances: sink, a pot, stainless steel appliances, and other containers.
Other: tractors, motorcycles, aerospace, aviation, chemicals, instruments, machine tools
Advantages:

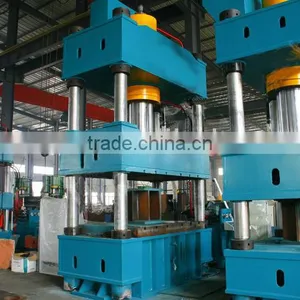

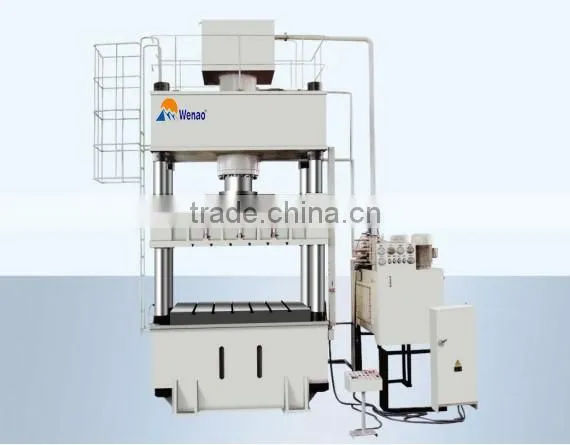

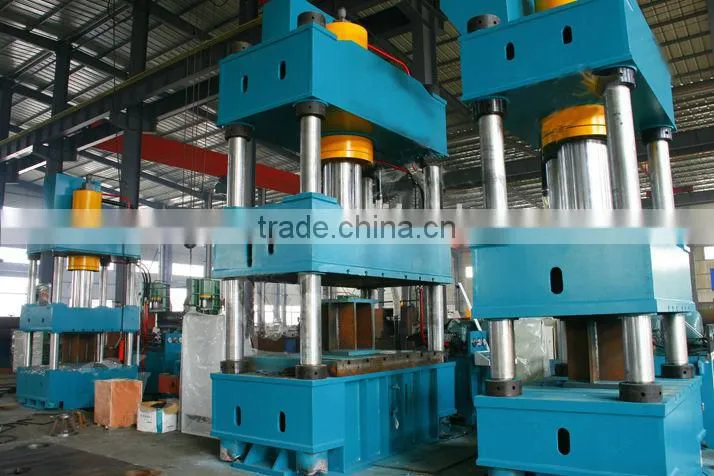

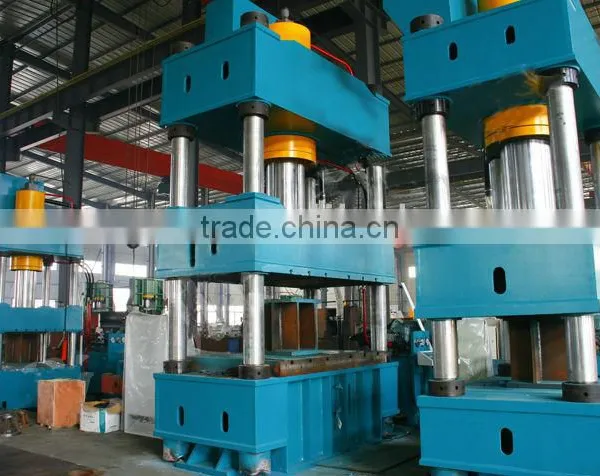

1.Simple 4-column structure and reliable operating system
2.With movable working table
3.Easy and practical to change die
4.Uses PLC control to make sure that operating sensitive and reliable
5.Mechanical, electrical and hydraulic integration
Product Description:
The hydraulic press use optimized design of computer with international advanced level. The frame structure, rigid, high precision, strong resistance to side load capacity. Corners directions with guide,high guiding precision New fuel tank sealing components, high reliability, long life.
The hydraulic press have fast working speed,improve the production efficiency. The working pressure and stroke can be adjusted according to process requirements, easy to operate.
Our hydraulic have low noise which can replace the mechanical press.
Using non-contact displacement sensor or switch, improve the reliability and accuracy of stroke control.
Mechanical, electrical, hydraulic integration of safety devices, security is superior.
TECHNICAL SPECIFICATIONS:
| Item | Unit | YLS-100T | YLS-200T | YLS-315T | YLS-400T | YLS-500T | YLS-630T | YLS-800T | YLS-1000T | |
| Nominal force | KN | 1000 | 2000 | 3150 | 4000 | 5000 | 6300 | 8000 | 10000 | |
| Return force | KN | 160 | 240 | 600 | 500 | 900 | 850 | 1000 | 1350 | |
| Slide stroke | KN | 510 | 710 | 800 | 800 | 900 | 900 | 1000 | 1000 | |
| Open height | mm | 800 | 1120 | 1250 | 1250 | 1500 | 1500 | 1800 | 1800 | |
| Hydraulic cushion nominal force | kn | 400 | 630 | 1250 | 1250 | 2000 | 1250*2 | 1600*2 | 2000*2 | |
| Hydraulic cushion return force | kn | 147 | 250 | 360 | 360 | 780 | 360*2 | 600*2 | 580*2 | |
| Hydraulic cushion stroke | mm | 200 | 250 | 300 | 300 | 350 | 350 | 400 | 400 | |
| Slide speed | Idle stroke | mm / S | 100 | 150 | 100 | 130 | 120 | 130 | 150 | 130 |
| Work | mm / S | 7-15 | 5-12 | 5-12 | 4-10 | 7-15 | 5-12 | 5-12 | 5-12 | |
| Return stroke | mm / S | 85 | 95 | 60 | 70 | 80 | 85 | 95 | 85 | |
| Hydraulic cushion speed | Up | mm / S | 35 | 38 | 30 | 30 | 37 | 30 | 30 | 30 |
| Return | mm / S | 100 | 95 | 100 | 100 | 95 | 105 | 85 | 105 | |
| Working table | LR | mm | 690 | 1000 | 1260 | 1250 | 1400 | 1600 | 2200 | 2500 |
| Effective size | Front-back | mm | 630 | 940 | 1160 | 1250 | 1400 | 1600 | 1600 | 1800 |
| Motor Power | KW | 7.5 | 15 | 22 | 22 | 44 | 44 | 60 | 66 | |

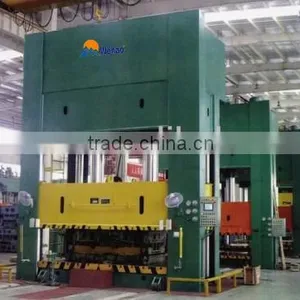

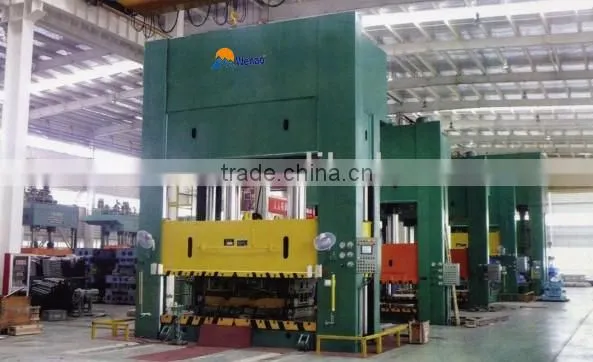

YLS27 Series
YLS32 series

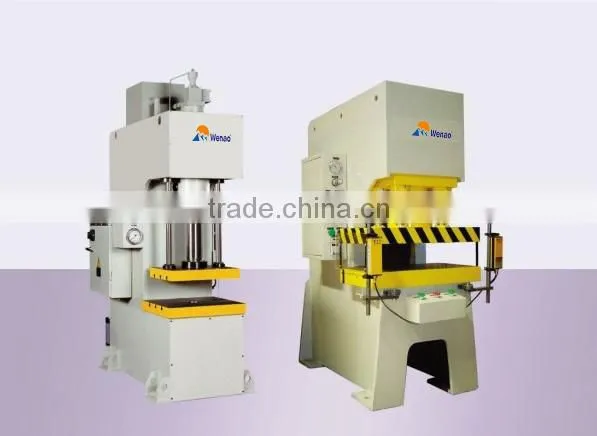

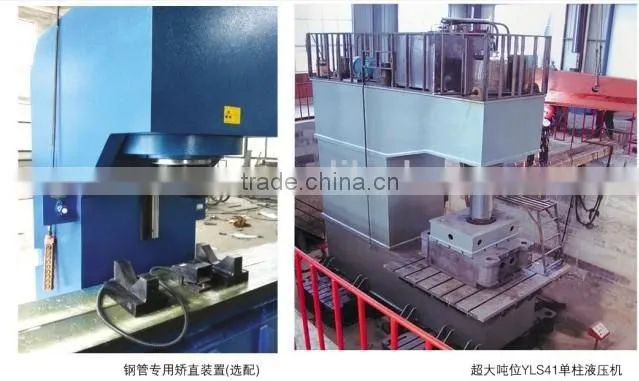

YLS41 Series single column press-fit hydraulic press
YLS27-500T
If you want to know more details,feel free to contact me.
And we need to know about material, Nominal force , open height, etd. if you can give me the workpiece, it will be great for us to select the most suitable model.
