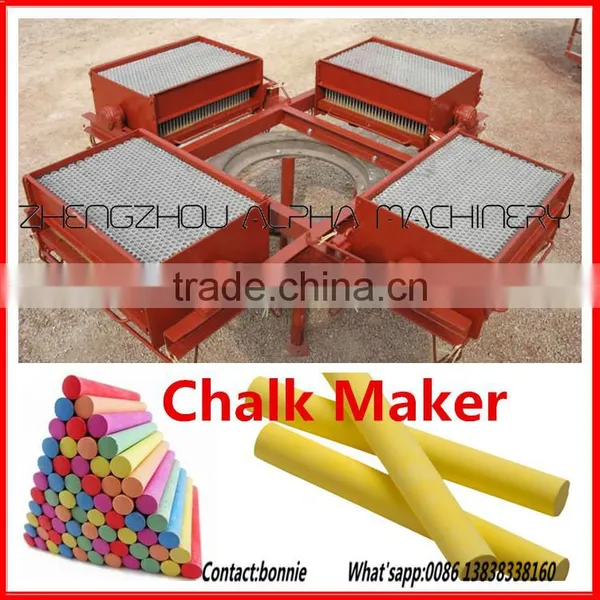

Blackboard chalk maker making machine / chalk forming machine

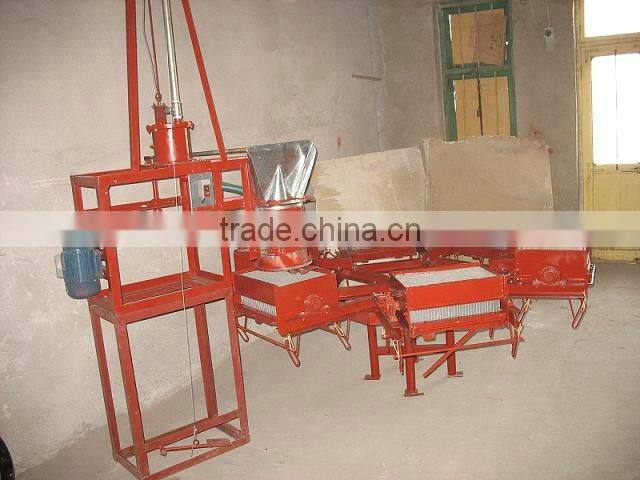

1.Introduction of chalk forming machine

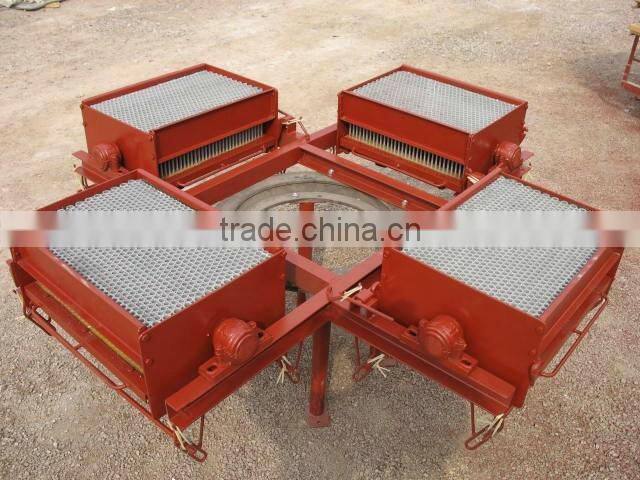

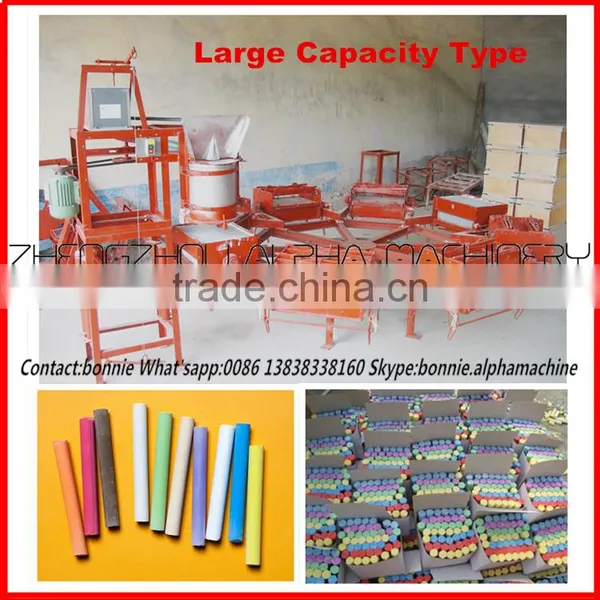

1,The machine is supplied water automatically, mixing material by electric mixer,filling mould, take off mould, all the work are in a round assembly-line.
2,The work efficiency is higher than the traditional machine. it can save 30% material, and the rate of eligible product is 99%.
3,The chalk size and shape can be customized.
2. How to make chalk

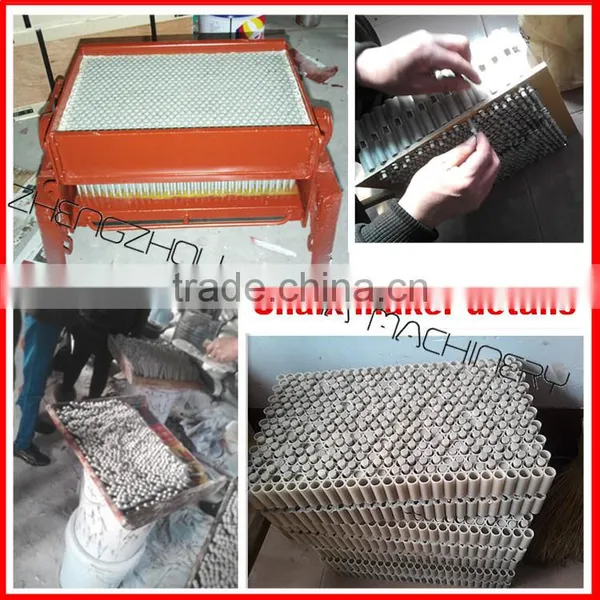

1). Mold evenly brush oil, brush back and forth with a wide brush, brush the new mold should be more oil.
2). The mold plate moving up and down a few times, the screw top and the bottom plate comes into contact.
3). Turn on the water, turn on the water with a movable foot switch pedal to pedal in the end, until the water in the water last. (First mold first feed, add water)
4). Addition, the quantitative good gypsum powder into the mixing bucket.
5. Mixing, stirring for 10-20 seconds to start the motor.
6). Put the pulp, put a good brush oil stirred to die bottom of the barrel, hit the switch to open the pulp slurry was stirred well into the mold until the stream last.
7). Calibrating with a plastic scraper to scrape the pulp mold hole, scrape out the remaining pulp mold mouth gelling.

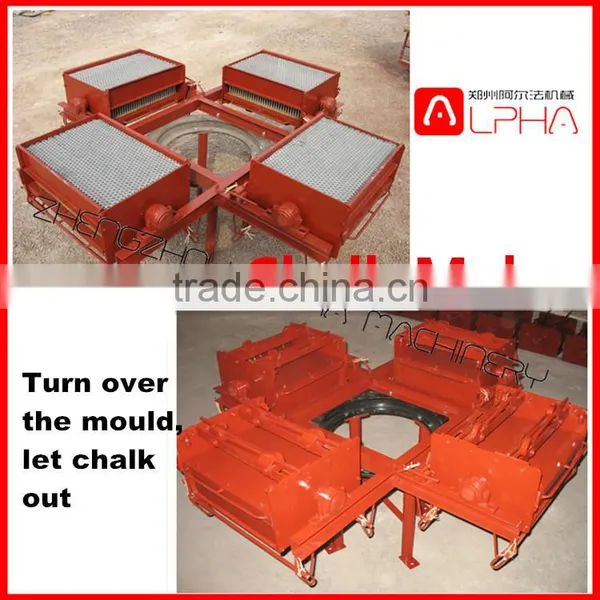

8). A mold, a new mold die not too late. Chalk can feel a little hard to top 2-5 mm, 1 to 2 minutes over again ejection.
3.Features of chalk forming machine

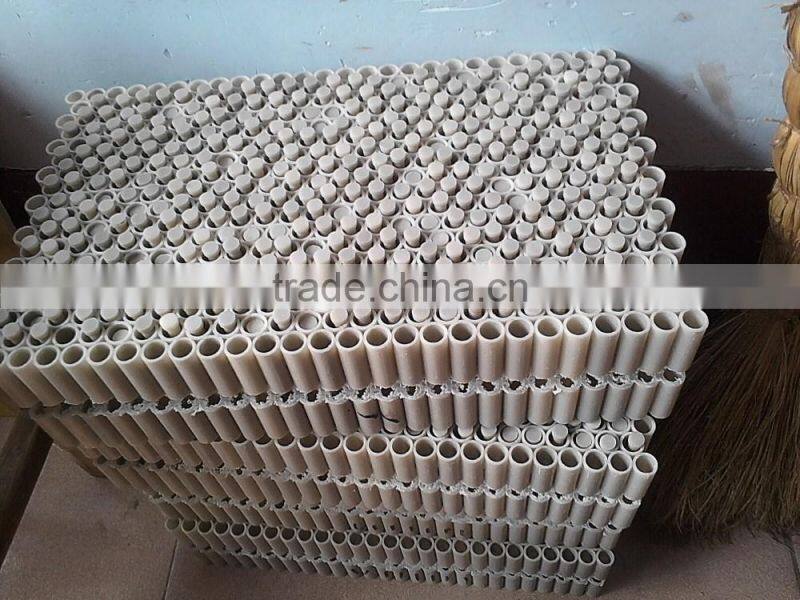

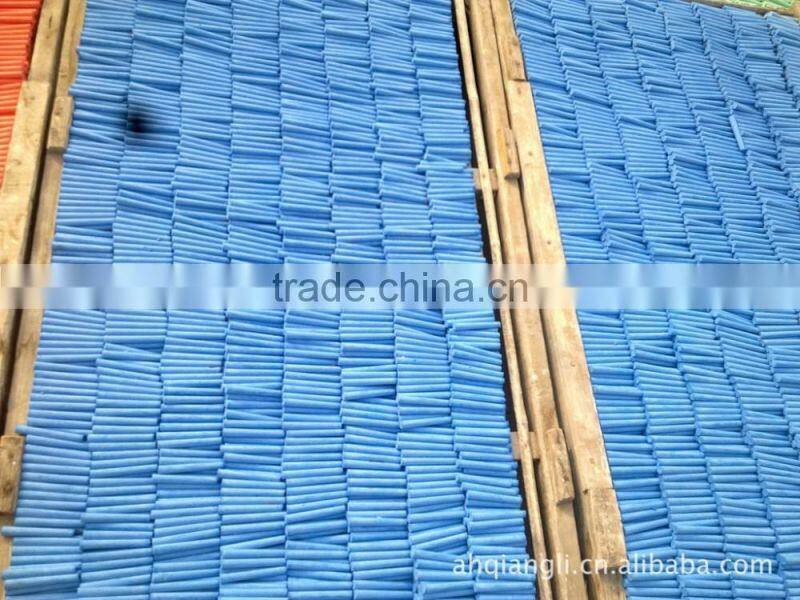

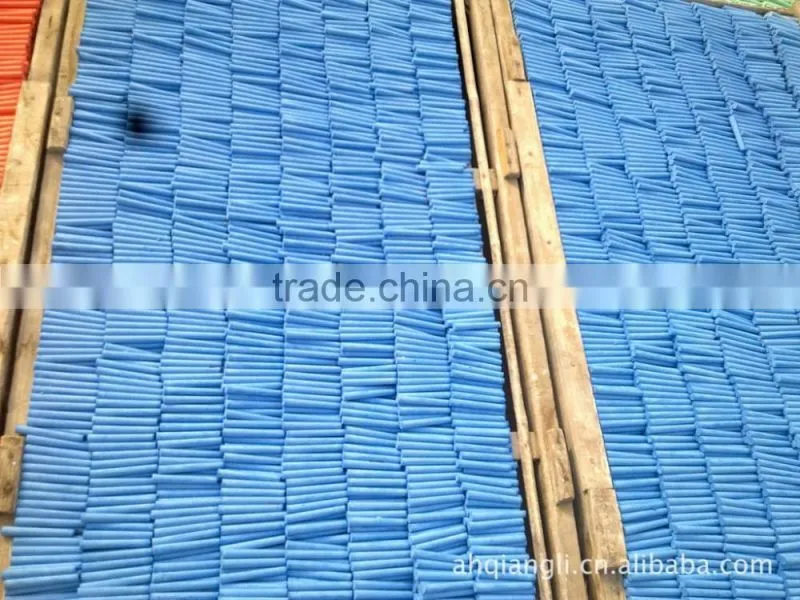

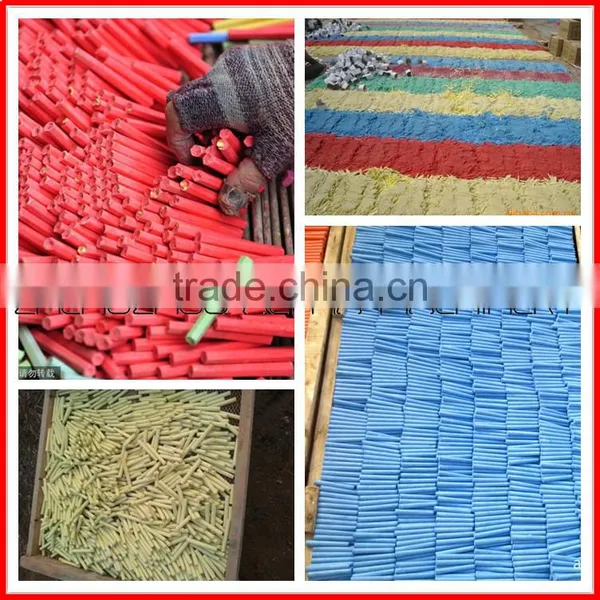

1.The newly-produced chalk is smooth and nice-looking.
2.Decreased worker's labor intensity, improved many times of efficiency.

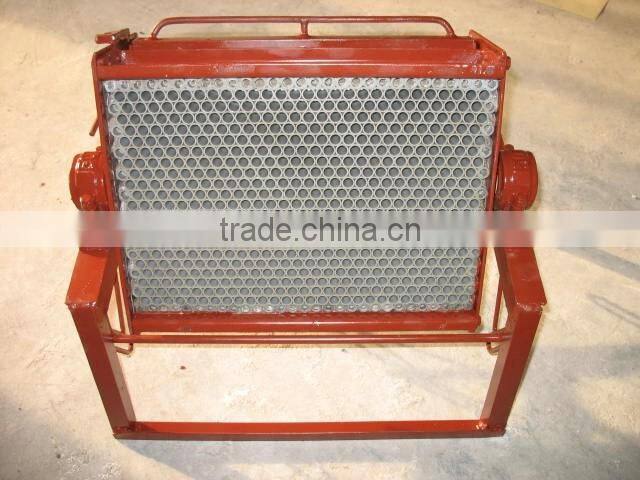

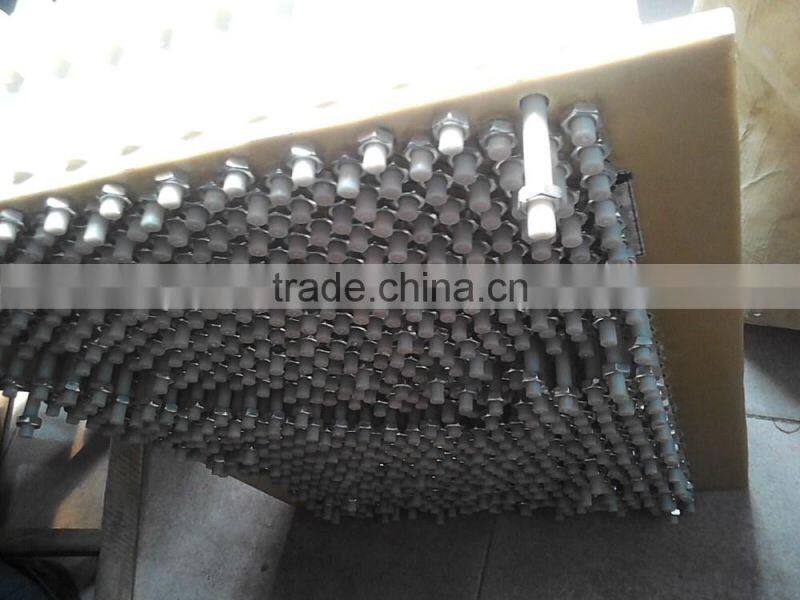

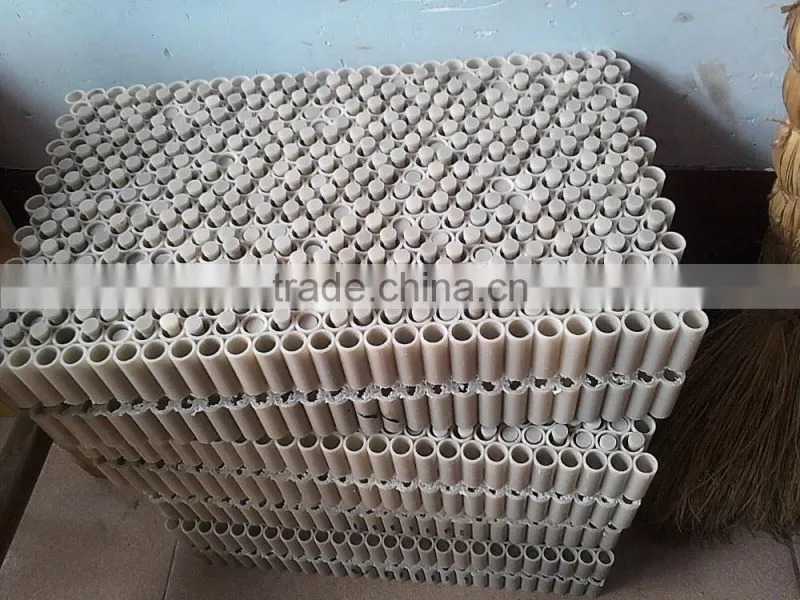

3.One pattern can contain 800 pieces of chalks.
4.Chalk types have the round ones, the square ones, the hexagon ones, and so on
4.Parameter of chalk forming machine
Model |
AM-FB2 |
AM-FB4 |
AM-FB6 |
AM-FB8 |
Mould(Pcs) |
2 |
4 |
6 |
8 |
Capacity(pcs/h) |
8000-1,2000 |
1,2000-2,4000 |
2,4000-3,2000 |
3,2000-4,8000 |
Operator |
1 |
1 |
2 |
3 |
Packing Size(M3) |
1.6 |
2.5 |
2.5 |
3 |
G.W.(kg) |
260 |
350 |
600 |
800 |
