Full Automatic Tea Bag Packaging Machine

Full Automatic Tea Bag Packaging Machine photo-1
US$ 300,000 - 400,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Food, Textiles
Packaging Type:
Bags, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin and so on
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Food, Textiles
Packaging Type Bags, Stand-up Pouch
Packaging Material Paper, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220v/380v
Power 10kw
Place of Origin Henan, China
Brand Name taizy
Model Number tz-200
Dimension(L*W*H) 3.5x1.5x2.4m
Weight 4000kg
Certification ISO CE
After-sales Service Provided Engineers available to service machinery overseas

Full Automatic tea bag packaging machine   0086-13503826925

the introduction of   tea bag packaging machine

1.It has necessary protection measures, such as short circuit protection, overloading protection, creepage protection, etc.

2.The complete machine is controlled and coordinated by PLC.

3.It is simple to set and control the temperature of all heating parts.

4.It is simple to set the counting number of output chute and control the packing of boxes.

5.It will give alarm if thread or packing materials are absent.

6.It has the counting function of batch quantity. And it is easy to return the number to “zero.

7.The square marks of envelope paper are identified to keep the traction and cutting of fixed-length.

8.The square marks of tag paper are identified to keep the traction and cutting of fixed-length.

9.It has the function of jog on machine.

10.It has 2 emergency buttons to stop the machine if emergency happens.



Technical data of    tea bag packaging machine







l Output:120±10 (bag/min)







Bag Capacity:Max. 10cm3(adjustable)







Degree of accuracy:±5%







Bag dimension: 45mm×60mm







Tag dimensions: 28mm×32mm(hard tag)







Length of thread: 148mm±5mm



Size of staple:13mm (5mmafter folding)







Volume of hopper:13dm3







Power supply:3 phases, 380V, 50HZ







Power: total power 10KW, max. power 8kw







Net weight:4000KG







Gross weight: 5000KG







Dosage system:protection structure which keeps impurity away







Compressed air:6atm(bar)/300L/min







Overall size:3.5m(L)×1.5m(W)×2.4m(H)

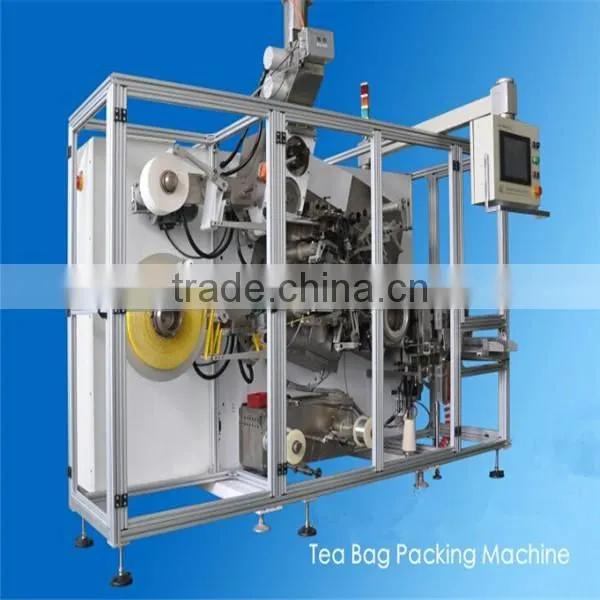

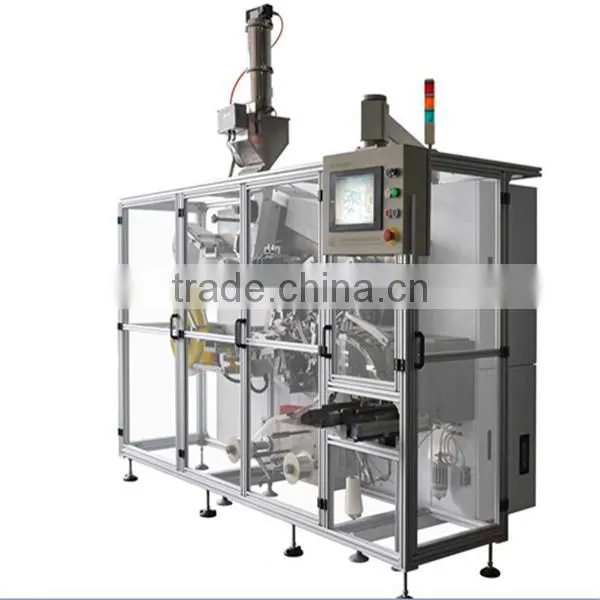

 the picture of      tea bag packaging machine

Full Automatic tea bag packaging machineFull Automatic tea bag packaging machine

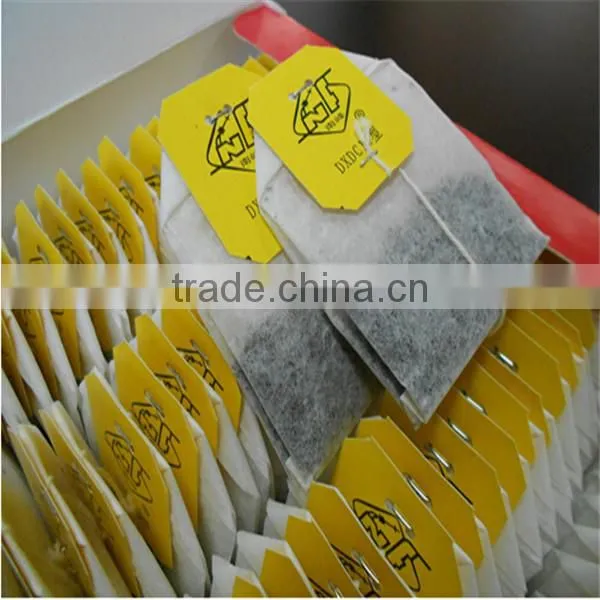

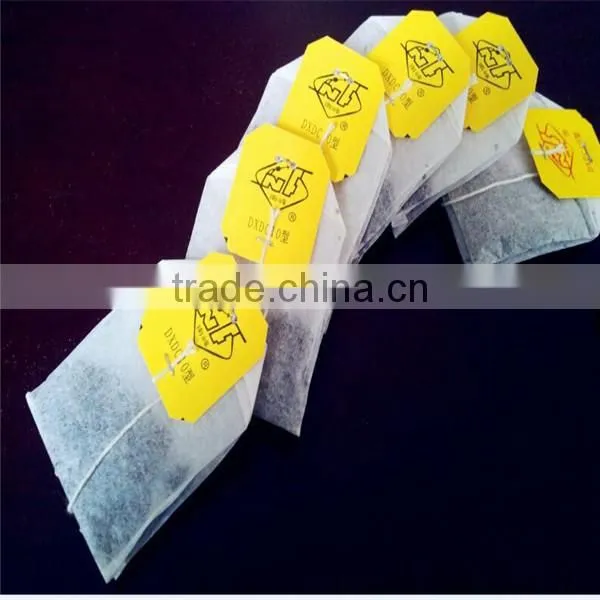

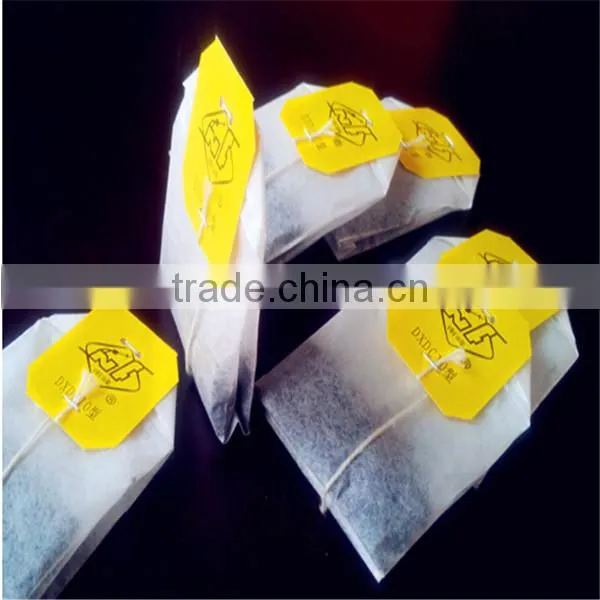

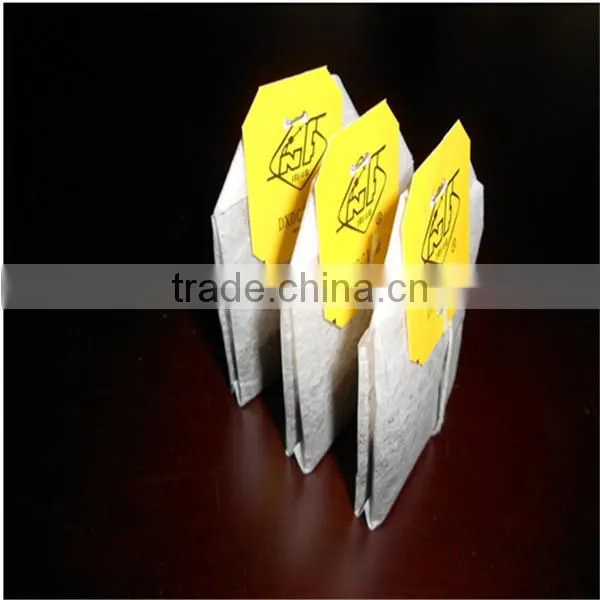

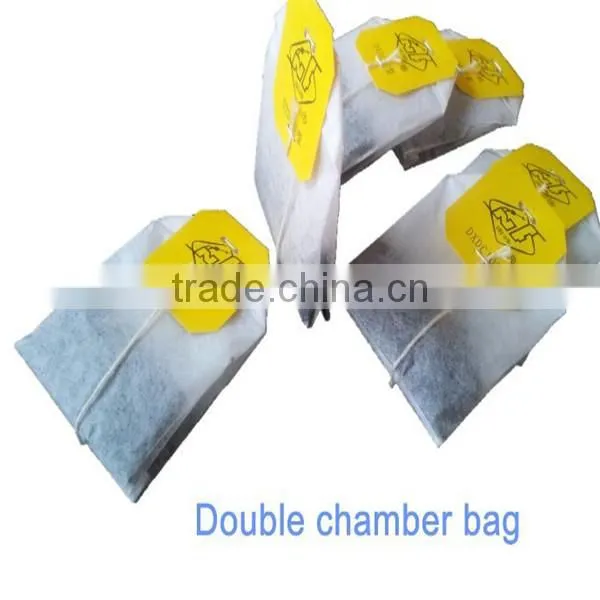

the product of   two chamber tea bag packing machine

Full Automatic tea bag packaging machineFull Automatic tea bag packaging machineFull Automatic tea bag packaging machineFull Automatic tea bag packaging machineFull Automatic tea bag packaging machine

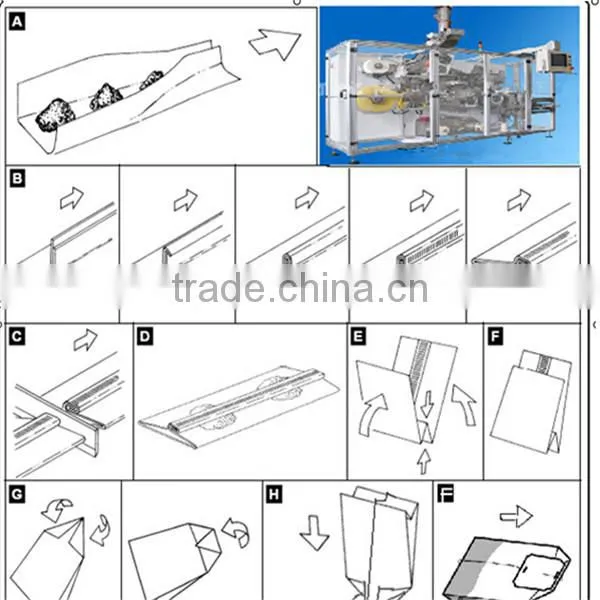

the steps of   tea bag packaging machine

Full Automatic tea bag packaging machine

Full Automatic tea bag packaging machine
