2014 hot sale and good quality Punching Machine

FOB Price

USD $20,000 - $30,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	Normal
Power Source	Hydraulic	Place of Origin	Henan, China
Brand Name	taizy	Model Number	tz
Voltage	220v-460v	Power(W)	55w
Weight	8t	Dimension(LWH)	3.2x3x2.6m
Certification	ISO	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

2014 hot sale and good quality Punching Machine 0086-13503826925

TZ punching machine performance:

1. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life .

2. Steel-welded frame, high rigidity and less deformation Compact .

3. Thick plates and large columns provide you with the stable platform you need for your demanding application.

4. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

5. Use double safety valve to ensure the accurate implementation of the clutch instruction.

6. Optional photoelectric protector, feeder and other optional accessories are available for Composition nc step blunt press .

7. Press-collapse block device, to ensure safety in press operation.

punching machine parameter:

NO	ITEMS	PARAMETER	UNIT
1	Nominal force	800	kn
2	Slide biock stroke	100	mm
3	Number of stroke	50	min
4	Max die set height	270	mm
5	Die set height adjustment	60	mm
6	Distance from slide block centre to the frame	800	mm
7	Worktable dimensiones(WxL)	170x750	mm
8	Size of the handle hole(Diameter*Depth)	Φ60x80	mm
9	Thickness of bolster	80	mm
10	Power	5.5	kw
11	Outine dimension(LxWxH)	2260x1265x2450	mm

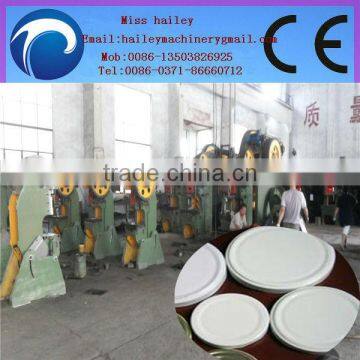

The pictures of punching machine

some product of punching machine
