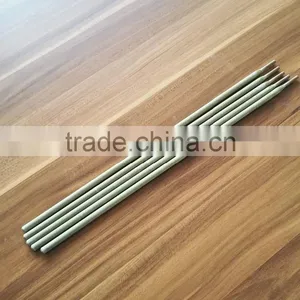

Help CenterECuNi Welding Electrode Diameter 4.8mm
Related Products
-
ECuNi Welding Electrode Diameter 4.0mmUS$ 100 - 100MOQ: 5 Kilograms -
ECuNi Welding Electrode Diameter 3.2mmUS$ 100 - 100MOQ: 5 Kilograms
-
ECuNi Welding Electrode Diameter 2.4mmUS$ 100 - 100MOQ: 5 Kilograms
-
ECuNi Welding ElectrodeUS$ 100 - 100MOQ: 5 Kilograms
-
ECuNi Welding RodUS$ 100 - 100MOQ: 5 Kilograms
MONEL Welding Electrode 187 is used for shielded-metal-arc welding of wrought or cast 70/30, 80/20, and 90/10 copper-nickel alloys. Like the base metals with which it is used, the weld metal resists fouling and corrosion in sea water and is useful for many marine and desalination applications. Dissimilar joints welded with the electrode include those between copper-nickel alloys and MONEL alloy 400 or Nickel 200.
The electrodes provide excellent operability for groove and fillet welding in the downhand position and the smaller diameter electrodes are also suitable for all position welding. Power supply: direct current, electrode positive.
Specifications
AWS A5.6 ECuNi(UNS W60715)
ASME II, Part C, SFA-5.6, ECuNi(UNS W60715)
ASME IX, F-No.34
DIN1733 S CuNi30Mn(2.0838)
(EN)ISO ECu 7158(CuNi30)
Supply to these specifications available upon request
For manufacture to ASME III(NCA3800, NB2400), MIL and other specifications please refer your inquiry to the technical department prior to order placement.
Approvals
VdTUV 4530.01
Other approvals may be applicable, please confirm details of current scope of approvals with the technical department prior to order placement.
Limiting Chemical Composition
Ni+Co |
C |
Mn |
Fe |
S |
Cu |
Si |
P |
Ti |
Others |
29.0 min |
0.05 max |
1.0-2.5 |
0.40-0.75 |
0.015max |
Remainder |
0.5max |
0.02 max. |
0.5 max |
0.50 max |
Minimum mechanical properties
Tensile strength, psi 50,000
Mpa 345
Elongation, 4d% 30
Filler metals available on spool and in cut straight lengths in a variety of sizes selected from the following diameters:
Available Product Forms-Supplied in 10lbs(4.54kg) hermetically sealed containers
Diameter |
mm in |
2.4 3/32 |
3.2 1/8 |
4.0 5/32 |
4.8 3/16 |
Length |
mm in |
229 12 |
356 14 |
356 14 |
356 14 |
Current(DC+) |
A |
60-85 |
70-120 |
100-145 |
130-190 |
