Home > Industrial Equipment & Components > Fastener & Fitting > Bolts > Gh4169 / Alloy 718 Stainless Steel Fastener Hex Bolt and Nut Gh2132 / Alloy A286

Gh4169 / Alloy 718 Stainless Steel Fastener Hex Bolt and Nut Gh2132 / Alloy A286

Name: Gh4169 / Alloy 718 Stainless Steel Fastener Hex Bolt and Nut Gh2132 / Alloy A286
Brand: X-DO
SKU: 137765845
Availability: InStock

Gh4169 / Alloy 718 Stainless Steel Fastener Hex Bolt and Nut Gh2132 / Alloy A286 thumbnail-1

Gh4169 / Alloy 718 Stainless Steel Fastener Hex Bolt and Nut Gh2132 / Alloy A286 thumbnail-2

Gh4169 / Alloy 718 Stainless Steel Fastener Hex Bolt and Nut Gh2132 / Alloy A286 photo-1

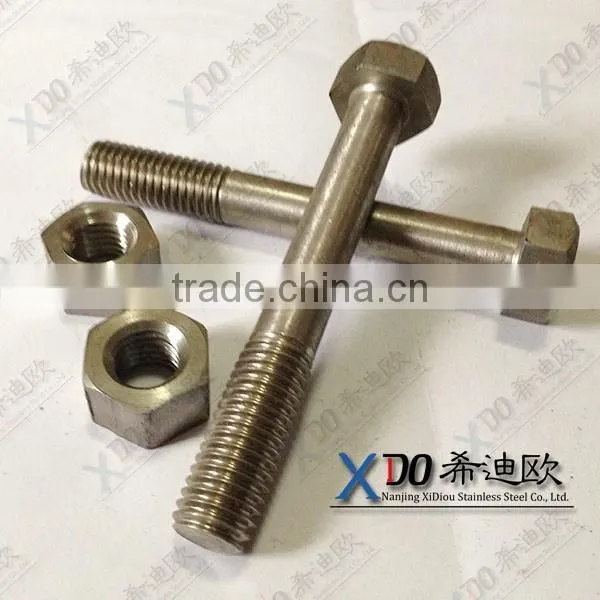

Gh4169 / Alloy 718 Stainless Steel Fastener Hex Bolt and Nut Gh2132 / Alloy A286 photo-2

US$ 0.2 - 20 MOQ: 30 Sets

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

X-DO

Model Number:

DIN931/DIN933/DIN934 hex bolt and nut

Contact Supplier Request Quote Chat Now

Nanjing Xidiou Stainless Steel Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name X-DO

Model Number DIN931/DIN933/DIN934 hex bolt and nut

Standard DIN

gh4169 / alloy 718 stainless steel fastener hex bolt and nut gh2132 / alloy a286

INCONEL® 718

ASTM B637, B 670, B 906

UNS Number N07718 DIN2.4668
NACE MR-01-75

Other common names: Alloy 718, Haynes® 718, Nicrofer® 5219, Allvac® 718, Altemp® 718

Chemical Composition, %

Ni	Fe	Cr	Cu	Mo	Nb	C	Mn
50.00-55.00	Remainder	17.00-21.00	.30 max	2.80-3.30	4.75-5.50	.08 max	.35 max

P	S	Si	Ti	Al	Co	B
.015 max	.015 max	.35 max	.65-1.15	.20-.80	1.00 max	.006 max

Mechanical Properties

Typical room temperature properties, 1800°F annealed condition

Ultimate Tensile Strength, psi	.2% Yield Strength psi	Elongation %	Hardness Rockwell B
135,000	70,000	45		100

Size	Metric diameter M6 to M100 ;Inch Diameter 1/4” to 3” ,Length:10-4000mm
Material	316L ,316LN,316Lmod,316Ti,317L, 317LN, 321,310S, 904L 254SMO AL6XN 1.4529 Super austenitic alloy
	Duplex stainless steel 2205 , 2507, S32760 .
	Hastelloy C276, Hastelloy C4, Hastelloy C22, Hastelloy B2 ,HastelloyB3,
	Monelk500, Monel400, GH2132/A286, GH4169/Inconel718, Inconel600, Inconel601, Inconel625,
	Incoloy800/800H/800HT, Incoloy825,Alloy59.alloy20
Product range	Bolt ,nut ,screw ,washer, thread rod , flange, welding wire
Standard	DIN ASME GB JIS non-standard products
Logo	XDO , also according to client’s requirements
MOQ	50pcs at least, also according to size and material
Sample policy	sample could provided, sample fee will be charged if no instock.
Sample time	One day delivery if we have in stock, one week if no in stock.
In stock items	904L Hex nut M6 to M36 , 1.4529 Hex nut M6 to M36 duplex 2205/2507 Hex nut M6 to M36
	304/316/316L hex bolt and nut M6 to M36.
One stop purchase	we help you with one stop purchasing
OEM Accepted	Yes
Mill test certificate	Yes
Inspection report	Yes
Payment term	T/T ,Western Union ,L/C
Packing details	Carton box 270x260x160 , Pallet 900X500X400
Treatment	Cold forging and hot forging
Exported countries	United States, Germany, Saudi Arabia, South Korea, etc.
