haulm briquette making machine/straw briquette press machine/biomass briquette machine
There are two types of biomass briquette machine:ring die biomass briquette machine and flat die biomass briquette machine
Raw material:rice husk,wood sawdust,biomass,straw,etc.

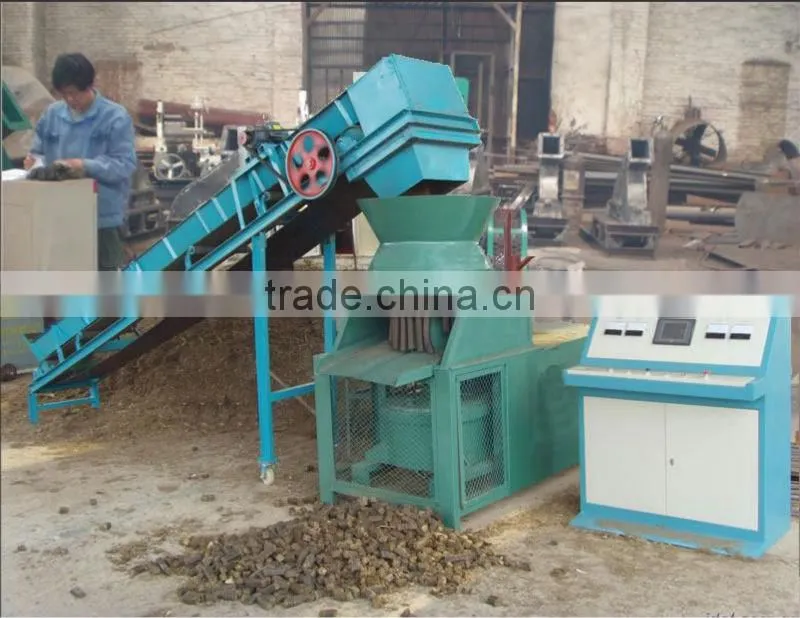

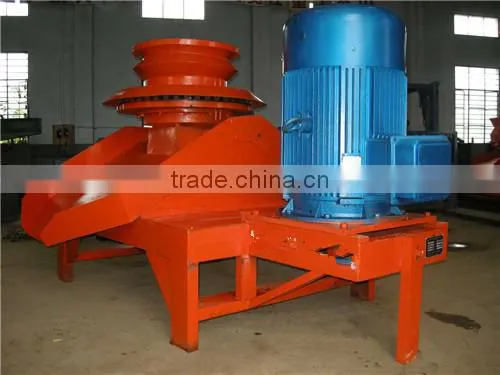

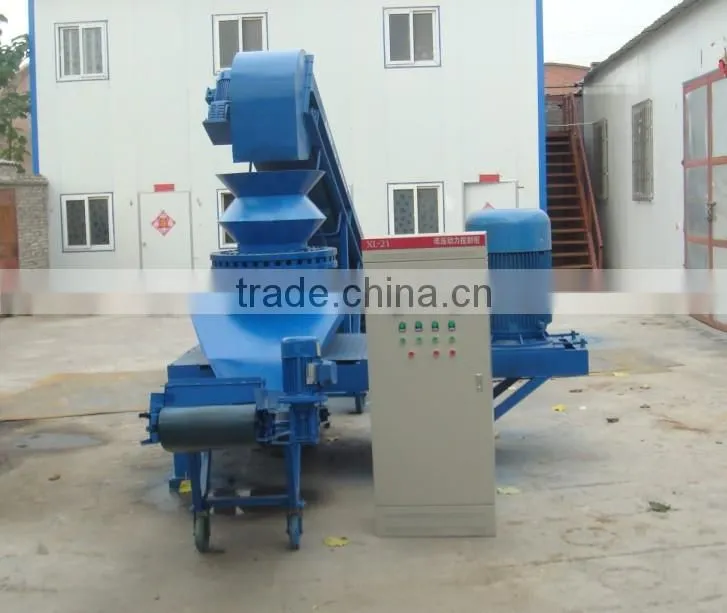

1.Ring die biomass briquette machine
a. description of ring die biomass briquette machine
biomass briquette machine is a new generation of energy-saving products,researched and developed by our rearcher newly.Iht is mainly for the renewable or recyled organic material's densification and molding.It can make thesolid stick charcoal from the different raw material via the high temprature,high pressure producedure.The whole production line can help you make the material stick charcoal directly,Save energy and high efficiency.
b. factures of ring die biomass briquette machine:
1.The uique mold structure for maching of various water crops straw:(1)the good adaptability to extend the material's production cycle.(2)the ring mold with a flat type,cavity wear synchronization,effectively prolong service life.the biomass fuels have high density and smooth suiface.(3)the automatic heating device for adjust the temperature and sovle the problems such as congestion,poor shapen in the molding.
c. parameters of ring die biomass briquette machine:
Model |
TZMYKHP-810 |
TZMYKHP-980 |
TZMYKHP-1000 |
Power(kw) |
37 |
45 |
55 |
Output(t/h) |
1.3-1.8 |
2-2.5 |
2.8-3 |
Speed(r/min) |
980 |
||
Diameter(mm) |
810 |
980 |
1000 |
Number of bores |
36 |
45 |
60 |
Briquetting specification(mm) |
32*32 |
||
Material length(mm) |
3-60 |
||
Moisture(%) |
15-30 |
||
Whole size(mm) |
2700*1000*1800 |
2700*1100*1800 |
2700*1200*2000 |
Weight(t) |
2.8 |
3.2 |
4.3 |

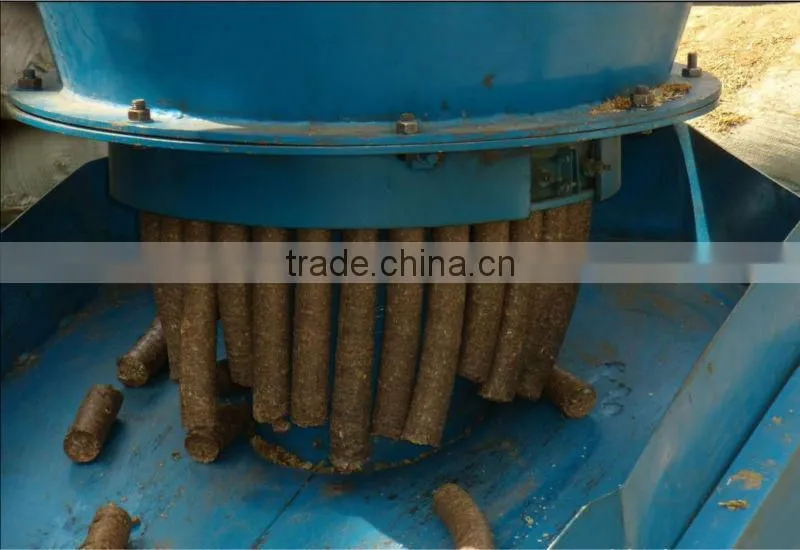

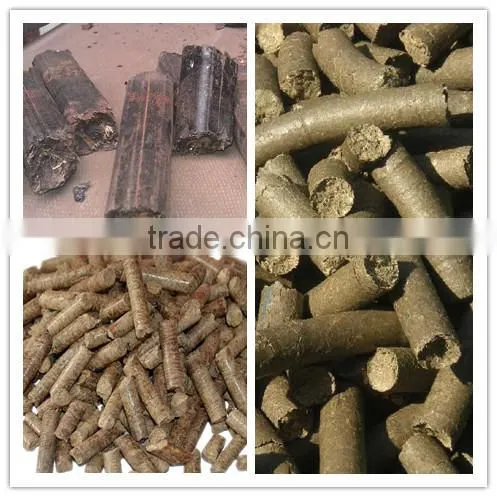

d. the final products:

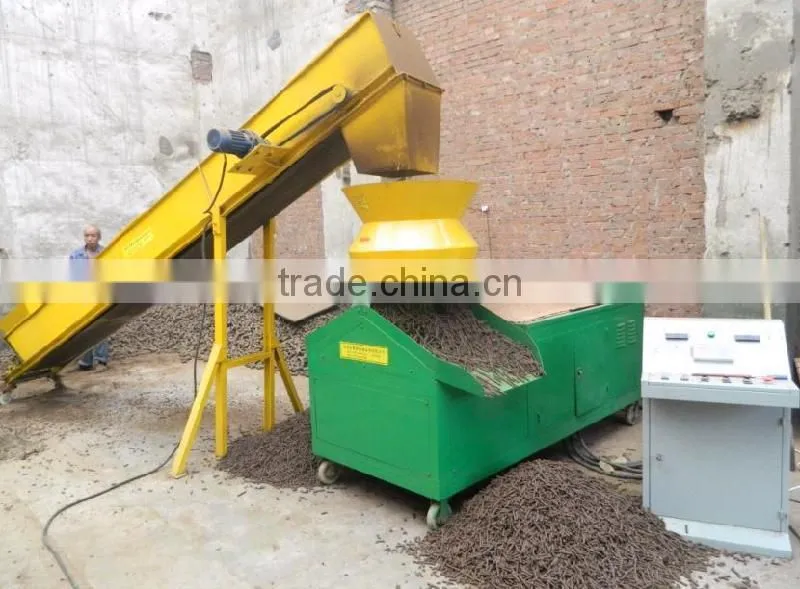

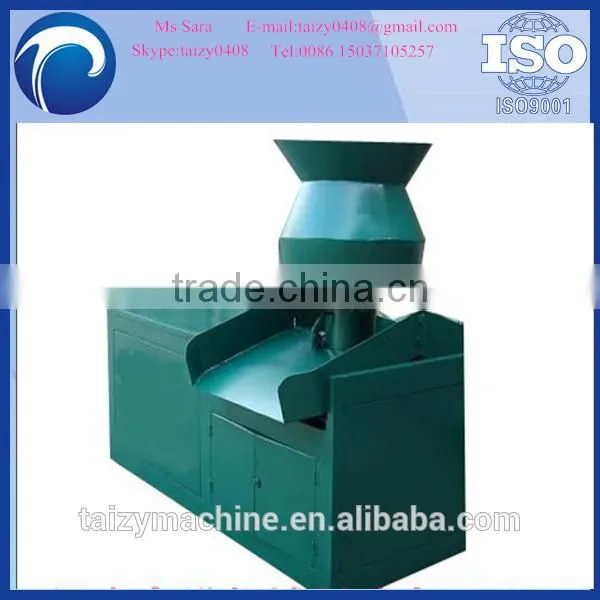

2.Flat die biomass briquette machine
a. description of flat die biomass briquette machine
Using flat module and the pressure between the wheel of the impact extrusion and frictin model hole mutual action principle.So that the material was forming.Materials in the process without adding into any additives or blinder.Containing a certain amount of fibers and ligin,the material is the monomer ligin structure,it is the benzene propane types of polymers,It has the enhancement cell wall,adhesion of cellulose use,Ligin is a non-crystalline,at the normal tempreture,the main part ofany dissolved agent,there is no melting point,but there are softening point.When the tempreture reaches a certain value,the wood quality of softening rapping increase,and under certain pressure function,making its fibers grain molecular mass displacement and deformation,
extend,internal adjacent biomass granule phase.Then ressembled and pressure molding .
b. parameters of flat die biomass briquette machine:
Model |
TZM-36 |
TZM-56 |
Power(kw) |
18.5/22 |
22/30 |
Output(t/h) |
0.8-1 |
1.8-2.2 |
Heater power(kw) |
1.5 |
3 |
Number of bores |
36 |
45 |
Material length(mm) |
5-40 |
|
Moisture(%) |
15%-30% |
|
Whole size(mm) |
1500*700*1800 |
2000*900*1680 |
Weight(t) |
1.8 |
2.3 |

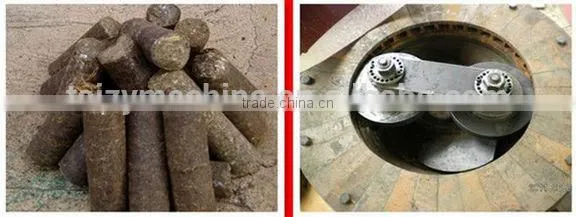

c. the final products:

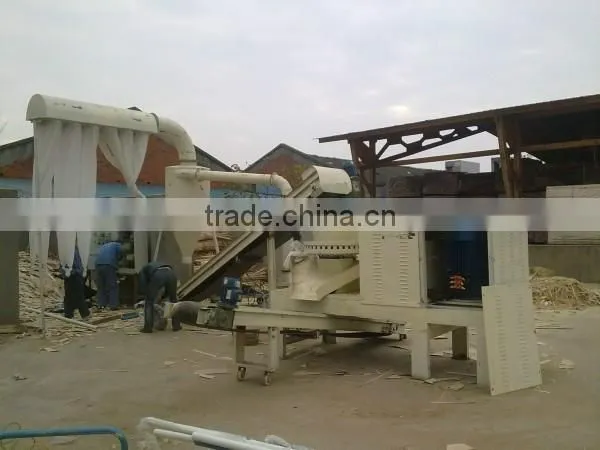

3.Our factory and colleagues:
4.If you are interested in our machines,please contact me at any time:
