Good Performance Wood Glue Machine

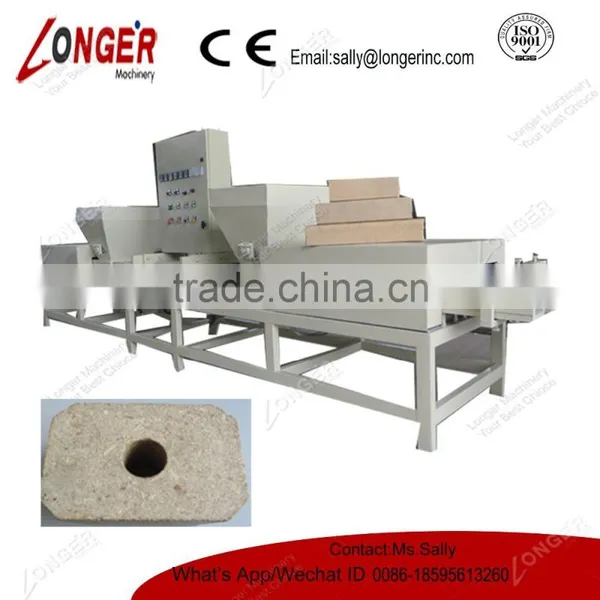

The wood powder brick making machine is mainly used for wood waste materials, such as
wood shavings,sawdust and so on.
2.Firstly,we dry the wood shavings with 8%-10% moisture ,and then mix with glue, finally the mixed material will be press into block by the wood powder brick making machine under high pressure and high temperature.
3.The block can be made into with one hole in the center or without hole.The wood powder brick making machine is made with high waterproof performance.
4.This production line is composed by the crushing machine, drying machine, gluing machine, and the wood pallet machine.
5.The pallet block's size can be made by customer's demands.
Equipment Details:
1.Dryer Machine GG-40 Air flow type)
Model |
LGBY-40 |
Powder |
11KW |
Weight |
2500 kg |
Dimension |
9800*1500*3600mm |
Speed |
8r/min |
Air heating |
220℃ |
Moisture |
40%-10% |
Energy efficiency |
85% |
2.Glue Blending Machine
Glue can use urea-formaldehyde glue.The machine is simple, one person can operate it; covers an area of small, only 1 square meter; mixing evenly, easy to clean; mixing time is short, 2-3 minutes; stable performance, low power consumption, high efficiency, 1000kg / h ; Durable, less failure, long life
Name |
Glue Blending Machine |
Capacity |
1800kg/h |
Voltage |
380V |
Power |
7.5KW |
Speed |
960r/min |
Dimension |
4800*760*1300mm |
Weight |
300kg |
Glue consumption |
100-120kg/m³ |

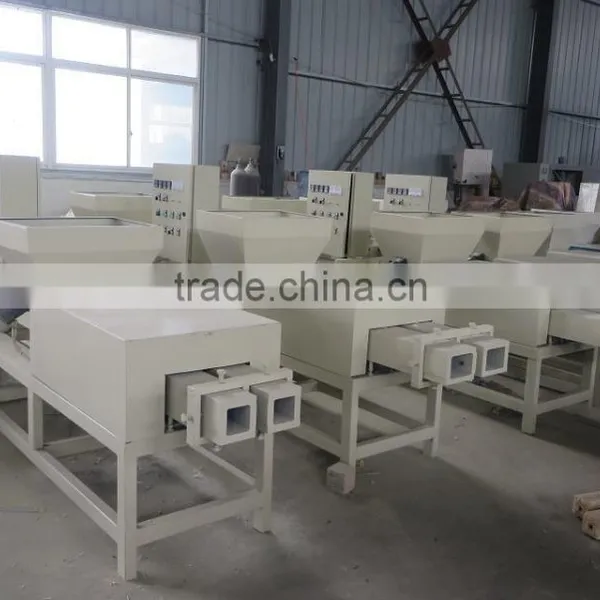

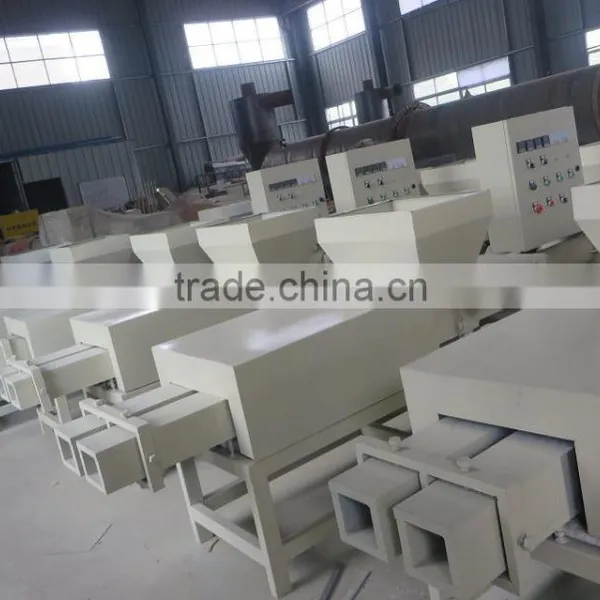

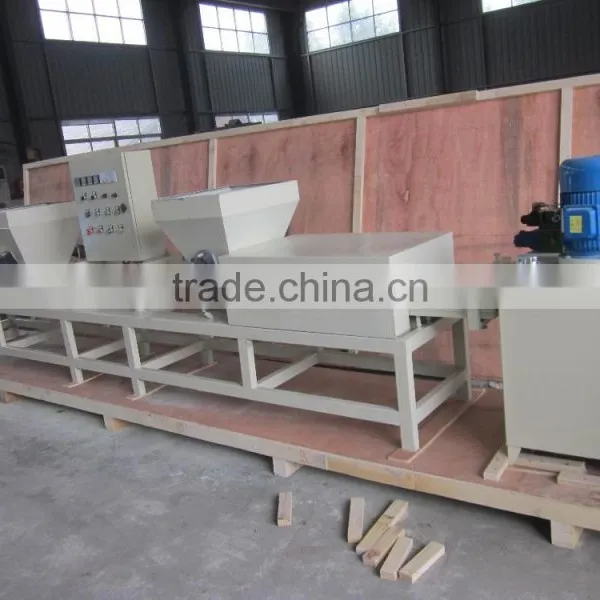

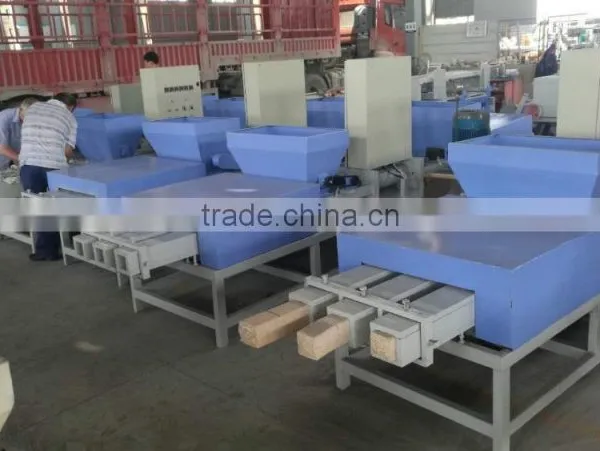

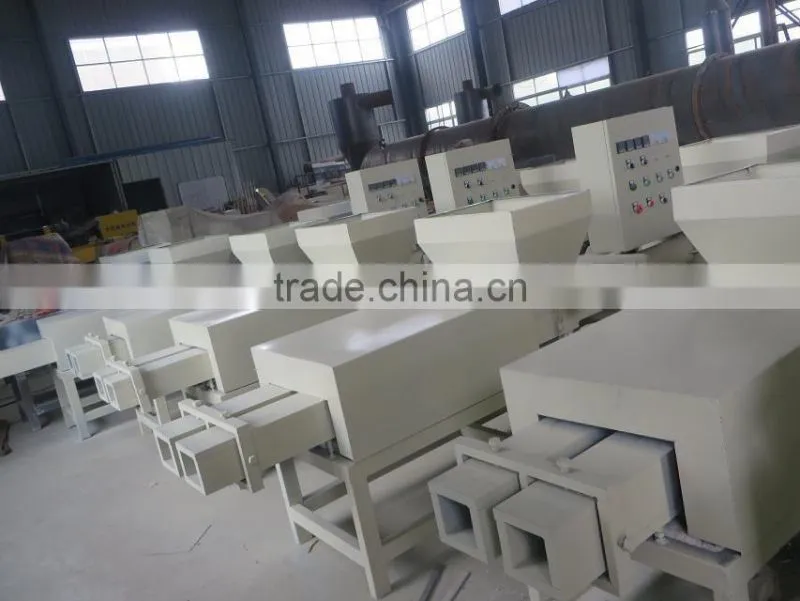

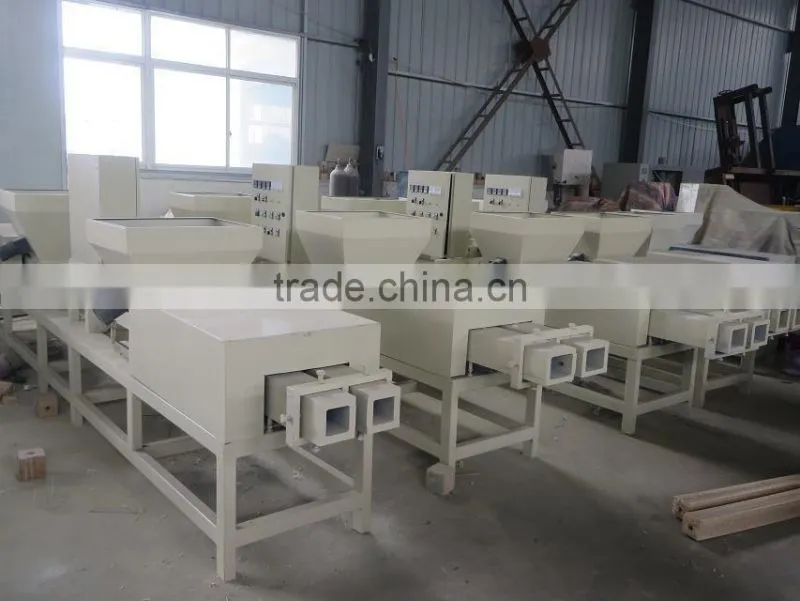

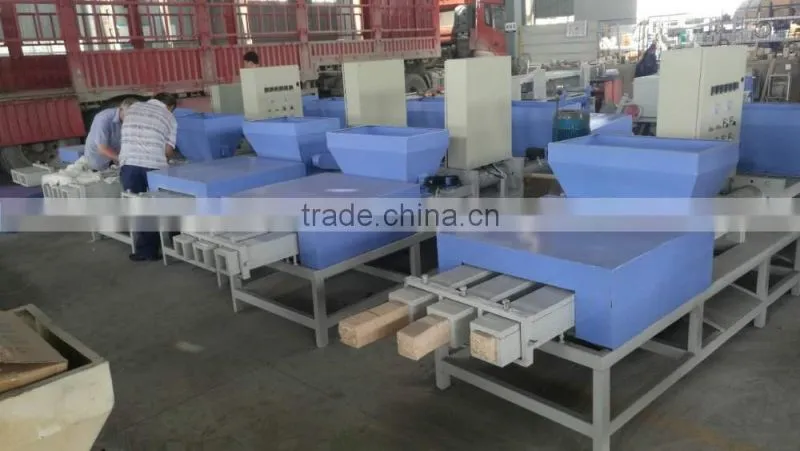

3.Wood block hot pressing machine
The equipment uses the waste wood chips, wood shavings as raw materials, drying by the dryer, and then mixed with the glue and then; a hot pressing molding of the pier, beautiful clean, can not afford the slag, good water resistance (soaked 48 Hour does not crack, the wind does not crack the sun), with a strong nail. (E2), are in line with national standards, the bonding strength of 1.07mpa, grip screw force perpendicular to 1590N, parallel to the 1660N is the product of the foot of the foothill products export exempt from fumigation, formaldehyde emission (E2) Production of fumigation-free wooden tray bracket (foot, legs) ideal material.
Items |
Parameter |
Voltage |
380V |
Power |
16KW |
Block density |
550-600(kg/m³) |
Capacity |
5-6m³/24h |
Size of block |
145*145mm |
Dimension |
5000*900*1320mm |
Weight |
1600kg |

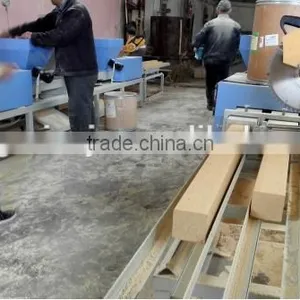

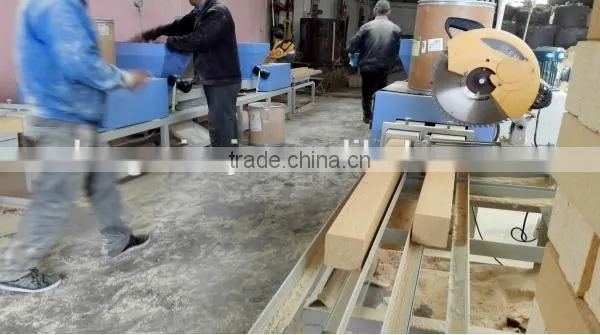

4.Wood block cutting machine
The device can be used for wood shavings, multi-layer board pier, solid wood side of the automatic cutting; cutting length specifications can be adjusted, 100 * 100mm specifications can be achieved within the same double cutting, 100-200mm specifications of a single cut. (Beyond the conventional length, height range, you can contact custom)
Automatic cutting machinery and equipment structure is simple, easy to operate, high efficiency, cutting 1800-2000 per hour. Cutting the shavings of the blocks smooth; the entire cutting process manual operation can not touch the cutting blade, so use very safe!
Items |
Cutting machine |
Power |
5.5kw |
Voltage |
380V |
Weight |
300kg |
Diameter of saw blade |
400mm |
Processing range |
Length:1500mm Width:200mm Height:120mm
|
Capacity |
1800-2000pcs/h |
Dimension |
1500*1100*1300mm |
Outside Package:Wooden Packing as Exportand Standard. Inner Package:Strech Film
