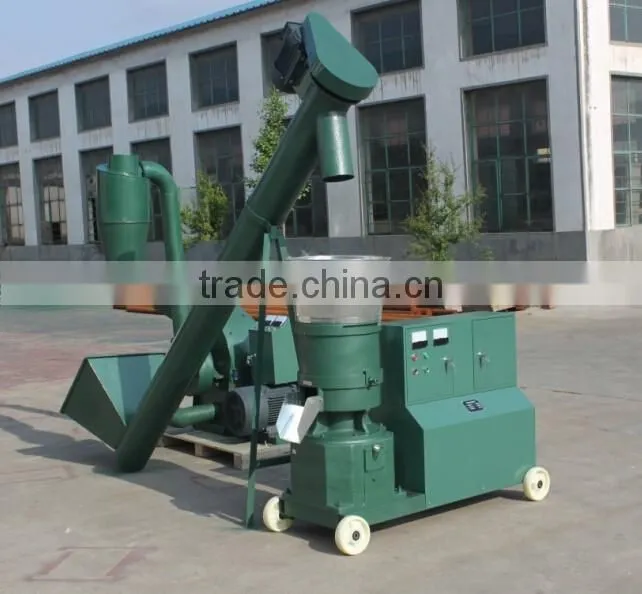

CE Approved Series Pellet Machine/Biomass Pellet Machine on Sale
flat-die pellet making machine, feed pellet machine, fuel pellet making machine, biomass pellet forming machine, poultry feed pellet mill, poultry feed pellet making machine, flat-die pellet mill/machine/machinery/equipment , pellet mill, professional poultry pellet machine, chicken feed pellet machine, cow feed pellet machinery, chicken pellet forming equipment.
Product feature:This flat-die pellet machine is with less investment, simple operation, easy maintenance, high pellet forming rate.
Application:Mainly used to make feed pellet and fuel pellet. Also widely used in farmer, home use.

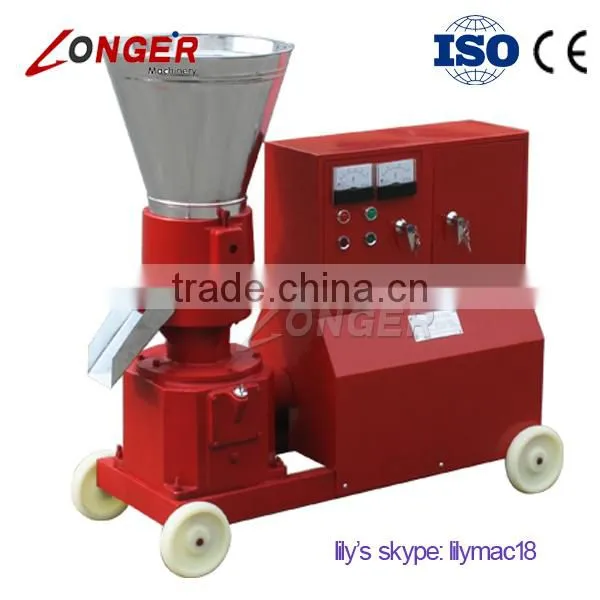

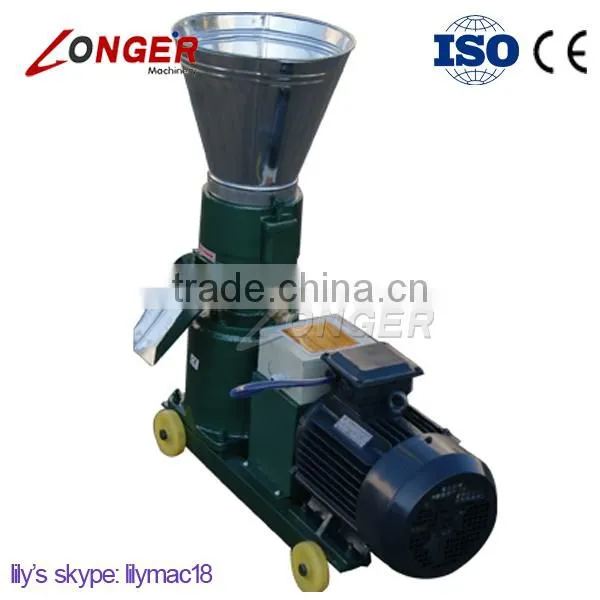

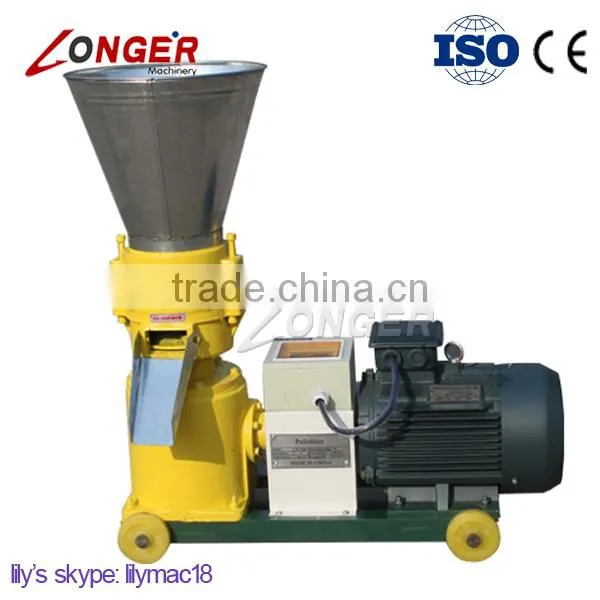

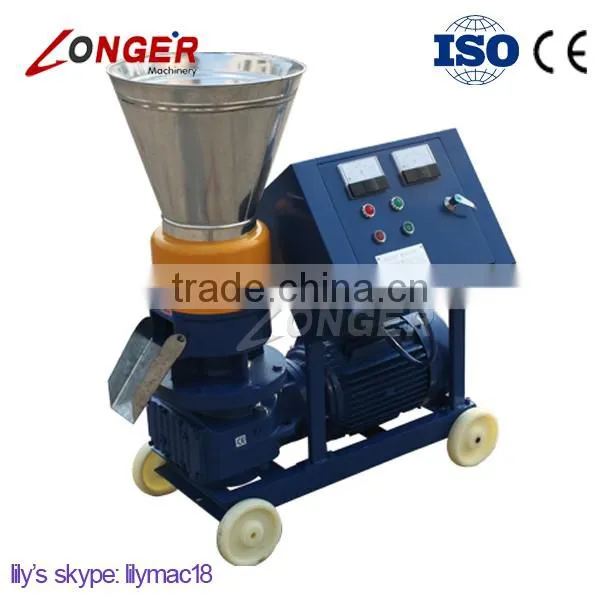

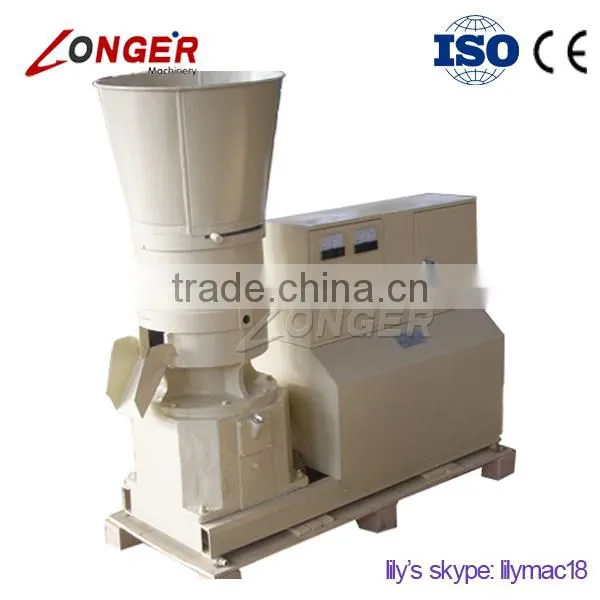

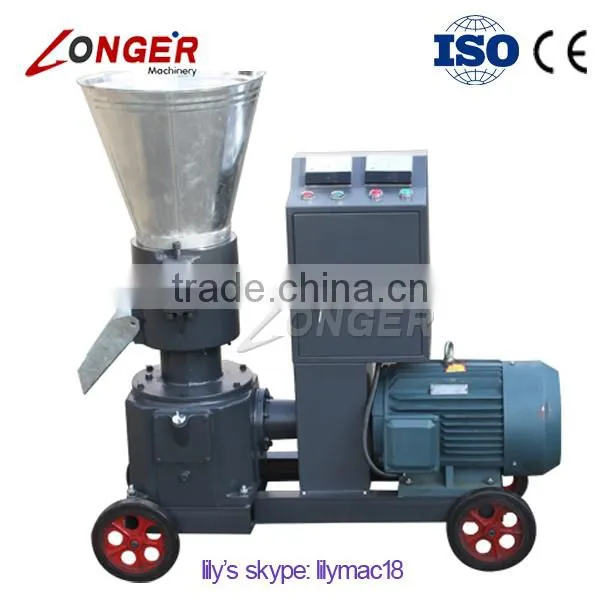

Product introduction:LG Series flat-die pellet machine is our company’s new design, adopt to domestic advanced technology,once forming technology. It has the advantage of less investment, easy to operate,and easy to maintain,with the high pellet forming rate and so on. Clients also can according to demand to choose different aperture to produce particles of different sizes,also depend on the material to choose different compression ratios of the mold plate, to produce livestock for different particles.
The pellet produced by our company’s machine is smooth surface,strong, During pelletizing, the temperature will up to 70-80 degree,can make the starch gelatinized,internal curing deep penetration, non-perishable, deterioration, long-term storage.Also can improve the palatability and digestion and absorption functions of livestock and shorten the fattening of livestock, greatly reducing the cost of production of the majority of farming households.
Applicable materials:corn,soyabean,grass,straw,rice husk and so on.
Advantage:
Flay-die pellet machine has the following advantage:
1.This machine adopt once forming technology.
2.With high capacity,low power consume,with low noise,working stable and Machine fatigue resistance is strong,and produce continuously, economic and durable.
3.All the machine is made of the qualitative materials and advanced coupling gear,beautiful appearance, compact structure,Wearing parts and key components of high quality steel plus wear-resistant materials.
4.Gearbox made of high quality gray cast iron materials, low noise, good shock absorption, mold plate and pressure rollers made of high quality steel, hardness 55-60HRC, case thickened by ribs, and increase the thickness of the casting, which greatly enhanced mechanical strength, to eliminate the housing breakage feed particle machine.
Technical parameter:
Model |
LGKL-120B |
LGKL-150B |
LGKL-200 |
LGKL-230 |
LGKL-260 |
LGKL-360 |
Capacity |
60-100kg/h |
90-120kg/h |
200-300kg/h |
300-400kg/h |
400-600kg/h |
600-800kg/h |
Weight(Kg) |
100 |
120 |
220 |
320 |
450 |
580 |
Packing Size(cm) |
75*35*65 |
75*35*65 |
100*46*90 |
114*54*93 |
112*53*107 |
134*58*106 |
Motor (kw) |
3 |
4 |
7.5 |
11 |
15 |
22 |
Die specifications |
2.5-10mm |
2.5-10mm |
2.5-10mm |
2.5-10mm |
2.5-10mm |
2.5-10mm |
Dia of flat platform |
120mm |
150mm |
200 mm |
230 mm |
260 mm |
360 mm |
