Soybean Oil Press Machine/Peanut Oil Extractor Machine/Oil Extraction Machine
1.Range of application of Soybean Oil Press Machine/Peanut Oil Extractor Machine/Oil Extraction Machine:
Suitable for rapeseed, peanut, soybean, sunflower, rapeseed, sesame, sesame seed, tea seed, walnut, olive, corn germ, rice bran, tea seed, safflower seed, seeds of hippophae rhamnoides and so on.
2. Characteristic of Soybean Oil Press Machine/Peanut Oil Extractor Machine/Oil Extraction Machine:
Automatic spiral oil press is mainly composed of electric control, automatic heating, adjustment, transmission and vacuum oil filter components.
3.Product feature of Soybean Oil Press Machine/Peanut Oil Extractor Machine/Oil Extraction Machine:
Oil press machine is to separate the oil from oil bearing materials by the pressing power which comes from the change of chamber volume, drive from screw worm, resistance of curve teeth at press rings and extrusion friction between oil materials. Under the big pressure created in press chamber, the oil can be discharged from gap of press bars and oil trough of press rings. Either big scale and small scale of oil press machine, they have similar theories in screw expeller pressing. Because the screw type oil press machine is mainly used by extrusion theory, so it is also called as oil extruder or oil extrusion process.
4. Technician parameter of Soybean Oil Press Machine/Peanut Oil Extractor Machine/Oil Extraction Machine:
Model |
LGYL-60A |
LGYL-80A |
LGYL-100A |
LGYL-120A |
Screw diameter |
60mm |
80mm |
100mm |
120mm |
Capacity(t/24h) |
1-1.5 |
3-4 |
5-6 |
6-8 |
Motor(KW) |
2.2 |
5.5 |
7.5 |
11 |
weight (kg) |
500 |
700 |
1000 |
1400 |
|
Size (mm) |
1200*580*1400 |
1480*630*1570 |
2200*810*1850 |
2200*1650*1750 |

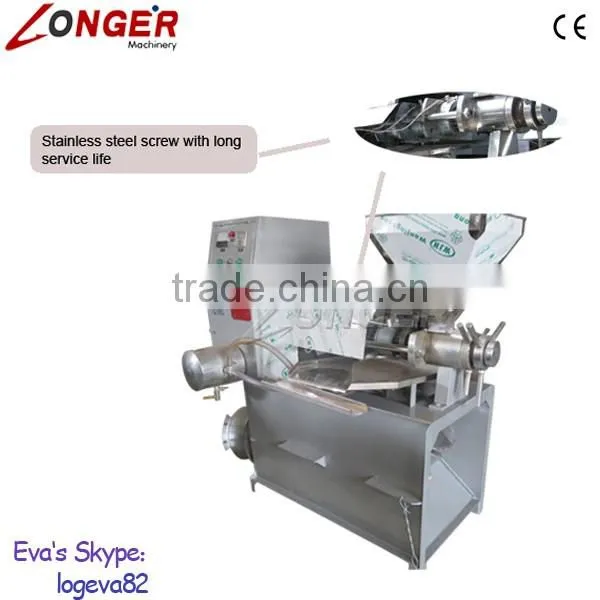

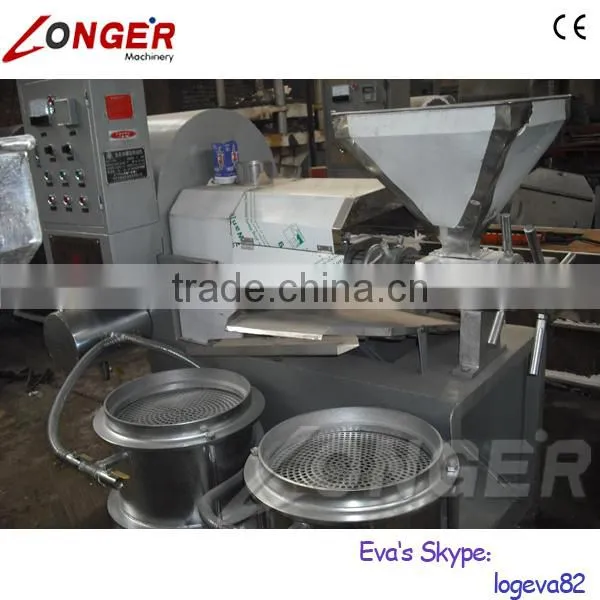

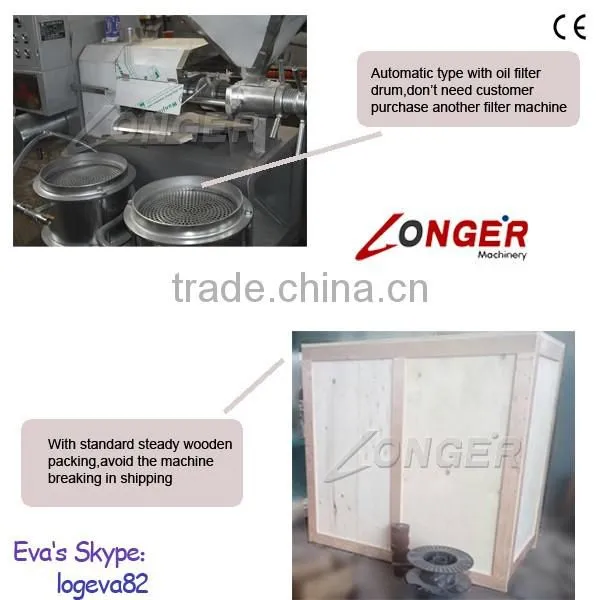

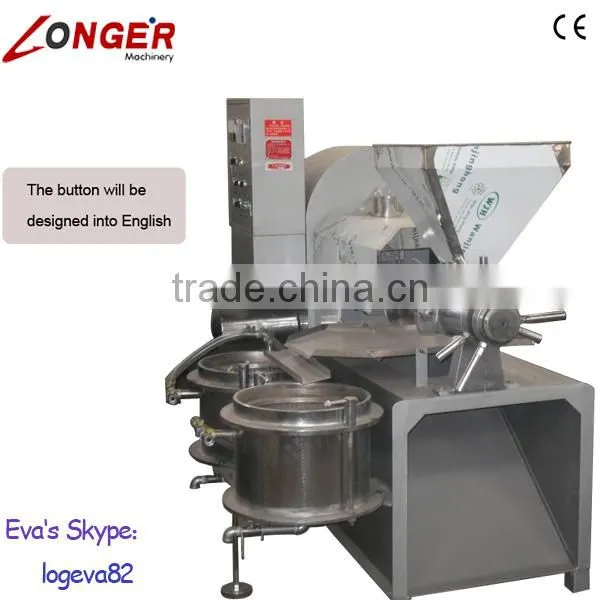

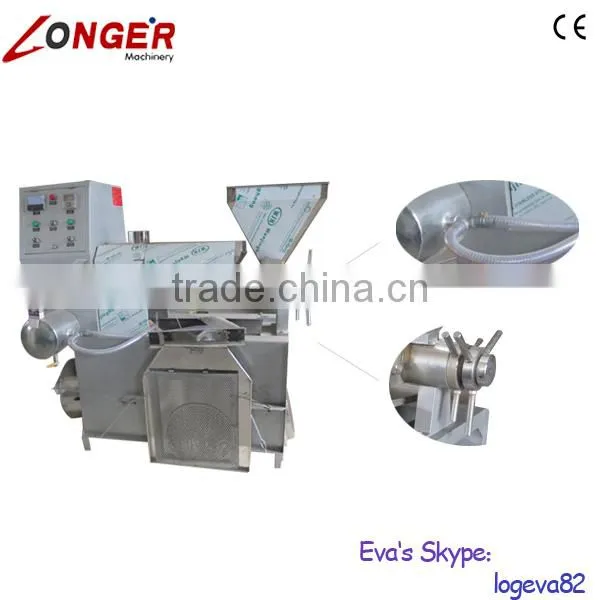

5.Picture of Soybean Oil Press Machine/Peanut Oil Extractor Machine/Oil Extraction Machine:
Ⅰ.Delivery time: 5 days after received 40% of the whole payment.
Ⅱ.Payment term: 40% as prepayment by T/T, after seen the copy of the B/L sent by fax ,the balance of 60% should be effected .
III. Valid time : This quotation is valid for seven days .
IV .Quality Guarantee Terms:
Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
