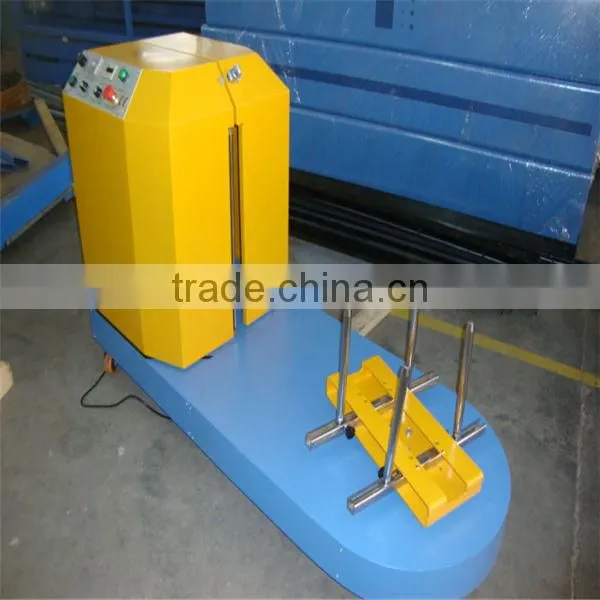

Help CenterAutomatic Buggage Wrapping Machine/luggage Packing Machine for Airport
Related Products
-
Best Quality Packing Machine/baggage Packing Machine/airport Luggage Wrapping MachineNegotiableMOQ: 1 Set -
Semi Automatic Carton Packaging MachineNegotiableMOQ: 1 Set
-
Chocolate Packaging Machine/egg Pie Packer/food Candy Pillow Packing MachineNegotiableMOQ: 1 Set
-
Good Quality Carbon Stick Packing MachineNegotiableMOQ: 1 Set
-
Vacuum Packing Machine , Food Vaccum Packing Machine , Hardware Vaccum Packing MachineNegotiableMOQ: 1 Set
Quick Details
| Type: | Wrapping Machine | Condition: | New | Application: | Beverage |
| Packaging Type: | Cartons | Packaging Material: | Plastic | Automatic Grade: | Semi-Automatic |
| Driven Type: | Electric | Voltage: | 220V | Power: | 0.6KW |
| Place of Origin: | henan China (Mainland) | Brand Name: | shuliy | Model Number: | SL-01 |
| Dimension(L*W*H): | 1800mmL750mmW1100mmH | Weight: | 220kg | Certification: | CE |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging & Delivery
| Packaging Detail: | wooden case packaging |
| Delivery Detail: | 15 days after payment |
Specifications
1,pre-stretch film carriage,
2,1000mm wrapping height.
3.CE certificate
SPECIFICATION
SL-01 airport luggage winding film wrapper machine
1.Certificate: CE
2.Power:220v/50Hz1phase /380V/60Hz/3phase
3.Size:1320*600*1114
SL-01 luggage wrapper:
luggage wrapper Machine introduction
Luggage wrapper is designed to wrap luggage and related items for security purpose in airport setting. Film provides extra support while the luggage is being transport to protect them from being damaged.And the plastic and closing label avoid wrong taking.The machine is a movable and manually operated rotary turntable device use stretch film to wrap the luggage.The operator places the luggage on the platform and adjusts vertical rods to secure bag according the luggage's size.Then begin the wrap process start button on control panel pack the luggage by a 3 to 5 layers of stretch film.The operator cuts film tail and removes from the turntable.The machine is ready to accommodate the next piece of luggage.
luggage wrapper Control system
PLC Control system
Powered pre-stretch film carriage up to 250% to min film consumption
Operator adjusts vertical rods to secure bag
Film tension control adjustment on the panel.
Platform speed is 20 rpm.
Machine easy to be moved by one person.
Power |
AC220V 50Hz 0.75 KW |
Packing Size |
L(500-1000)×W(180-450)×H(300-500) |
Maximum Packing Weight |
100KG |
Motor for Film Shelf |
0.2KW |
Turn Plate Rotational Speed |
0-9turn/min(frequency adjustable) |
Turn Plate Diameter |
500mm |
Control Model of Film |
Initiative prestretching film shelf |
Size |
1650mm×600mm×1000mm |
Weight |
200KG |
