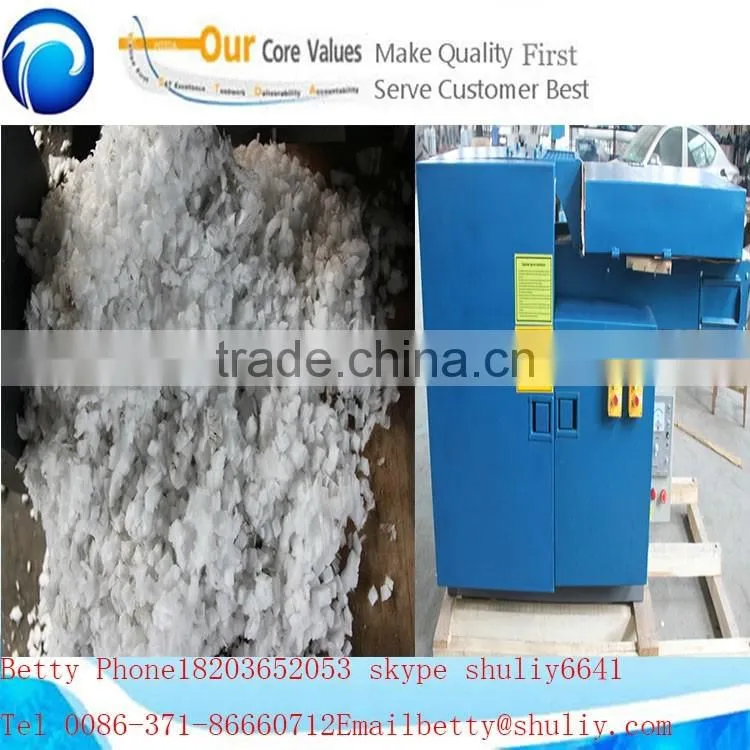

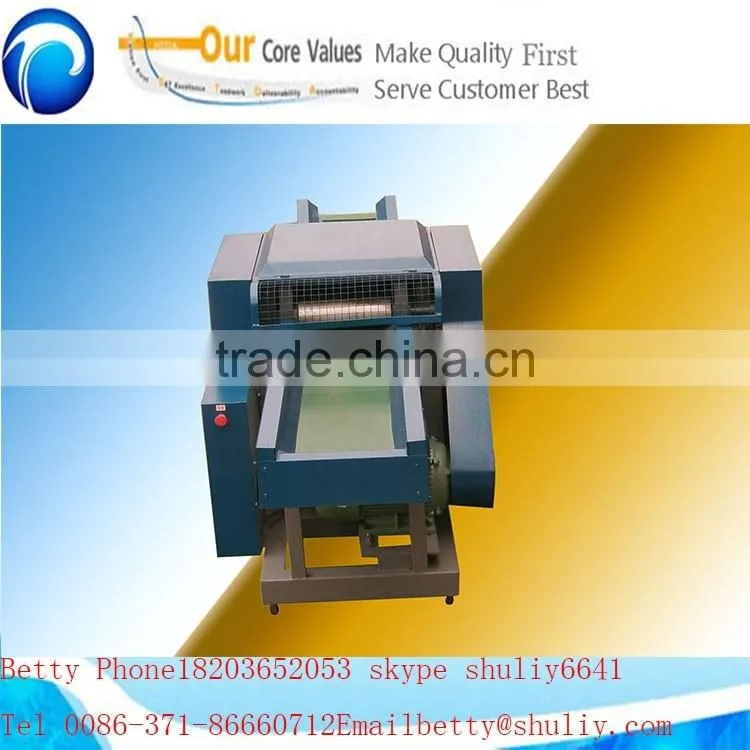

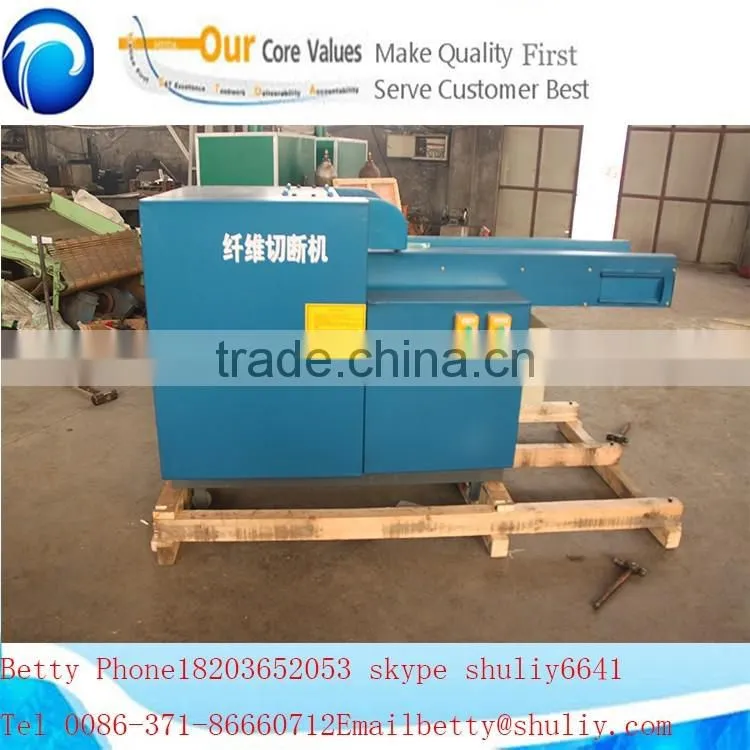

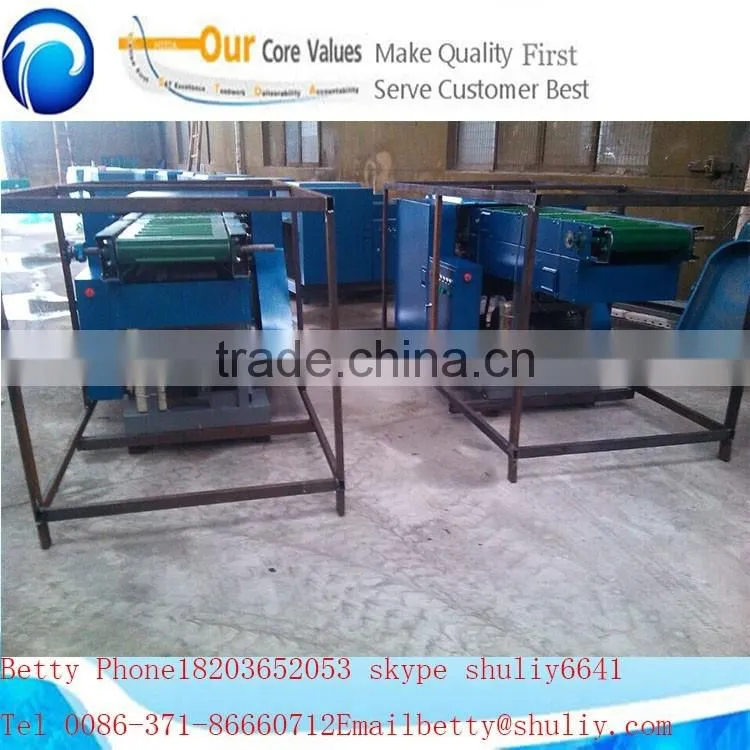

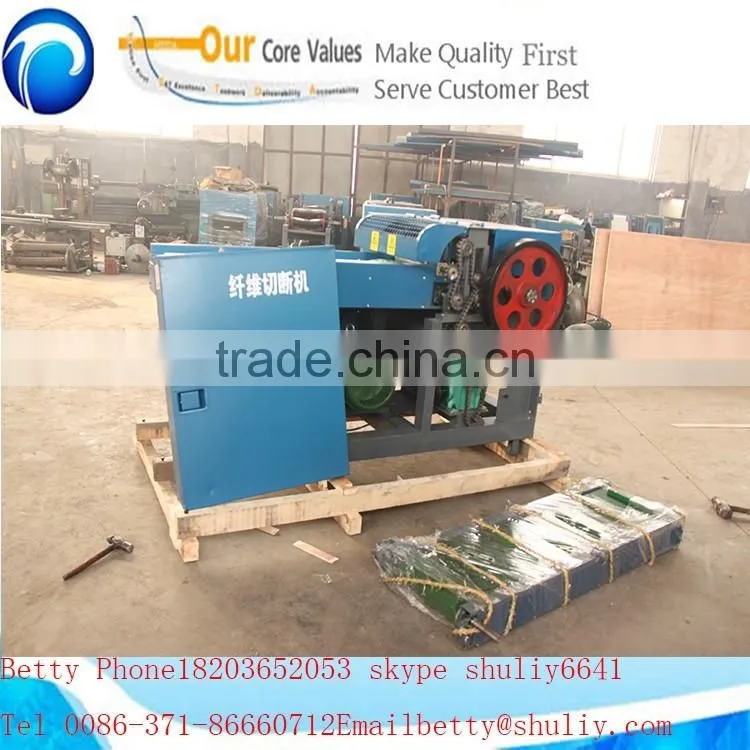

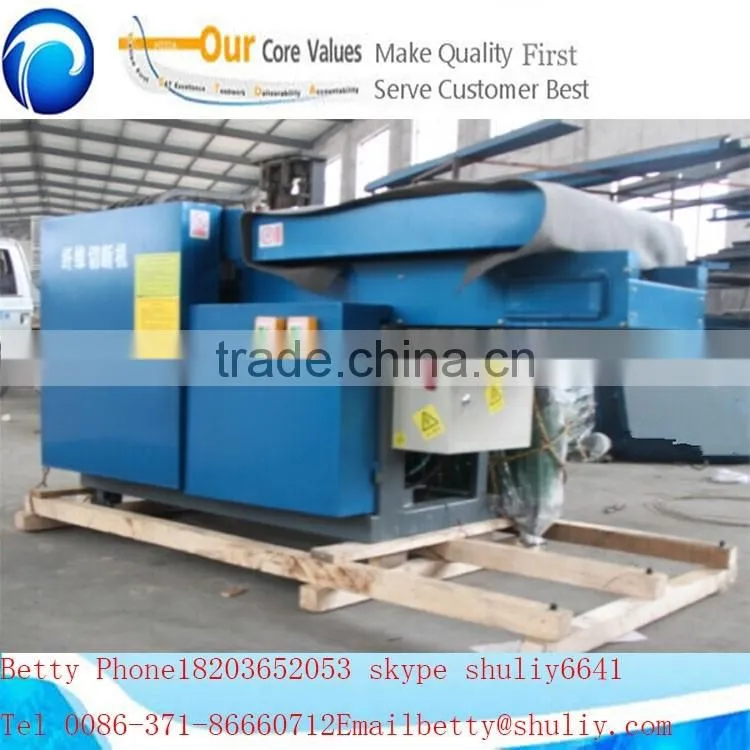

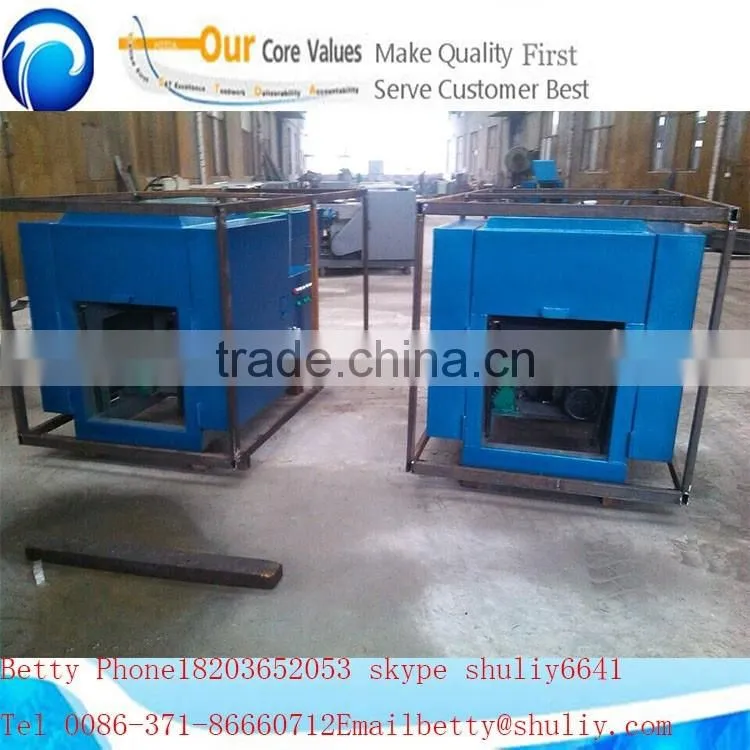

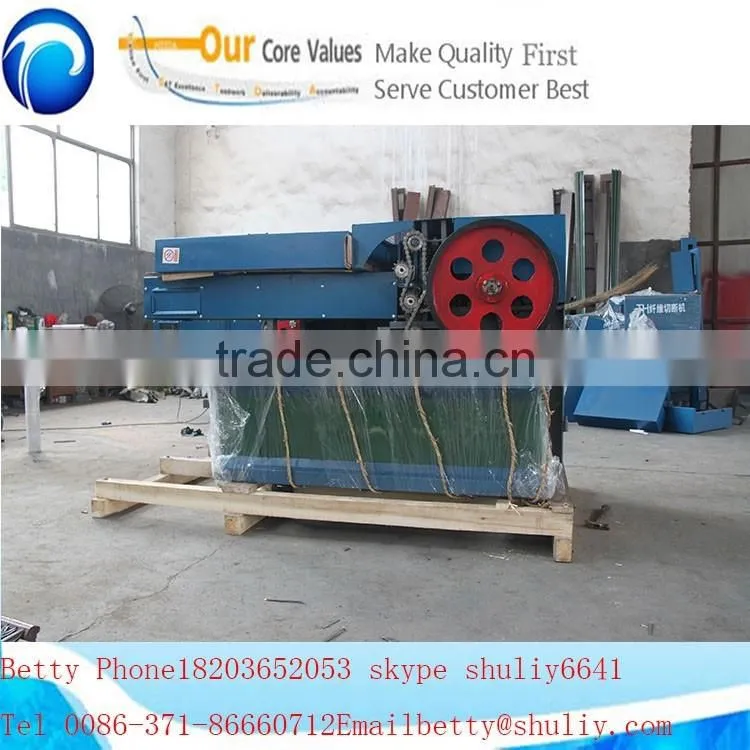

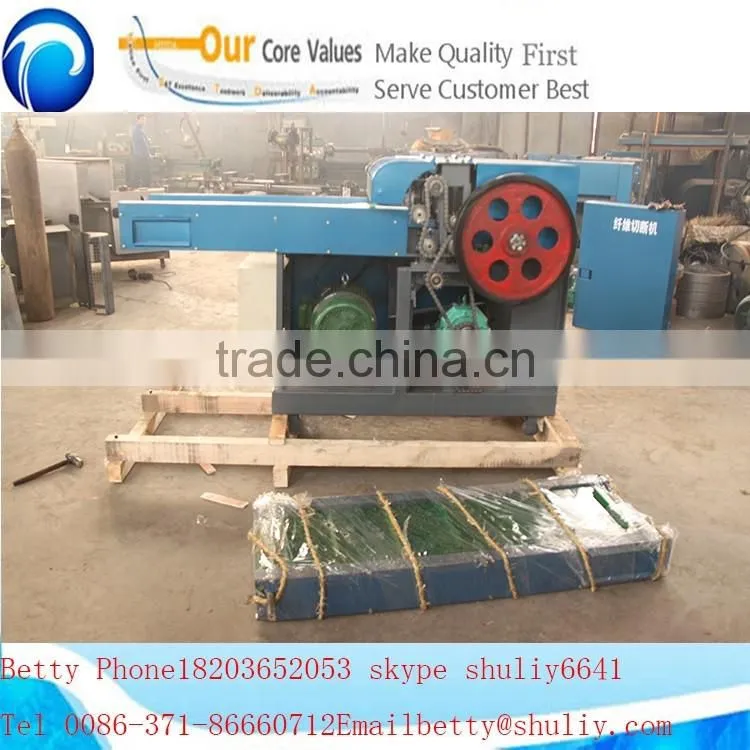

factory price automatic Waste Cloth textile Cutting Machine
The machine can be used to cut all kinds of fibre rags. Such as glass fibre, aramid fibreaynthetic fibre and so on. The Cutting machine has one fixed blade and two movable blades.
With the help of high rotation of movable blades roller, the raw material will be cut into
small pieces when they pass the fixed blade.
It is made and designed on the base of better character and advanced experience of the similar product domestic and abroad. In addition, it can meet the requirement of best quality, high output, low cost and also has a feature of reasonable structure, easy operation and safe production and so on
The main technical parameters of automatic textile cutting machine :
Model |
SL500A |
SL 500B |
SL 800A |
SL 800B |
SL 800C |
SL 800D |
SL 1200A |
SL 1200B |
||||
Powder |
3kw |
3kw |
3kw |
4.5kw |
5.5kw |
7.0kw |
9kw |
9kw |
||||
Capacity |
300kg/h |
300kg/h |
500kg/h |
500kg/h |
800kg/h |
800kg/h |
1000-1500kg/h |
|||||
Cutting times |
288/min |
432/min |
1036/min |
777/min |
1036/min |
|||||||
Cut size |
5—300mm fixed one size |
5—150m Select 3 sizes |
5---150mm Select 3 sizes and adjust |
|||||||||
Knives |
2 carbon steel knives |
Alloy steel 2 |
Alloy steel 3 |
Alloy steel 4 |
Alloy steel 6 |
Alloy steel 8 |
||||||
Fixed blades |
single-blade Mn-steel |
Single-blade Alloy steel |
Double-blade alloy steel |
Two rank double blade special alloy steel
|
||||||||
Feeding conveyor |
1000*350mm |
1400*950mm |
2800*350 mm |
2800*700mm |
||||||||
Output conveyor |
no |
1400*350mm |
1400*350mm |
2800*350 mm |
2800*700mm |
|||||||
Cut thickness |
20mm |
20mm |
30mm |
30-50 |
30-50mm |
30-50mm |
30-60mm |
|||||
Dimension |
1800*1000*1100 |
3200*1000*1100 |
3200*1000*1100 |
6000*1000*1100 |
6000*1400*1200 |
|||||||
