High Quality Greenhouse/poultry Ventilation Fan

FOB Price

US$ 130 - 200 / Set

10 Sets(Min. Order)

Port shanghai port
Payment TermsT/T L/C D/P D/A Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	JM
Model Number	SCFC-7

Product Description

Used in agricultural greenhouses, green gardens and other places, to maintain the constant temperature in the greenhouse, ventilation

Fan-- wet curtain cooling system is the most widely used in the greenhouse in the flower production, the effect is remarkable, the most suitable for the growth of crops cooling way.

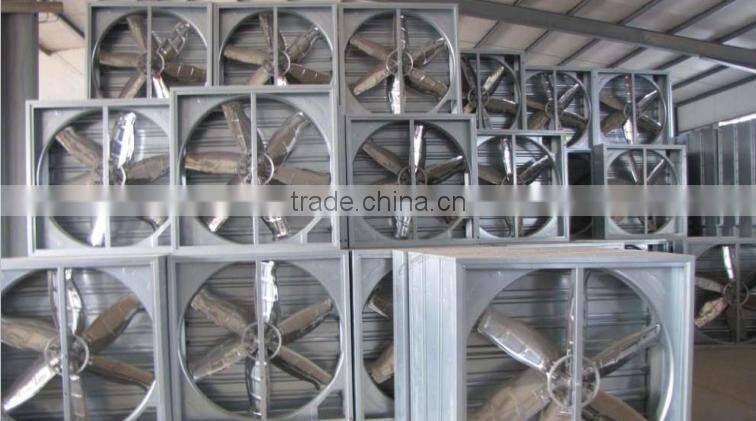

Stainless Steel audio air cooling fan Specifications:

Fan specifications	Blade Diameter （mm）	Fan speed （r / m）	Input power （kw）	Current （A）	Air Volume （m3 / h）	Dimensions （mm）	Weight （kg）
JFD-900E	900	560	0.55	1.5	28000	*10001000450*	46
JFD-1000E	1000	560	0.75	2	36000	*11001100450*	51
JFD-1250E	1250	450	1.1	2.8	46000	*13801380450*	80
JFD-1400E	1400	450	1.5	3.6	56000	*15301530450*	100

Detailed Images

Application

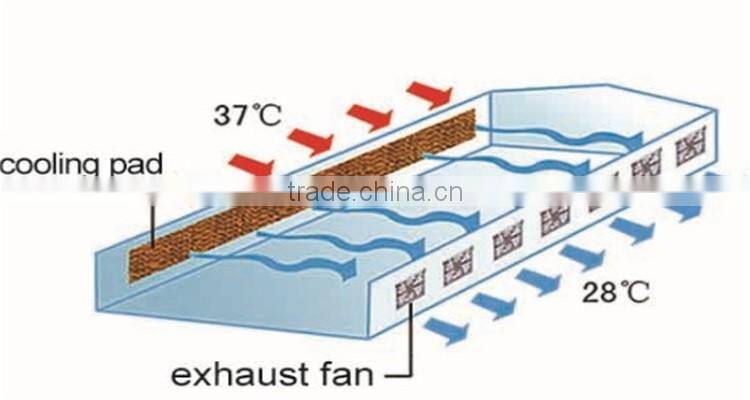

The main equipment of cooling system is wet curtain and negative pressure fan , using the principle of negative pressure pumping and water evaporative cooling.

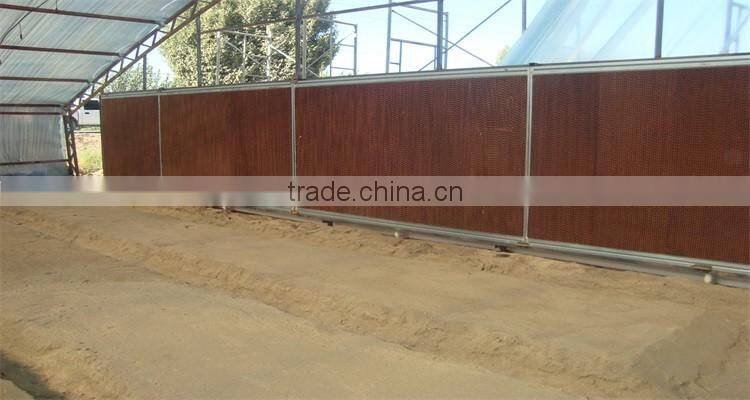

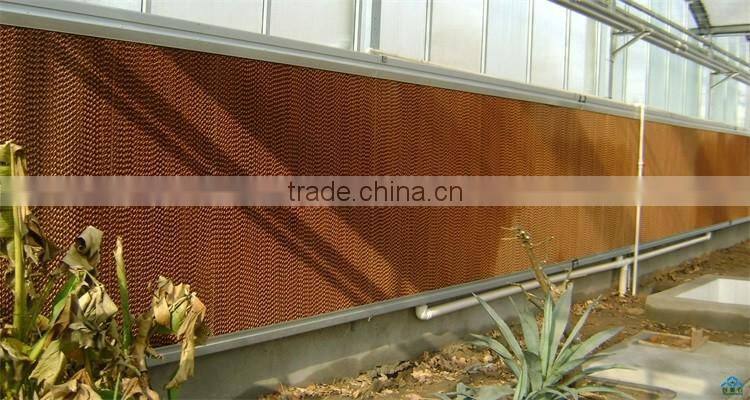

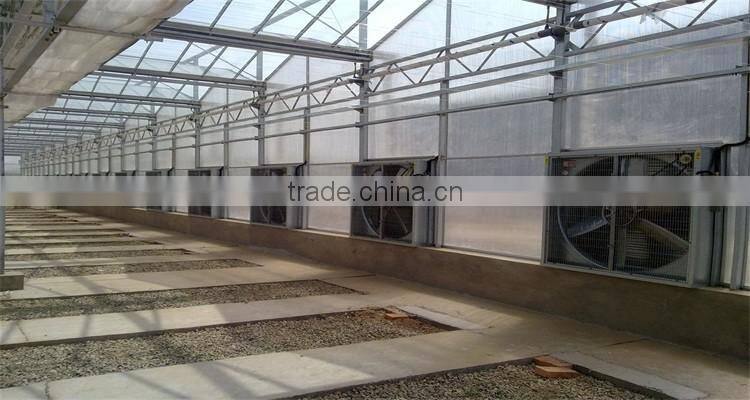

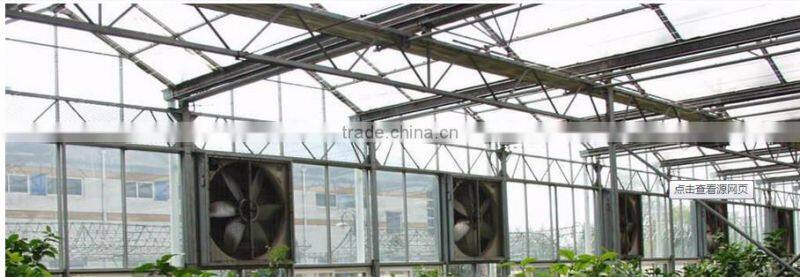

The wet curtain is installed on one side wall of the greenhouse, and the wind machine is installed on the opposite wall of the wet curtain.

Greenhouse other complementary systems:

Shading system (inside , outside sunshade )
Heating system ( philips sodium lamp)
Cooling system (cooling pad , cooling fan)
Heating system (gas, water, coal heating )
Ventilation system (roof window, side window)
Irrigation system ( drop irrigation, micro jet )
Fertilization system (venturi fertilizer, Proportional type fertilizer )

Company Infomation

Sichuan Jingmin technology Co., Ltd is mainly engaged in R & D, production and sales of precision molds, greenhouses, steel processing, water-saving irrigation products, plastic pipe fittings, auto parts, automatic control system of professional firms. We can provide advanced professional design, high quality products and satisfactory service.

Why choose us？

Our team

the company professional to do greenhouse ;We have the most professional team;Perfect service system

Our factory

We have our own factory,We can guarantee the quality and We have the most suitable price;We can design for you according to your requirements

Our Case

Certificates

Our Service
