Specifications
Laser banner machine1.80-160m/h print speed
2.Save 40-50% ribbon
3.Can do offline work
4.Save manual power
80-160m/h Printing Speed Laser Banner Machine
Specification of laser banner machine

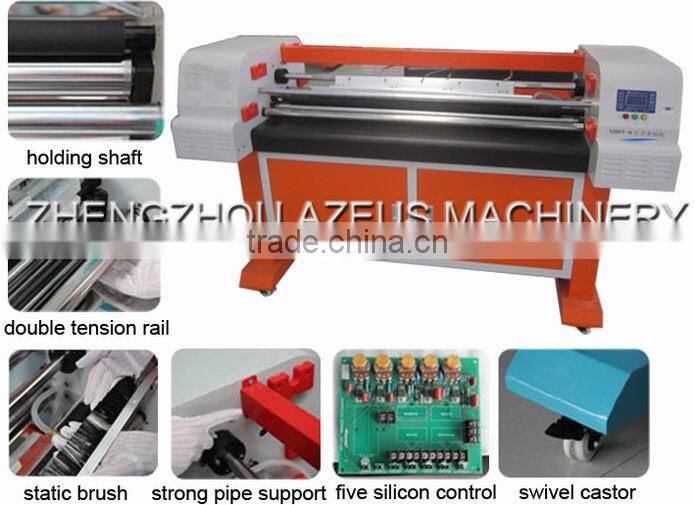

1. With holding shaft, the using life can be lengthen 2-3times.
2. Double tension adjusting: with tension adjustment of stepping shaft and ribbon shaft, the user can adjust the tension anytime to get rid of wrinkle between cloth and ribbon.
3. Static brush: The machine can eliminate static electricity with static brush, and to protect the print head.
4. Strength support of square pipe: can make sure that the machine work for long time stably.
5. Printing method: network interface, USB, SD card, off-line work
6. High speed printing: 80-220m/h
7. Multifunctional control panel: five silicon control which can make printing effect obviously.
8. Swivel Castor: only need one person to operate the machine, which can save manual power.
Details of laser banner machine
Technical parameter of laser banner machine

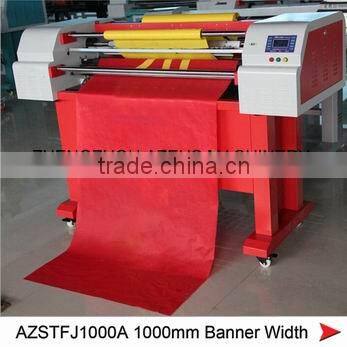

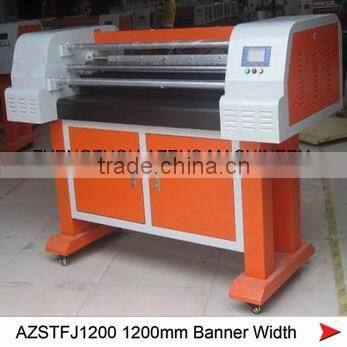

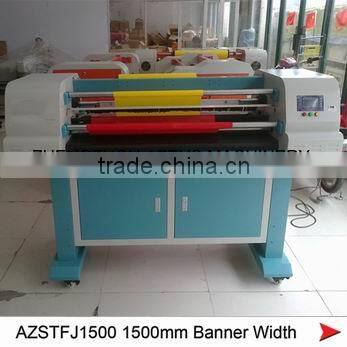

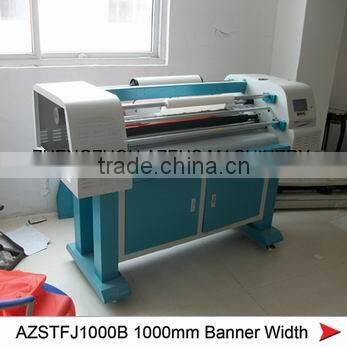

Model | AZSTFJ1000A | AZSTFJ1000B | AZSTFJ1200 | AZSTFJ1500 |
Dimension | 1600x600x1000mm | 1620x700x1160mm | 1860x700x1160mm | 2160x740x780mm |
Banner width | 1000mm | 1000mm | 1200mm | 1500mm |
Actual print width | 768mm | 768mm | 768mm | 1024mm |
Voltage | AC220V/50HZ/60HZ | AC220V/50HZ/60HZ | AC220V/50HZ/60HZ | AC220V/50HZ/60HZ |
Power | 500-800W | 500-800W | 600-1000W | 1000-1500W |
Print speed | 80-160m/h | 120-220m/h | 120-160m/h | 80-160m/h |
Repeat precision | 5mm | 5mm | 5mm | 5mm |
Print media | Thin film, card paper, ordinary cloth | Thin film, card paper, ordinary cloth | Thin film, card paper, ordinary cloth | Thin film, card paper, ordinary cloth |
Print interface | USB off-line print, wireless print | USB off-line print, wireless print | USB off-line print, wireless print | USB off-line print, wireless print |
Weight | 80kg | 90kg | 100kg | 280kg |
Product of laser banner machine
| |
| |

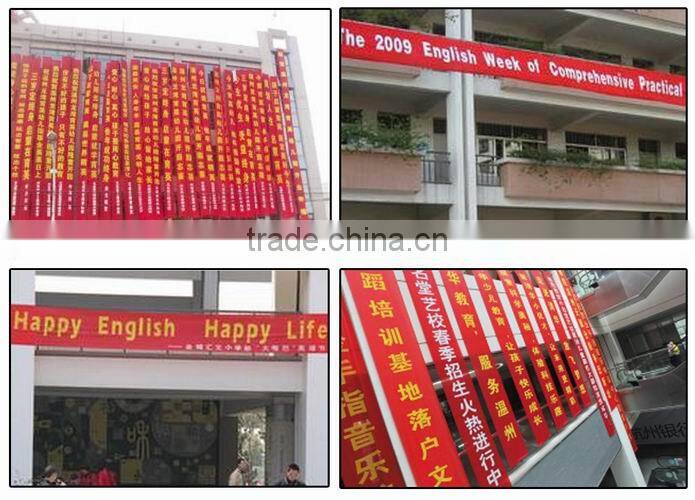

Application of laser banner machine
