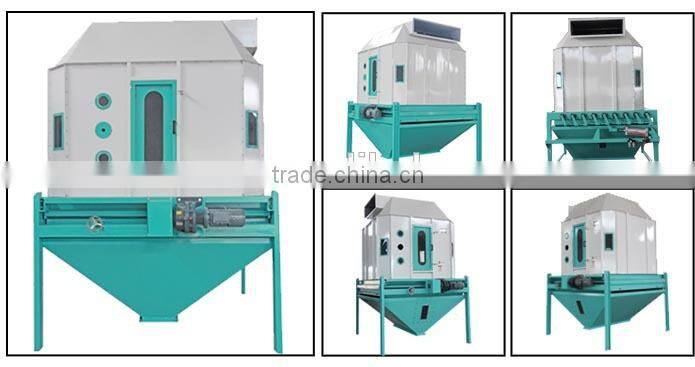

CE Approved Poultry Feed Pellet Cooler

CE Approved Poultry Feed Pellet Cooler photo-1
US$ 6,500 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
AZEUS
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Guangzhou/Tianjin/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name AZEUS
Model Number SKLN6
Type Feed Pellet Machine
Voltage 380V
Power(W) 1.5+1.1KW
Dimension(L*W*H) 2460x3055x3460mm
Certification CE
Warranty 1 year
After-sales Service Provided No overseas service provided

CE Approved Poultry Feed Pellet Cooler



Product Description

Poultry Feed Pellet Cooler Features:
1)  The machine adopts the counter flow cooling principle to cool down the pellets with high temperature and high moisture. Avoiding to the sudden cooling caused by the direct contact between the cold air and materials, which will prevent the surface cracking of the pellets.
2)  No dead angle with the latest design of octagonal cooling chamber.
3)  Feeding via airlockhas large wind area and remarkable cooling effect.
4)  The reciprocating slide valve discharging mechanism is stable and reliable in working and guarantee less residue.
5)  The temperature of pellets after cooling is not +3℃~+5℃ higher than room temperature.

CE Approved Poultry Feed Pellet Cooler



Poultry Feed Pellet Cooler Parameter

ModelSKLN1.5SKLN2.5SKLN4SKLN6SKLN8
Cooling volume1.5m³2.5m³ 4m³ 6m³ 8m³
Capacity3t/h5t/h10t/h15t/h20t/h
Power0.75KW1.1KW1.5KW1.5KW1.5KW
Air lock power1.1KW1.1KW1.1KW1.1KW1.1KW
Dimension 1330x2010x2630 1650x2330x2800 2140x2570x3200 2460x3055x3460 2610x3290x3690
Cooling time≥6~10 minutes

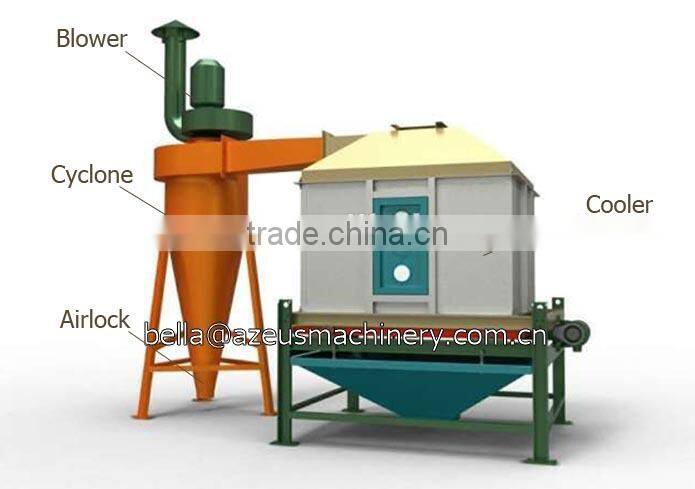

A complete set of poultry feed pellet cooler including: 1*cooler, 1*Cyclone, 1* Blower, 1* Airlock, 1*Electric control cabinet. But you also can choose the equpments among them according to your own needs.

CE Approved Poultry Feed Pellet Cooler

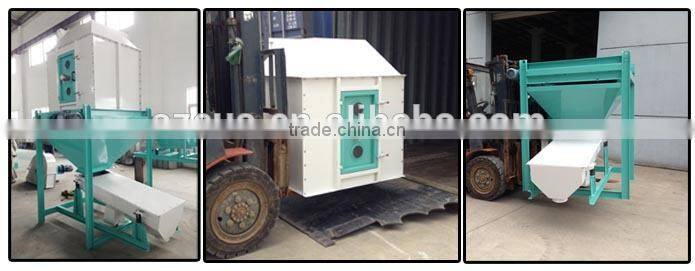

Except for the poultry feed pellet cooler, we also can make combination cooler and sifter for small capacity. Like the following pictures:

CE Approved Poultry Feed Pellet Cooler



FAQ

 1. What is the function of the poultry feed pellet cooler?

The cooler is mainly used to cool down the wood pellets or feed pellets outcoming from pellet machine. To avoid surface cracking of the pellets, so that it can be easy to storage.

 2. What accessory should I need in order to make the cooler functional?

The complete set of cooler is including cooler, cyclone, blower, airlock, electric control cabinet. Of course, you can choose some among them according to your own needs.

 3. The capacity of the cooler on your website is too large, do you have any smaller one?

Yes, we also have smaller capacity, like 200-300kg/h.

 4. Can you deliver the machine to our country?

Yes, we have our own forwarder and the machine can be shipped to the port of your country. Please let me know the port you want to ship to, so that we can quote you the shipping freight.



Packaging & Shipping

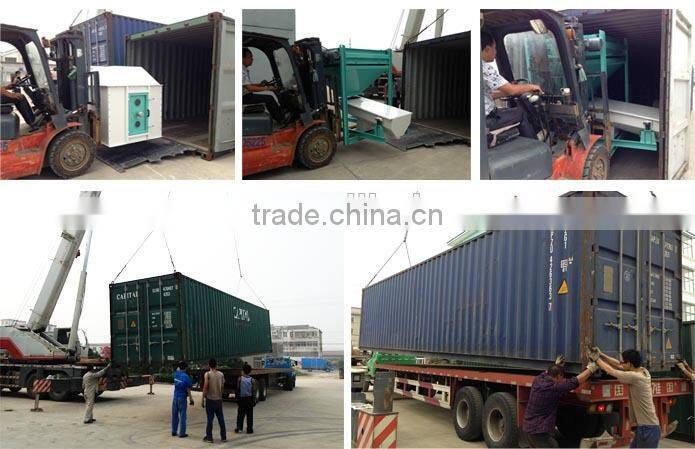

Poultry feed pellet cooler is shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.
