2015 Granule Packing Machine Fruit and Vegetable Packing Machine

2015 Granule Packing Machine Fruit and Vegetable Packing Machine photo-1
US$ 3,950 - 6,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Function:
Filling, Sealing, Wrapping, Other, Filling, Sealing, Wrapping, material filling and packing machine
Application:
Chemical, Food, Other, Medical, Chemical, Food, Machinery & Hardware, Medical
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Tianjin Guangzhou Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Function Filling, Sealing, Wrapping, Other, Filling, Sealing, Wrapping, material filling and packing machine
Application Chemical, Food, Other, Medical, Chemical, Food, Machinery & Hardware, Medical
Packaging Type Bags, Film, Foil, Pouch, Stand-up Pouch
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/50HZ
Power 2.2KW
Place of Origin Henan, China
Brand Name AZEUS
Model Number AZS-EZ320-60
Dimension(L*W*H) (L)1050*(W)750*(H)1820 mm
Certification CE, CE
After-sales Service Provided Engineers available to service machinery overseas

2015 Granule Packing Machine Fruit and Vegetable Packing Machine



Machine application

Features of fruit and vegetable packing machine

* Famous brand PLC control system, wide version touch screen, convenient to operate.
* Film drawing down system and horizontal sealing controlled by servo motor;
* Perfect alarm system to reduce waste;
* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting and finished product delivery when it equips with feeding and measuring equipment;
* The way of bag making: the machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.



Technique Parameters for fruit and vegetable packing machine

Item Model

AZS-EZ320

AZS-EZ420

Max packing speed

75bags/min

65bags/min

Bag-making size

(L)50-200 (W) 50-150mm

(L)60-280(W) 70-180mm

Type of bag making

pillow bag, punched hanging bag

pillow bag, punched hanging bag

Max film width

320mm

420mm

Film thickness

0.04-0.07mm

0.04-0.07mm

Measuring range

0-500ml

0-750ml

Air consumption

0.8Mps 0.25m3/min

0.8Mps 0.25m3/min

Supply voltage

2.2KW 220V 50Hz

2.5KW 220V 50Hz

Dimension

(L)1050×(W)750×(H)1820 mm

(L)1400×(W)800×(H)2150 mm

Machine weight

250kg

300kg































Detailed images

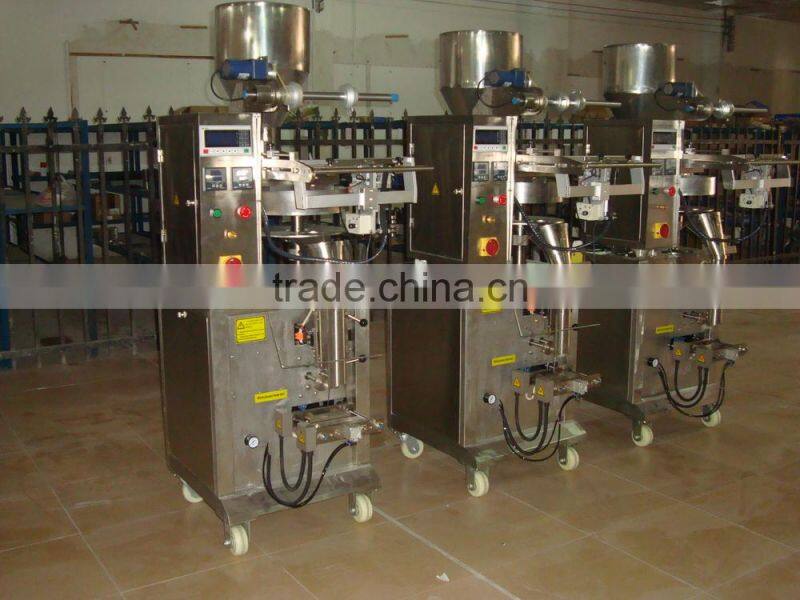

Full stainless steel type fruit and vegetable packing machine

2015 Granule Packing Machine Fruit and Vegetable Packing Machine



Spraying plastics type fruit and vegetable packing machine

2015 Granule Packing Machine Fruit and Vegetable Packing Machine

Packing sample bag for fruit and vegetable packing machine

 2015 Granule Packing Machine Fruit and Vegetable Packing Machine



packing and loading

 1. All machines, which is less than a full container, are packed by the standard wooden case for exporting. So it is safe and strong enough for a long journey from our factory to your place.
2. If all the machines are shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.

2015 Granule Packing Machine Fruit and Vegetable Packing Machine2015 Granule Packing Machine Fruit and Vegetable Packing Machine



Delivery

1. Fruit and vegetable packing machine will be sent to you by sea, by air or even by International courier service.
2. the dievery time is usually 20-25 days upon receipt of your depoist or LC.



2015 Granule Packing Machine Fruit and Vegetable Packing Machine



Payment

We accept different method for payment, just like TT, LC, escrow. You just need to choose one which is conveninet and safe for you.

 2015 Granule Packing Machine Fruit and Vegetable Packing Machine





About us

Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.

We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.

2015 Granule Packing Machine Fruit and Vegetable Packing Machine



Our service

1. the warranty time for fruit and vegetable packing machine is one year from the date you get the machine, except the easy-wear parts.
2. If any parts are found defective in quality in the first year, we shall replace it freely.
3. we are responsible for the smooth operation of the machines. If you have any problem during production, just feel free to contact us. We assure you our soonest response.

2015 Granule Packing Machine Fruit and Vegetable Packing Machine
