Good Quality Automatic Hot Press and Cold Press Oil Mill Machine

Good Quality Automatic Hot Press and Cold Press Oil Mill Machine photo-1

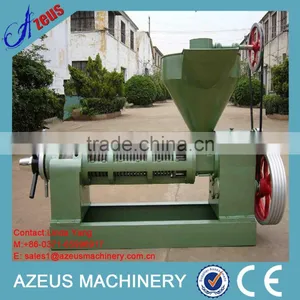

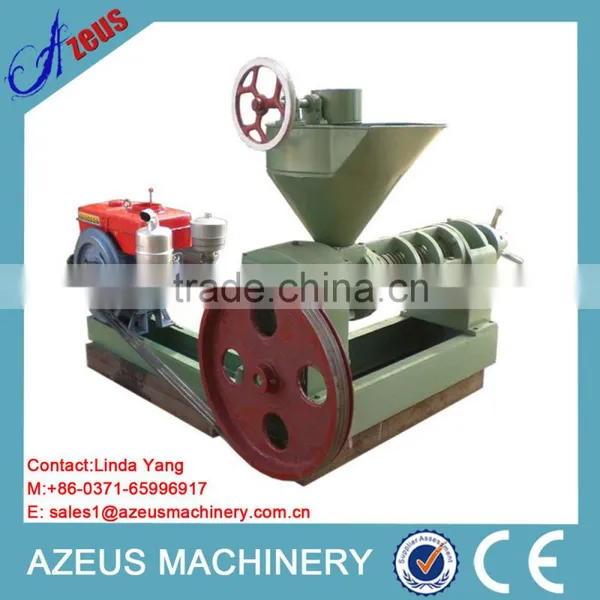

Good Quality Automatic Hot Press and Cold Press Oil Mill Machine photo-2

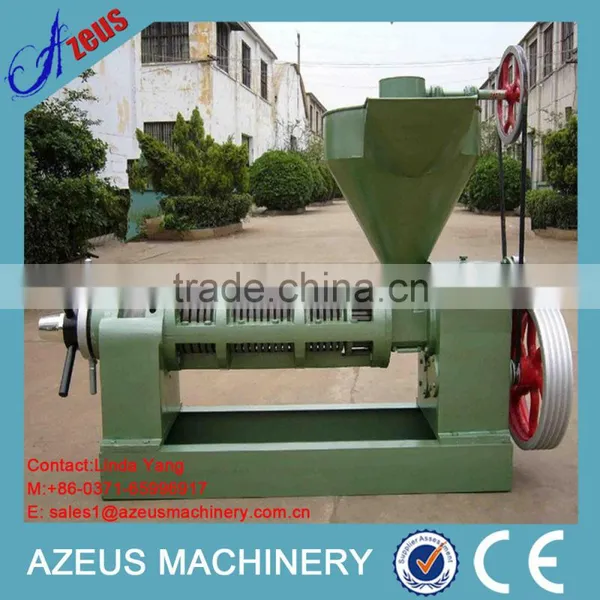

Good Quality Automatic Hot Press and Cold Press Oil Mill Machine photo-3

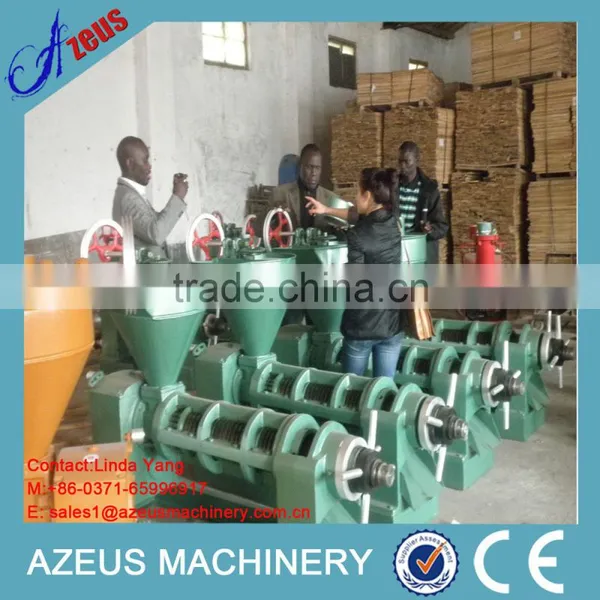

Good Quality Automatic Hot Press and Cold Press Oil Mill Machine photo-4
US$ 1,100 - 4,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Usage:
Other, sesame seed,sunflower seeds, peanut, coconut
Type:
Other, Cold & Hot Pressing Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Usage Other, sesame seed,sunflower seeds, peanut, coconut
Type Other, Cold & Hot Pressing Machine
Automatic Grade Automatic
Production Capacity 1-20T/day
Place of Origin Henan, China
Brand Name AZS avocado oil press
Model Number 6YL-120C
Voltage 380v 50hz 3phase
Power(W) 15KW
Dimension(L*W*H) 2100*700*770mm
Weight 650kg
Certification CE, ISO9001
After-sales Service Provided Engineers available to service machinery overseas

  Good quality automatic hot press and cold press oil mill machine

Product Description

  1. Detail intruction of our oil mill machine

  • Our oil mill machine is an advanced oil pressing machine nowadays in edible oil market. we have two series: Semi-automatic series and Fully-automatic series
  • It is used for both cold and hot oil pressed process from a wide range of oil plants, such as peanuts, rapeseedcotton seedssoybean, grape seedsesamesunflower seedscoconut , flax seeds, black seed, mustardplam kernel and so on.
  • Our oil mill machine enjoys wide popularity in small and large scale oil pressing plants because it can not only press oil but also filter oil by vacuum filtering device, thus saves cooking oil extracting time & cost and simplifies oil pressing.

 2.  Features of our oil mill machine
1) Highly oil yield ! The oil yield is different from differen oil seed.
2) Lower residual rate! The oil left in cake only 6%-8%.
3) Labor & cost saving!  only 1 or 2people can finish the production.
4) Small land using! only 10-20 square meters can meet the need of production.
5) Multifuction! Both suitable for cold press and hot press.
6) Big capacity! The biggest capacity of our oilmachine could reach 20T/D.
7) Covering little space. An area of 10-20m*m workshop is enough, thus the oil machine is suitable for small and medium size oil extruding workshops or professional oil mills.

 3. The good performance of our oil mill machine

Good quality automatic hot press and cold press oil mill machine

Technical parameters

 4. The technical parameters of our oil mill machine

   Semi-automatic Oil Machine

Model

Power

Capacity

Packing Size

 weight

6YL-68

5.5kw

50kg/h

3-4T/d

900*530*760MM

160KG

6YL-68C

5.5KW

50kg/h

3-5T/d

880*480*760MM

150KG

6YL-80

5.5KW

100kg/h

3-5T/d

1810*560*735MM

370KG

6YL-95

7.5KW

150kg/h

4-6T/d

1910*610*765MM

480KG

6YL-100

7.5KW

200kg/h

6-8T/d

1910*610*765MM

480KG

6YL-120

11KW

250kg/h

9-12T/d

2060*610*760MM

650KG

6YL-120-I

15KW

300kg/h

15-20T/d

2100*700*770MM

650KG

6YL-130

18.5KW

500kg/h

9-12T/d

2280*700*770MM

850KG

6YL-160

22KW

800kg/h

15-20T/d

2400*700*770MM

1050KG



Fully-automatic Oil Machine

Model

Power

Capacity

Packing Size

 weight

6YL-30A

1.5kw

20-30kg/h

0.5-0.7T/d

700*700*900mm

126KG

6YL-70A

4kw

50kg/h

1.2T/d

1000*1000*1250mm

250KG

6YL-80A

5.5kw

150kg/h

3-4T/d

2050*980*1700mm

820KG

6YL-95A

7.5KW

200kg/h

3-5T/d

2100*990*1750mm

900KG

6YL-100A

7.5KW

200kg/h

3-5T/d

2100*990*1750mm

900KG

6YL-120A

11KW

250kg/h

4-6T/d

2250*1100*1750mm

1030KG

6YL-120CA

15KW

300kg/h

6-8T/d

2250*1100*1850mm

1080KG

6YL-130A

18.5KW

500kg/h

9-12T/d

2500*1200*1900mm

1260KG

6YL-160A

22KW

800kg/h

15-20T/d

2550*1300*1950mm

1650KG



5. The picture show of different model of our oil mill machine

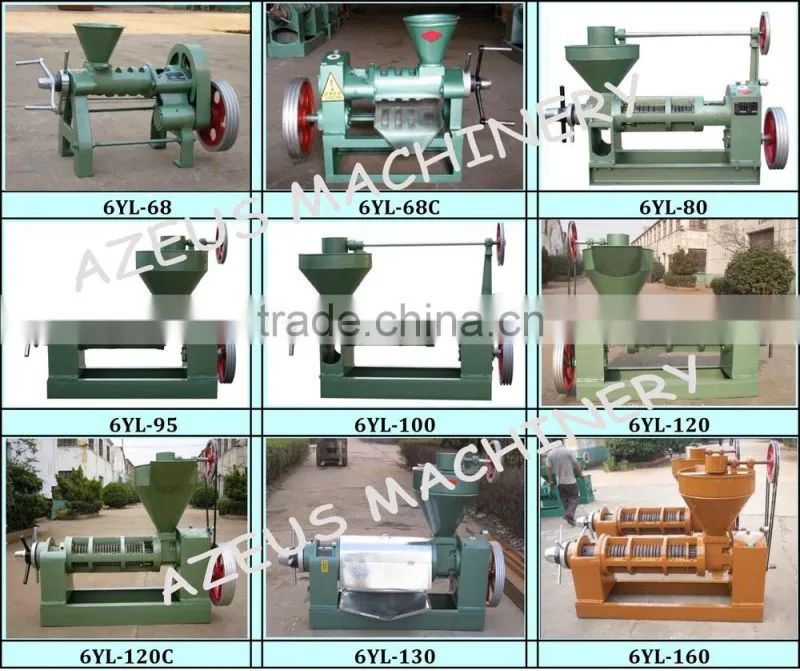

Semi-automatic series oil machine Good quality automatic hot press and cold press oil mill machine

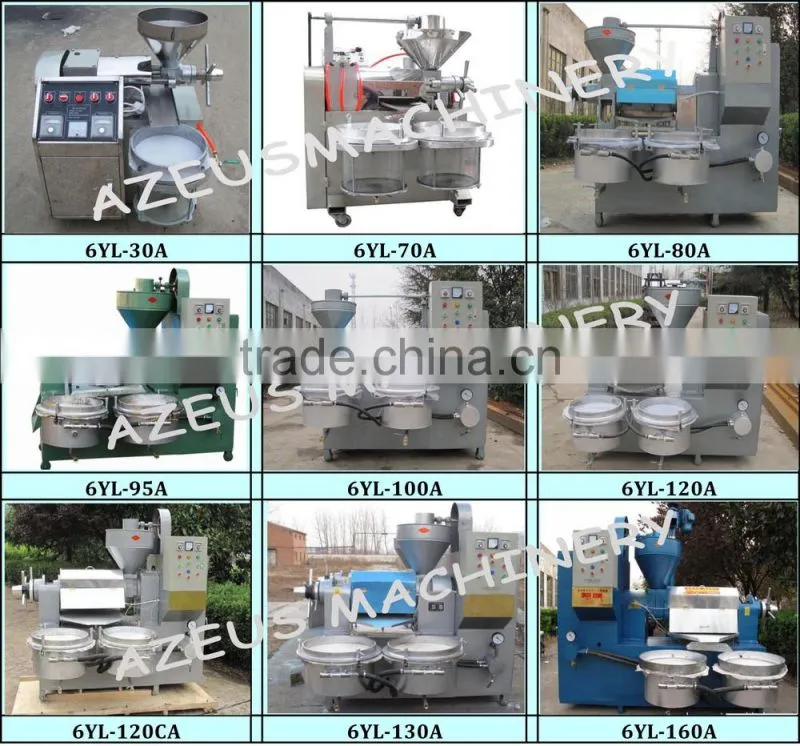

Fully-automatic series oil machine

Good quality automatic hot press and cold press oil mill machine



6. Application seeds of our oil mill machine

Good quality automatic hot press and cold press oil mill machine



 7. The package and delivery of our oil mill machine

Good quality automatic hot press and cold press oil mill machine



 8. The whole oil production line
 Good quality automatic hot press and cold press oil mill machine



 9. The oil Refinery plant.



Good quality automatic hot press and cold press oil mill machine



Packaging & Shipping

1. All of the oil machine, which are less than a full container, are packed by the standard wooden case for exporting. So it is safe and strong enough for a long journey from our factory to your place.

2. If all the oil machines are shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.

Good quality automatic hot press and cold press oil mill machine

Delivery

1. The seeds oil machine will be sent to you by sea, by air or even by International courier service.
2. The dievery time is usually 20-25 days upon receipt of your depoist or LC.

 Good quality automatic hot press and cold press oil mill machine

Our Services

1. The warranty time is one year from the date you get the machine, except the easy-wear parts.
2. If any parts are found defective in quality in the first year, we shall replace it freely.
3. We are responsible for the smooth operation of the oil machine. If you have any problem during production, just feel free to contact us. We assure you our soonest response.

Company Information

Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of oil machine. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.

Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.

We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.

Good quality automatic hot press and cold press oil mill machine

Payment

We accept different method for payment, just like TT, LC, escrow. You just need to choose one which is conveninet and safe for you.

Good quality automatic hot press and cold press oil mill machine



FAQ

 FAQ about oil mill machine

1. What the different of your Semi-automatic and Fully-automatic avocado oil press?
Using Semi-automatic series oil machine, we could get crude oil.

Using Fully-automatic series oil machine, we could get cleaning and edible oil, because this series machine have the vacuum oil filter.

2. Have your oil press machine passed CE Certificate?
Yes, all of our cooking oil machine had passed CE Certificate
3. Are you manufacturer or trading company?
We are manufacturing and trading company, and will supply you high quality products.
4. What is the oil yield of your oil machine?
It depends on the oil content of raw material, because the different oil seed has different oil yield.

5. Can you supply the whole oil pruduction line?

Yes, we could recommend and supply the best suitable oil production line according to your demand.



8. We will appreciated if these following 4 tips contained in your inquiry:

Tips 1. The raw material is:
Tips 2. Cool press or hot press:
Tips 3. The model you prefer is:
Tips 4. The capacity of the machine you need is:

Please feel free to ask us any questions with our oil mill machine
