Specifications
Poultry feed machine1.Capacity 3-12t/h
2.Imported bearing
3.Pellet dia 1-10mm
4.CE Approved

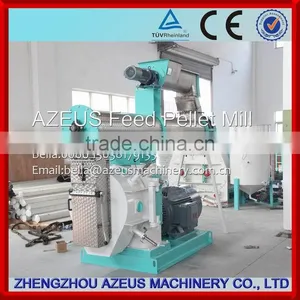

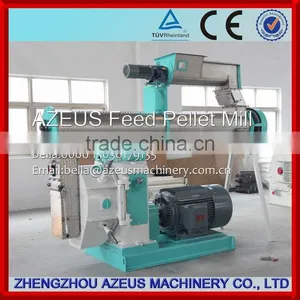

Poultry Feed Machine With Overload Protection System
Specifications of poultry feed machine
1) This series machine suitable for making all kinds of animal feedstuff. Which capacity 1-20t/h for feed factory .
2) The machines can be match different size of ring die hole size , such as φ1.0, φ1.2, φ1.5,φ2.0, φ2.5, φ3.0, φ3.5, φ4.0, φ4.5, φ5.0, φ6.0, φ8.0, always for making shrimp, fish feed to use for φ1.0--3.5 ring die ; chicken feed for φ3.0; Swine feed for φ3.0--4.5; Cattle, horse for φ6.0--8.0).
3) The machine adopt imported bearings, the motor brand is China famous brand.
4) Driven by gear, more strong than by belt, and the capacity 10% higher than by belt .
5) The machine also matched the safety device, once overload, the safety pin will crack, to protecting the machine lifetime.
6) It has low noise during the production.
7) And its feeder can be regulated a variable speed controlled to meet different outputs requirements.
8) It is with magnet and overload protection system, which can protect machine well during production
9) We have oversized conditioner and jacked conditioner for choosing to enhance the effect of the pellet condition.
Parameter of poultry feed machine
Model |
Capacity |
Main Power |
Feeding Power |
Conditioner Power |
Ring die inner diameter |
AZS-SZLH250 |
1-2t/h |
22kw |
0.75kw |
2.2kw |
φ250mm |
AZS-SZLH320 |
2-5t/h |
37kw |
0.55kw |
2.2kw |
Φ320mm |
AZS-SZLH350 |
1.5-8t/h |
55kw |
0.75kw |
2.2kw |
Φ350mm |
AZS-SZLH400 |
2-10t/h |
75/90kw |
0.75kw |
2.2kw |
Φ400mm |
AZS-SZLH420 |
3-12t/h |
110kw |
1.5kw |
5.5kw |
Φ420mm |
AZS-SZLH508 |
4-20t/h |
132/160kw |
1.5kw |
7.5kw |
Φ508mm |
Different model of poultry feed machine
We have different model of this series machine which can meet your different capacity.
|
|
|
|
|
|
Spare parts of poultry feed machine
Ring die mould, roller, Feeder, conditioner and chute are made of stainless steel with long service life.
Final animal feed pellets
Making different animal feed pellets, such as chicken feed, cattle feed, rabbit feed, fish feed, shrimp feed etc.
Package for poultry feed machine
After inspection and send machine pictures to our clients, the machines are packed in wooden case to ensure the safety during transportation. Or load into 20GP container.
__________________________________________________________________________

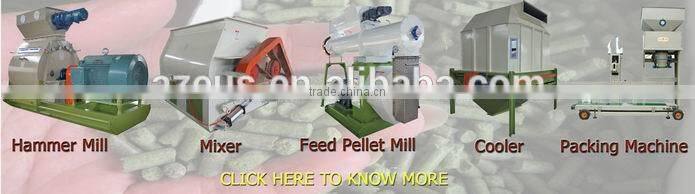

Feed pellet plant/production line
The main process of the pllet line includes: (Material storage System)-- Material receiving System-- Crushing System-- Mixing System-- Pelletizing System-- Packing System
FAQ
1. What is the capacity of ring die pellet machine and pellet line?
We have different capacity of ring die feed pellet machine: 1t/h, 3.0t/h, 5.0t/h, 10t/h, 15t/h etc.. And the capacity of the production line can be ranged from 1t/h, 3.0t/h, 5.0t/h, 10t/h, 15t/h etc..
2. What is the material of the ring die mould and roller?
We have two kinds of material: stainless steel and alloy steel. But it is better to use stainless steel material because of its long using life and can make good effect of feed pellets.
3. The oil lubricating system is automatic or semi-automatic?
Generally, the machine is with semi-automatic oil lubricating system. And it also can be with automatic type according to your request.
Please do not hesitate to contact BELLA WU, if you need any more information or have any other questions. We will be at your service at any time.
