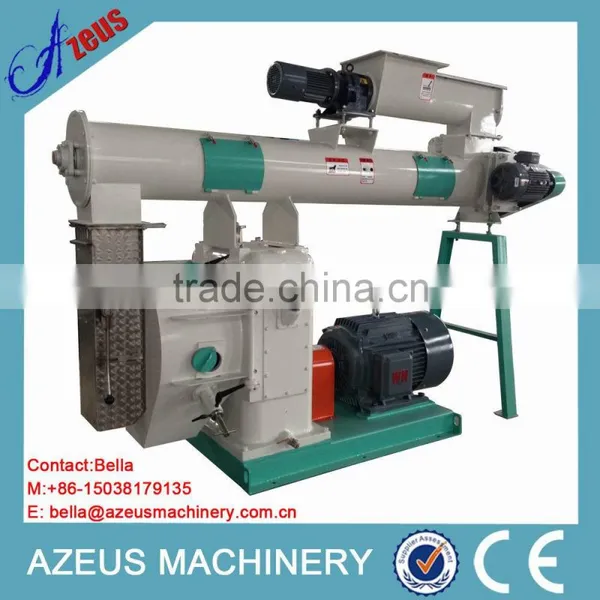

Stainless Steel Sheep Feed Pellet Machine

Stainless Steel Sheep Feed Pellet Machine photo-1
US$ 19,150 - 20,250 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
AZEUS
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao/Guangzhou/Tianjin/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name AZEUS
Model Number AZS-SZLH350
Type Other, Feed Pellet Machine, Ring die
Voltage 380V
Power(W) 55KW
Dimension(L*W*H) 3200x1100x1700mm
Weight 2100 kg
Certification CE
Warranty One year
After-sales Service Provided Overseas service center available

Stainless Steel Sheep Feed Pellet Machine

Product Description

Animal Feed Pellets Raw Material

The main material is maize, wheat, rice, beans, sorghum, oats, etc.. And can add fish meal, wheat bran or only little grass, alfalfa etc..

Stainless Steel Sheep Feed Pellet Machine

Sheep Feed Pellet Machine Features

1)    This series sheep feed pellet machine suitable for making all kinds of animal feedstuff. Which capacity 1-20t/h for feed factory .

2)    The machines can be match different size of ring die hole size , such as φ1.0, φ1.2, φ1.5,φ2.0, φ2.5, φ3.0, φ3.5, φ4.0, φ4.5, φ5.0, φ6.0, φ8.0, always for making shrimp, fish feed to use for φ1.0--3.5 ring die ; chicken feed for φ3.0; Swine feed for φ3.0--4.5; Cattle, horse for φ6.0--8.0).

3)    The machine adopt imported bearings, the motor brand is China famous brand.

4)    Driven by gear, more strong than by belt, and the capacity 10% higher than by belt .

5)    The sheep feed pellet machine also matched the safety device, once overload, the safety pin will crack, to protecting the machine lifetime.

6)    It has low noise during the production.

7)    And its feeder can be regulated a variable speed controlled to meet different outputs requirements.

8)    It is with magnet and overload protection system, which can protect machine well during production

9)    We have oversized conditioner and jacked conditioner for choosing to enhance the effect of the pellet condition.

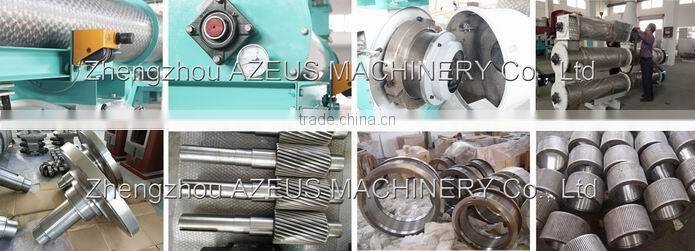

Details & Spare Parts of Sheep Feed Pellet Machine

Stainless Steel Sheep Feed Pellet Machine



Sheep Feed Pellet Machine Parameter

Model

Capacity

Main Power

Feeding Power

Conditioner Power

Ring die inner diameter

AZS-SZLH250

1-2t/h

22kw

0.75kw

2.2kw

φ250mm

AZS-SZLH320

2-5t/h

37kw

0.55kw

2.2kw

Φ320mm

AZS-SZLH350

1.5-8t/h

55kw

0.75kw

2.2kw

Φ350mm

AZS-SZLH400

2-10t/h

75/90kw

0.75kw

2.2kw

Φ400mm

AZS-SZLH420

3-12t/h

110kw

1.5kw

5.5kw

Φ420mm

AZS-SZLH508

4-20t/h

132/160kw

1.5kw

7.5kw

Φ508mm

AZS-SZLH558

6-22t/h

160/180/200kw

2.2kw

7.5kw

Φ558mm

AZS-SZLH67810-30t/h220/250kw2.2kw11kw Φ678mm
AZS-SZLH76812-35t/h280/315kw2.2kw15kw Φ768mm

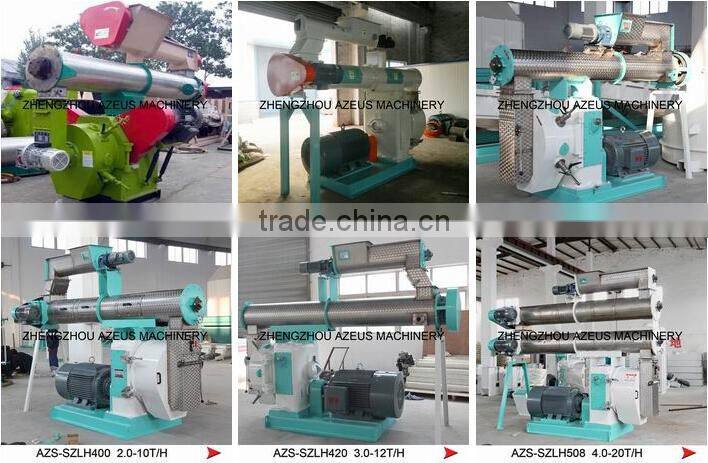

Different Models of Sheep Feed Pellet Machine

Stainless Steel Sheep Feed Pellet Machine



Final Animal Feed Pellets

Making different animal feed pellets, such as chicken feed, cattle feed, rabbit feed, fish feed, shrimp feed etc.

Stainless Steel Sheep Feed Pellet Machine

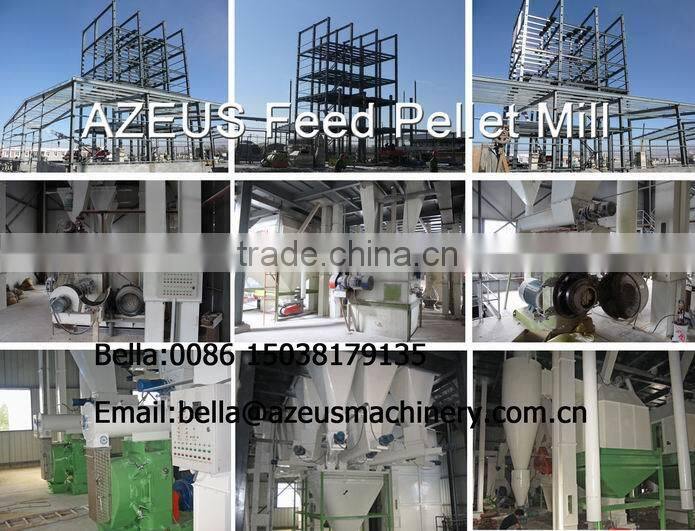

Complete Animal Feed Pellet Production Line

The main process of the pllet line includes: (Material storage System)-- Material receiving System-- Crushing System-- Mixing System-- Pelletizing &Cooling System-- Packing System

Stainless Steel Sheep Feed Pellet Machine



Stainless Steel Sheep Feed Pellet Machine



Delivery

1. The sheep feed pellet machine will be sent to you by sea, by air or even by International courier service.
2. The dievery time is usually 20-25 days upon receipt of your depoist or LC.

Stainless Steel Sheep Feed Pellet Machine



Payment Terms

We accept different method for payment, just like TT, LC, escrow. You just need to choose one which is conveninet and safe for you.

Stainless Steel Sheep Feed Pellet Machine

Packing & Loading

1. All machines, which is less than a full container, are packed by the standard wooden case for exporting. So it is safe and strong enough for a long journey from our factory to your place.
2. If all the machines are shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.

Stainless Steel Sheep Feed Pellet Machine

Our Services

1. The warranty time is one year from the date you get the machine, except the easy-wear parts.
2. If any parts are found defective in quality in the first year, we shall replace it freely.
3. We are responsible for the smooth operation of the machines. If you have any problem during production, just feel free to contact us. We assure you our soonest response.

Company Information

Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.

We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
