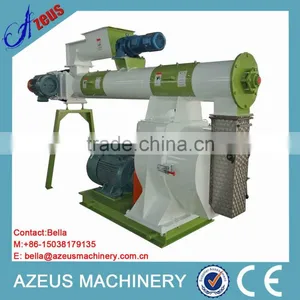

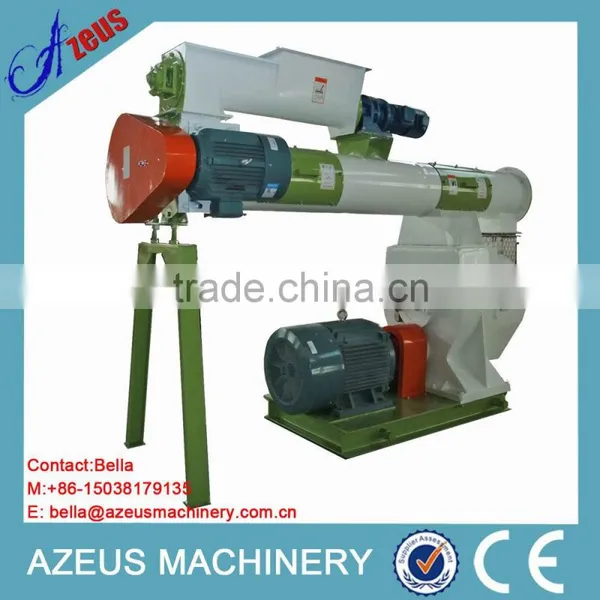

Poultry Equipment Livestock Feed Mill Machine

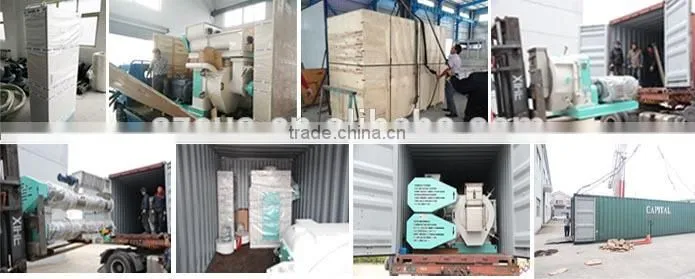

Wooden case

Poultry Equipment Livestock Feed Mill Machine

Livestock Feed Mill Machine Features

1)    This series livestock feed mill machine suitable for making all kinds of animal feedstuff. Which capacity 1-20t/h for feed factory .

2)    The machines can be match different size of ring die hole size , such as φ1.0, φ1.2, φ1.5,φ2.0, φ2.5, φ3.0, φ3.5, φ4.0, φ4.5, φ5.0, φ6.0, φ8.0, always for making shrimp, fish feed to use for φ1.0--3.5 ring die ; chicken feed for φ3.0; Swine feed for φ3.0--4.5; Cattle, horse for φ6.0--8.0).

3)    The machine adopt imported bearings, the motor brand is China famous brand.

4)    Driven by gear, more strong than by belt, and the capacity 10% higher than by belt .

5)    The livestock feed mill machine also matched the safety device, once overload, the safety pin will crack, to protecting the machine lifetime.

6)    It has low noise during the production.

7)    And its feeder can be regulated a variable speed controlled to meet different outputs requirements.

8)    It is with magnet and overload protection system, which can protect machine well during production

9)    We have oversized conditioner and jacked conditioner for choosing to enhance the effect of the pellet condition.

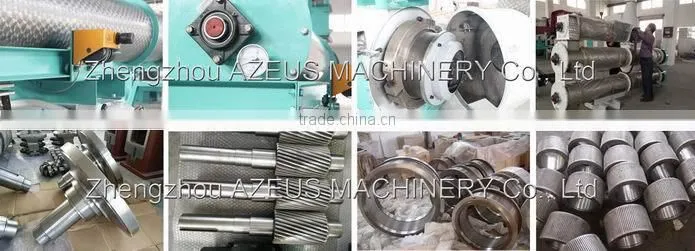

Details of Livestock Feed Mill Machine

Livestock Feed Mill Machine Parameter

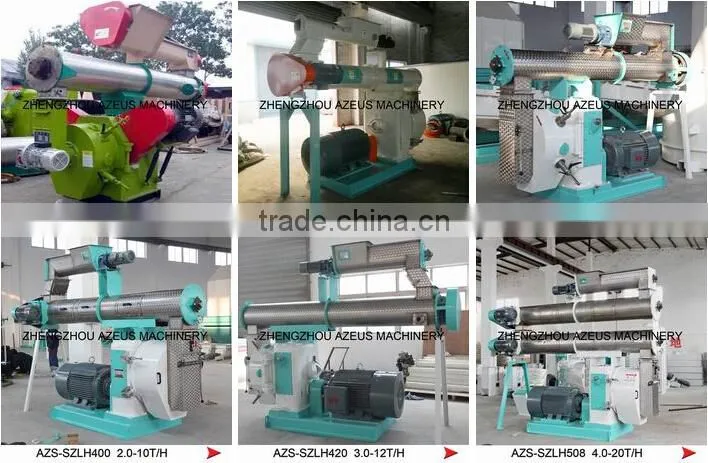

Different Models of Livestock Feed Mill Machine

Final Animal Feed Pellets

Making different animal feed pellets, such as chicken feed, cattle feed, rabbit feed, fish feed, shrimp feed etc.

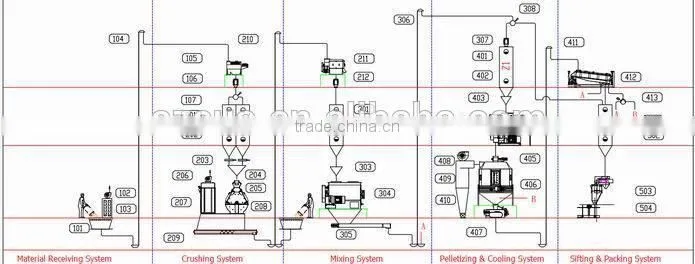

Flow Chart of Animal Feed Production Line

(1) Material receiving System  Generally, the semi automatic line or small capacity line is receiving the materials by pit. Large capacity will be quipped with silos to storage materials. Then the material is fed into the next step by bucket elevator. Sometimes, granular pre-cleaning machine is necessary.

(2) Crushing System  The hammer mill will grind the material, like maize, wheat, barely into powder. Secondly, the powder pre-cleaning machine will separate the residual.

(3) Mixing System   The mixer will mix the powder materials and other additives evenly. The liquid adding system can be added to the mixer machine.

(4) Pelletizing & Cooling System  The livestock feed mill machine will process the mixed powder materials into feed pellets. And the feed pellets is cooled through cooler to avoid the feed surface cracking. The crumbler can be added to process the feed pellets into small granular pieces, which can be added according to customers' request.

(5) Sifting & Packing System  The sifter will separate the standard pellets and powder, so that the powder can be re-used. Finally, the feed pellets is packed into plastic bags by the automatic packing machine. The weight range is 5kg, 10kg, 15kg, 20kg, 25kg and so on.

In order to suggest you right pellet machine, and help to design the appropriate and economic feed production line. Please confirm the following questions:

1. The raw material is_______________

2. The finished feed pellet diameter is__________________

3. The capacity is_______________________
