Hot Air Fruit and Vegetable Drying Machine
Brief introduction of the fruit and vegetable drying machine:
1. This fruit and vegetable drying machine is widely used for dehydration of vegetable, pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry products. Such as vegetables, fruits,fishes,medicines, Chinese herbs, particles, granules, packing bottle, pigment dyes, sausages,
plastic resins, and baking finish etc.
2. Two types for your choice: stainless steel 304 both inside and outside are OR stainless steel 304 inside and carbon steel outside
3. Stainless steel tray size is 640x460x45mm, there are 3 types of trays as per the raw materials you dry:
4. The material of heat preservation: fiberglass cotton thickness 80mm
5. Stainless steel trolley, easy to feed in and take out:
6. Energy-saving axial flow fan: each pc with power 0.45kw for single phase voltage and 0.75kw for three phase voltage.
7. Heat source: steam OR electricity. You need to prepare a bolier for steam heating, and no need for anything if for electricity heating.
8. Temperature is from 50°C to 140°C for steam heating and 50-350°C for electricity heating.
9. digital display: 1 set
Main technical parameter of the fruit and vegetable drying machine:
| Model | Capacity | Power | Thermal area | Air Volume | Tray qty | Trolley Qty | N.W. | Dimension | |
| kg/batch | Kw | m2 | m3/h | pcs | sets | kg | mm | ||
| RXH-14-C CT-C-IA | 50-60 |
0.45/0.75(air fan) 9(heating) |
10 | 3400 | 24 | 1 | 900 | 1400*1200*2000 | |
| RXH-14-C CT-C-I | 100-120 |
0.45/0.75(air fan) 15(heating) |
20 | 3450 | 48 | 2 | 1200 | 2630x1200x2000 | |
| RXH-27-C CT-C-II | 200-240 |
0.9/1.5kw(air fan) 30(heating) |
40 | 6900 | 96 | 4 | 1600 | 2300x2200x2000 | |
| RXH-41-C CT-C-III | 300-360 |
1.35/2.25kw(air fan) 45kw(heating) |
80 | 10350 | 144 | 6 | 2200 | 3300x2200x2000 | |
| RXH-54-C CT-C-IV | 400-480 |
1.8/3kw(air fan) 60kw(heating) |
100 | 13800 | 192 | 8 | 2900 | 4460x2200x2290 | |

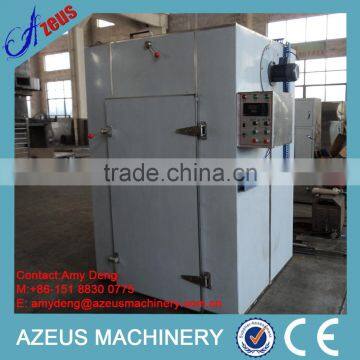

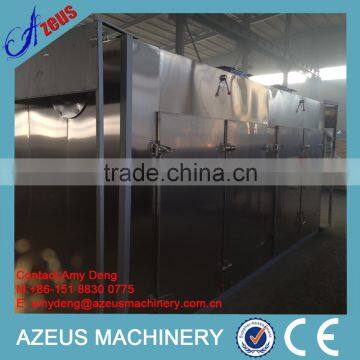

Detailed pictures of the fruit and vegetable drying machine:
Stainless steel 304 both inside and outside:
RXH-14-C CT-C-IA 50-60kg/batch
RXH-14-C CT-C-I 100-120kg/batch
RXH-27-C CT-C-II 200-240kg/batch
RXH-41-C CT-C-III 300-360kg/batch
RXH-54-C CT-C-IV 400-480kg/batch
1. For the models CT-C-IA/I/II/III fruit and vegetable drying machine, they are packed by the standard wooden case for exporting with carbon steel frame inside.
2. For the model CT-C-IV fruit and vegetable drying machine, it is packed in a 20'GP container with carbon steel frame inside.
1. the warranty time is one year from the date you get the fruit and vegetable drying machine, except the easy-wear parts.
2. If any parts are found defective in quality in the first year, we shall replace it for free.
3. we are responsible for the smooth operation of the machines. If you have any problem during production, just feel free to contact us. We assure you our soonest response.
Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.
We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
We accept different method for payment, just like TT, LC, escrow. You just need to choose one which is convenient and safe for you.
For more details about the fruit and vegetable drying machine, please feel free to contact me:
Amy Deng
Zhengzhou Azeus Machinery Co.,Ltd
TEL: +86-371-65996917
FAX:+ 86-371-65903401
Mobile/WhatsApp/WeChat: +86-151 8830 0775
Skype: amy.denghn
Email: amydeng at
