Industrial Tray Dryer With Hot Air Circulation For Fruit and Vegetable
Brief introduction of the industrial tray dryer:
1. This industrial tray dryer is widely used for dehydration of vegetable, pharmaceutical, chemical, food, agricultural and sideline products, aquatic products, light industry, heavy industry products. Such as vegetables, fruits,fishes,medicines, Chinese herbs, particles, granules, packing bottle, pigment dyes, sausages,
plastic resins, and baking finish etc.
2. Two types for your choice: stainless steel 304 both inside and outside are OR stainless steel 304 inside and carbon steel outside
3. Stainless steel tray size is 640x460x45mm, there are 3 types of trays as per the raw materials you dry:
4. The material of heat preservation: fiberglass cotton thickness 80mm
5. Stainless steel trolley, easy to feed in and take out:
6. Energy-saving axial flow fan: each pc with power 0.45kw for single phase voltage and 0.75kw for three phase voltage.
7. Heat source: steam OR electricity. You need to prepare a bolier for steam heating, and no need for anything if for electricity heating.
8. Temperature is from 50°C to 140°C for steam heating and 50-350°C for electricity heating.
9. digital display: 1 set
Main technical parameter of the industrial tray dryer:
| Model | Capacity | Power | Thermal area | Air Volume | Tray qty | Trolley Qty | N.W. | Dimension | |
| kg/batch | Kw | m2 | m3/h | pcs | sets | kg | mm | ||
| RXH-14-C CT-C-IA | 50-60 |
0.45/0.75(air fan) 9(heating) |
10 | 3400 | 24 | 1 | 900 | 1400*1200*2000 | |
| RXH-14-C CT-C-I | 100-120 |
0.45/0.75(air fan) 15(heating) |
20 | 3450 | 48 | 2 | 1200 | 2630x1200x2000 | |
| RXH-27-C CT-C-II | 200-240 |
0.9/1.5kw(air fan) 30(heating) |
40 | 6900 | 96 | 4 | 1600 | 2300x2200x2000 | |
| RXH-41-C CT-C-III | 300-360 |
1.35/2.25kw(air fan) 45kw(heating) |
80 | 10350 | 144 | 6 | 2200 | 3300x2200x2000 | |
| RXH-54-C CT-C-IV | 400-480 |
1.8/3kw(air fan) 60kw(heating) |
100 | 13800 | 192 | 8 | 2900 | 4460x2200x2290 | |

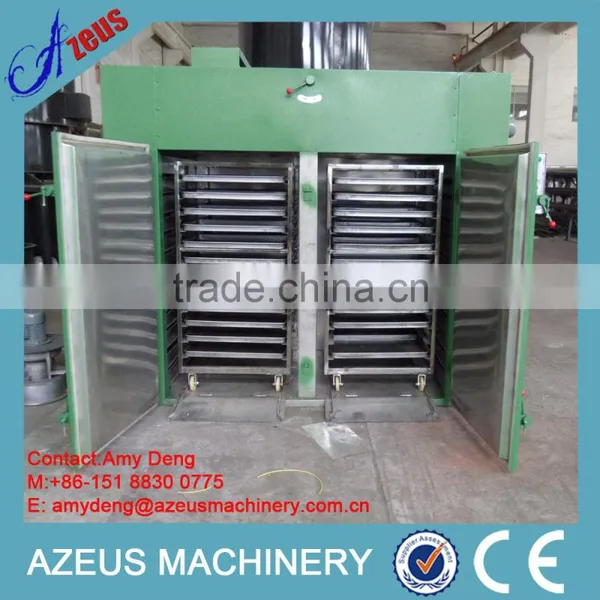

Detailed pictures of the industrial tray dryer:

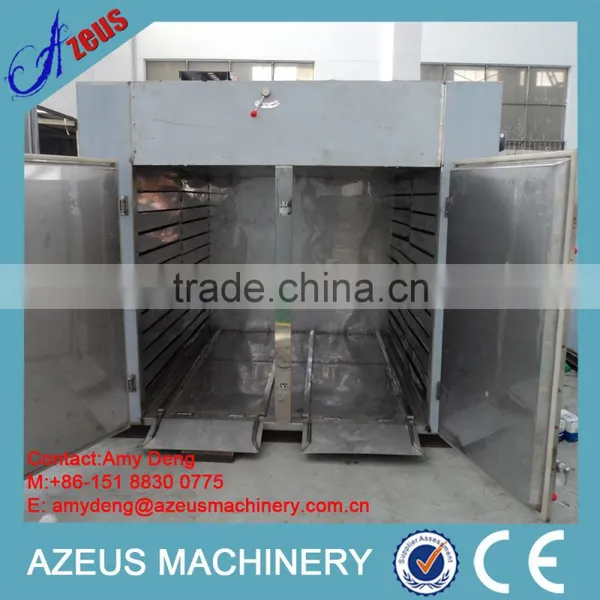

Stainless steel 304 both inside and outside:
RXH-14-C CT-C-IA 50-60kg/batch
RXH-14-C CT-C-I 100-120kg/batch
RXH-27-C CT-C-II 200-240kg/batch
RXH-41-C CT-C-III 300-360kg/batch
RXH-54-C CT-C-IV 400-480kg/batch
1. For the models CT-C-IA/I/II/III industrial tray dryer, they are packed by the standard wooden case for exporting with carbon steel frame inside.
2. For the model CT-C-IV industrial tray dryer, it is packed in a 20'GP container with carbon steel frame inside.
1. the warranty time is one year from the date you get the industrial tray dryer, except the easy-wear parts.
2. If any parts are found defective in quality in the first year, we shall replace it for free.
3. we are responsible for the smooth operation of the machines. If you have any problem during production, just feel free to contact us. We assure you our soonest response.
