10TPH Capacity Wood Chipping Machine
Wood Chipping Machine Introduction
Wood chips are required as the starting material in the wood processing line, which places wood chipping machine in an indispensable role in the wood processing industry. With the high strength steel, double feeding system, the wood chipping machine is mainly suitable for processing undersized logs, wood residue (twigs, branches) and fiber agro waste such as hemp pole, reed stalks, bamboo etc. Distinct design, compact structure and simple operation make wood chipping machine enjoy popularity during wood processing industry and biofuel processing industry.
Wide Application of Wood Chipping Machine
With advanced structure and special blades layout, the wood chipping machine is technically suitable for undersized logs processing. In fact, the drum wood chipper can process a variety of materials. The common raw materials for the drum wood chipper are undersized wood logs, wood branches, wood barks, waste board.
Wood Chipping Machine Features
1.Compact structure, simple operation, the drum wood chipper has a wide application for wood materials chipping and biomass materials processing.
2. Adopting the double roller feeding system, the drum wood chipper has a higher efficiency than the common one.
3. The chipper body is made of high strength steel, firm, shock-resistant, with less noise.
4. The wood chipping machine can process wood chips with a variety of size and thickness for different requirements.
5. Special design and reliable blades layout, the drum wood chipper works more efficiently. The wood chips is of even length and uniform thickness.
6. With the hydraulic buffer system, the maintenance of the chipping machine is simple.

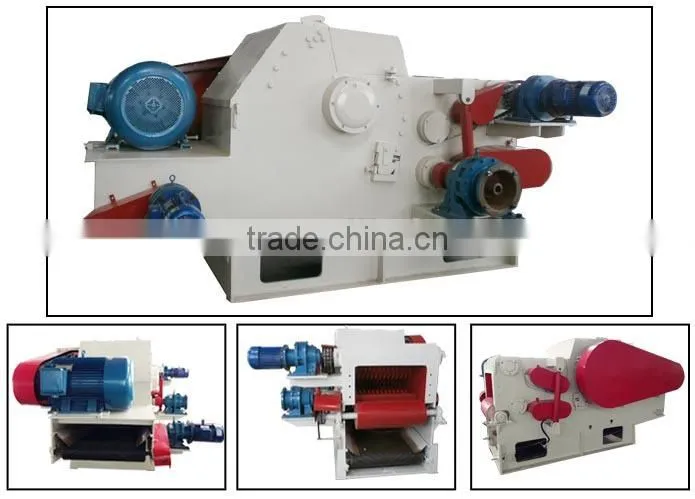

The Layout of Wood Chipping Machine
Wood Chipping Machine Parmaeter
| Model | Capacity | Feeder size | Power | Blade Qty | Max diameter of material |
Dimension | Weight |
| AZSBX-215 | 3-4t/h | 160*400mm | 45KW | 2 | 160mm |
1470x1550x970mm | 2990kg |
| AZSBX-216 | 7-8t/h | 230*500mm | 55KW | 2 | 230mm |
1800x1900x1210mm | 4070kg |
| AZSBX-218 | 12-15t/h | 300*680mm | 110KW | 2 | 300mm |
2200x2150x1500mm | 7000kg |
| AZSBX-2113 | 15-30t/h | 450*700mm | 200KW | 3 | 450mm |
3670x2517x2050mm | 11840kg |
One complete set of wood chipping machine includes: 1*Chipper machine, 1*Feeding conveyor, 1*Outlet belt conveyor, 1*Electric control cabinet, 1*Oil pump, 2 or 3 Blades.
Other Wood Processing Machine

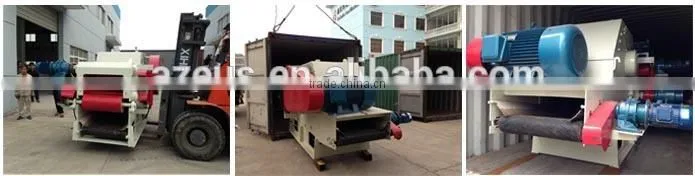

1. All machines, which is less than a full container, are packed by the standard wooden case for exporting. So it is safe and strong enough for a long journey from our factory to your place.
2. If all the machines are shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.
Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.
We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
