G316D Azeus Wood Cutting Machine
Wood Cutting Machine Introduction
With the high strength steel, double feeding system, the wood cutting machine can process different biomass into small pieces with size 10-30mm. Such as wood block, wood logs. Distinct design, compact structure and simple operation make wood chipping machine enjoy popularity during wood processing industry and biofuel processing industry.
Wide Application of Wood Cutting Machine
With advanced structure and special blades layout, the wood cutting machine can process different biomass. The common raw materials are wood logs, wood branches, wood barks, waste board, wood pallet, EFB, PKS, coconut shell etc..
Wood Cutting Machine Features
1.Compact structure, simple operation, the drum wood chipper has a wide application for wood materials chipping and biomass materials processing.
2. Adopting the double roller feeding system, the drum wood chipper has a higher efficiency than the common one.
3. The chipper body is made of high strength steel, firm, shock-resistant, with less noise.
4. The wood cutting machine can process wood chips with a variety of size and thickness for different requirements.
5. Special design and reliable blades layout, the drum wood chipper works more efficiently. The wood chips is of even length and uniform thickness.
6. With the hydraulic buffer system, the maintenance of the chipping machine is simple.
7. We have different model with different capacity, the max capacity can reach 180t/h.

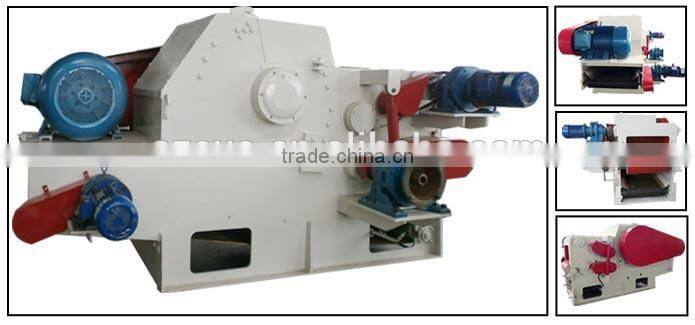

The Layout of Wood Cutting Machine
Wood Cutting Machine Parmaeter
| Model | Capacity | Feeder size | Power | Dimension | Weight |
| AZSBX-215 | 5-8t/h | 400*170mm | 45KW | 1800x1800x1150mm | 3.1t |
| AZSBX-315 No foundation |
5-8t/h |
400*170mm | 45KW |
2600x1800x1400mm |
3.38t |
| AZSBX-216 | 8-12t/h | 540*260mm | 55KW | 2000x2000x1250mm | 4.42t |
| AZSBX-316 No foundation |
8-12t/h | 540*260mm | 55KW |
3100x2000x2100mm |
4.68t |
| AZSBX-218 | 18-20t/h | 680*300mm | 110KW | 2400x2180x1500mm | 7.12t |
| AZSBX-318 No foundation |
18-20t/h |
680*300mm |
110KW |
3500x2180x1800mm |
8.32t |
| AZSBX-2113 | 20-40t/h | 700*360mm | 220KW | 2880X2450X2050mm | 11.85t |
| AZSBX-3113 No foundation |
20-40t/h |
700*360mm | 220KW |
4020x2450x2250mm |
13.2t |
In order to help you to choose the appropriate machine, please kindly confirm the below questions:
1. The material is___________
2. The material diameter is_____________
3. The capacity is______________
4. The wood chips size is_________________
5. The usage of wood chips you will use for_____________
One complete set of wood cutting machine includes: 1*Chipper machine, 1*Feeding conveyor, 1*Outlet belt conveyor, 1*Electric control cabinet, 1*Oil pump, 2-4 Blades.
Other Wood Processing Machine
1. What is usage of the wood chipper?
It is used to cut the wood log, wood branch, wood pallet, bamboo etc.. into chips, so that it can be crushed by wood crusher.
2. Do you only have drum wood chipper?
We have drum wood chipper and disc wood chipper.
3. Can this machine process wood log into sawdust directly?
We can make some improvement for this machine, so that it can process wood logs into sawdust directly. So you can save cost of wood crusher.
4. Do you have CE Certificate?
Yes. Our machines had passed CE Certificate already.

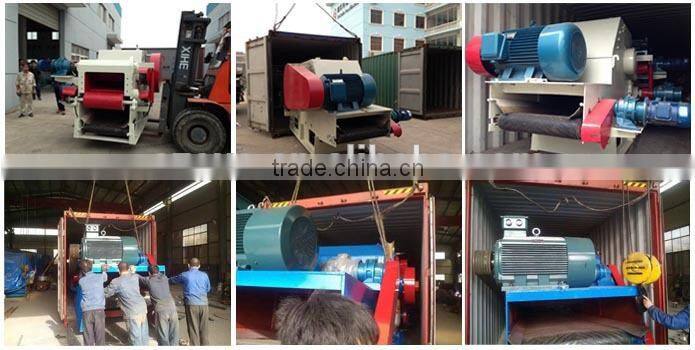

Wood cutting machine is shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.
Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.
We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
