Help CenterChemical Product Machinery Chalk Raw Matrial Chalk Machine
Related Products
Specifications
1. very efficiencency2. chalk raw matrial chalk machine
3. quite easy to operate
4. model number:1 to 8

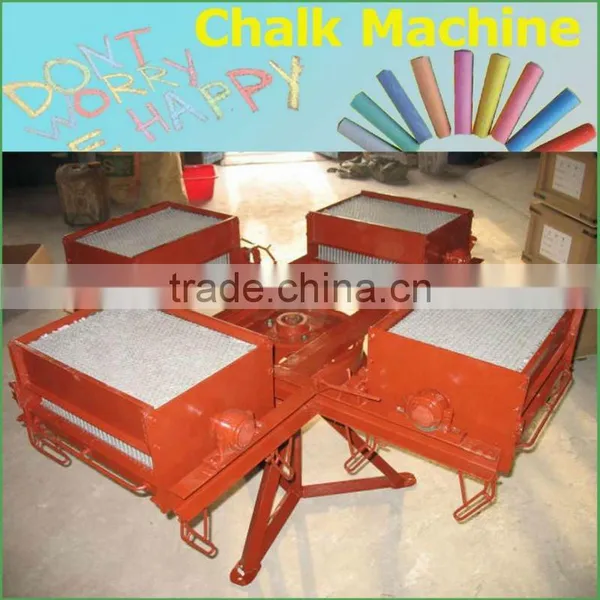

Chemical Product Machinery chalk raw matrial chalk machine
Chalk making procedure:
1*. Slaked Lime mixer, power on, then fill in the water.
The rate for the slaked lime and water is half to half.
2*. The mold should be lubricated enough. And should be lubricated for every cycle
3*. Each model has 80 spaces for the filling, each cycle will be take about 6minutes,
4*. When the filling completed, should be turn off the model make the wet chalk come off from
the model, then dry in the sun.
5*. The packing should be completed by handwork.
6*. The shape can be round, rectangle, or star shape.
The length of the chalk can be from 75mm-105mm.
Technical Parameters of chalk raw matrial chalk machine:
Model |
Capacity (pcs/h) |
Mold Specification (pcs/ mold) |
Packing dimensions (mm)
|
Mold number |
Weight (kg) |
Operator |
AZSCM401 |
2000-4000 |
400 |
530*380*340 |
one |
30 |
One |
AZSCM801 |
4000-8000 |
800 |
660*480*360 |
one |
65 |
One |
AZSCM802 |
8000-12000 |
800 |
1800*1150*800 |
two |
260 |
One |
AZSCM804 |
12000-24000 |
800 |
1800*1150*800 |
four |
350 |
One |
AZSCM806 |
24000-32000 |
800 |
1800*1150*800 |
six |
600 |
two |
AZSCM 808 |
32000-48000 |
800 |
1800*1150*800 |
eight |
800 |
three |
Remarks:
Chalk dimensions: 10mm (big head)×8mm (small head)×75-105mm(length)
The model capacity can be as per customers’ request
Chalk shape: round, rectangle, star or per customers’ request
Your best partner on chalk making equipment:
Chalk Machine operation video is available~
Any requests, please contact us:
