LUOKE/European CE/Customized full automatic Momen tofu production line
LUOKE/European CE/Customized full automatic Momen tofu production line
|
Grinding machine |
MJ300-1-1D | MJ300-2-2D |
| Voltage (v) | 380 | 380 |
| Frequency(hz) | 50 | 50 |
| Power(kw) | 5.5 | 11 |
| Capacity(kg/hr) | 350 | 700 |
| Rotated speed (r/min) | 1450 | 1450 |
| Dimension(mm) | 1000*900*4000 | 1600*1000*4000 |
| Cooking machine | ZJL159-6 | ZJL159-8 |
| Capacity(ton/hr) | 4 | 5 |
| Working pressure(MPa0 | 0.4 | 0.4 |
| Steam input pressure (MPa) | 0.6 | 0.6 |
| Dimension(mm) | 2150*650*1850mm | 2450*650*1850mm |
| Boiling tempreture(°c) | 90-95 | 90-95 |

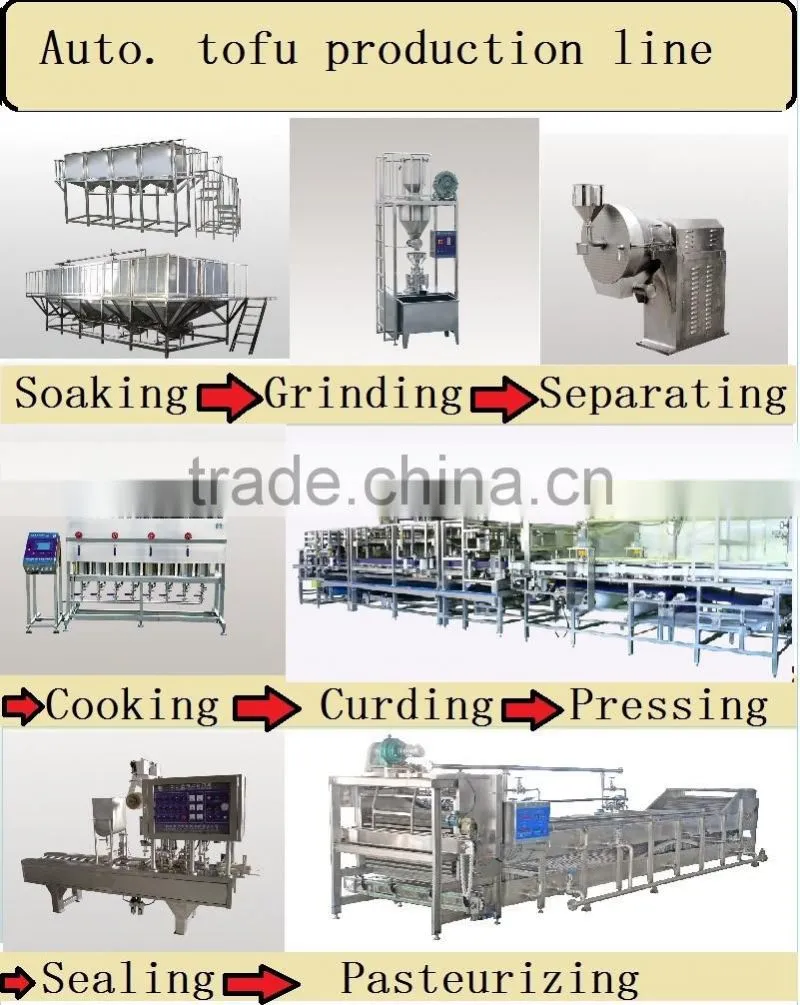

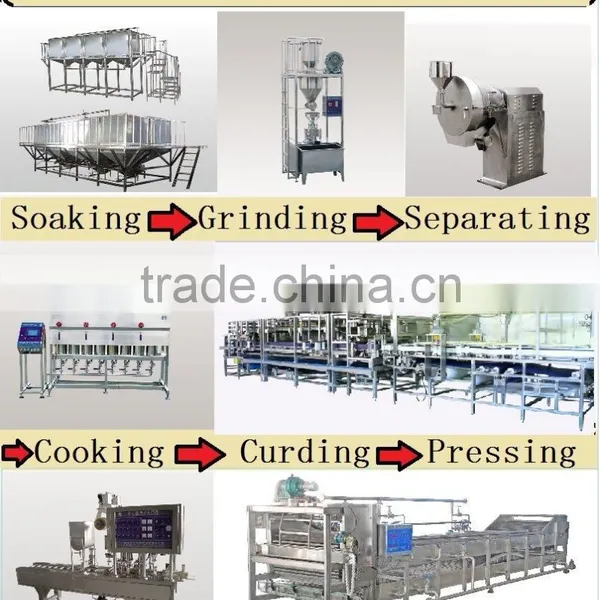

The automatic tofu making machine consists of soybean grining machine, cooking machine, extruding machine, momen tofu machine( it can finish curding, mixing, coagulating, pressing, cutting and casing automatically), sealing machine and pasteurizing machine.
Advantage:
1. Compared the traditional tofu production line, it only needs 1-2 persons. All the production line is controlled by PLC.
2. It doesn't need to tofu mould and tofu cloth in the production.
3. It can produce different kinds of tofu according to the client's requirements.
4. CE certifiication
Flow chart
Function: It is used in the Automatic boiled soymilk production line. The process is as follow: pumping the soaked beans to the grinding machine which has the water gauge and beans quantitative instrument to control the soymilk concentration, then the rotor pump will take the raw mixture to the continuous cooking machine which can control the cooking temperature automatically, then the extruding machine will separate the mixture to soymilk and residue, then the soymilk will be filtered by roller screen and used to make soybean food, at last, the residue blowing machine will convey the residue to the residue warehouse. The whole production line is controlled by computer.

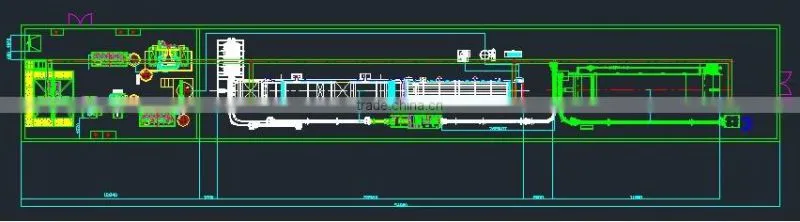

We always make the lay out for client according to our customer's requirements. So if you want to start a production please let us know the production you expected.
1. How many kilos of tofu or liters of soymilk do you want to produce in an hour?
2. How many hours will you work in one day?
3.Which kind of package do you need?
Beijing Luoke Machinery Co., Ltd. was established in 1995. We have more than 200 skilled workers and a team of engineers, advanced production line, full-scale facilities, and one area with more than 30,000 square meters. Our company specializes in researching and manufacturing, marketing, making the overall design and providing the technical training for the soybean food processing factories.
As one SINO-JAPANESE joint enterprise, we have accomplished some full automatic tofu production lines successfully and exported to European. The other main equipments include soymilk production line, Silken tofu production line and so on.
Our company has got more than 80 national patents and CE certification.
We welcome your inquiry and cooperation.
