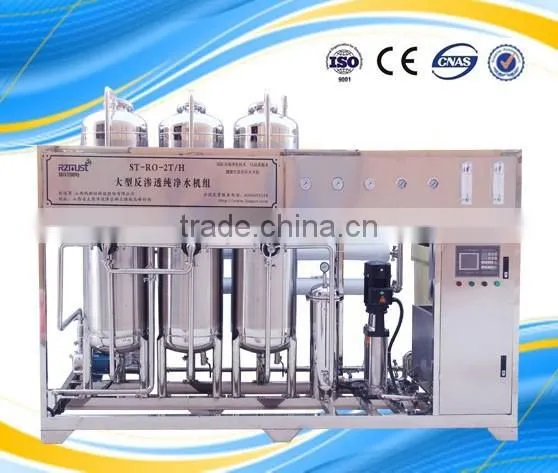

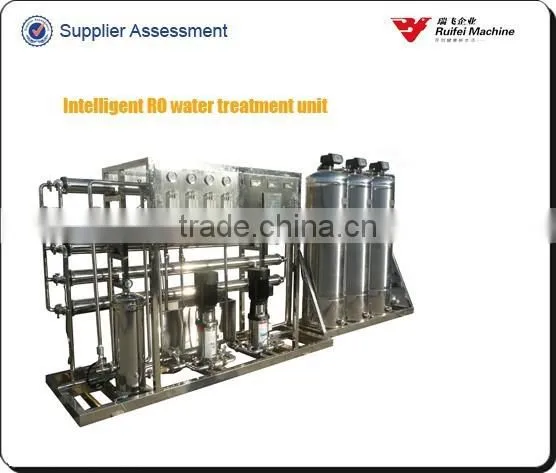

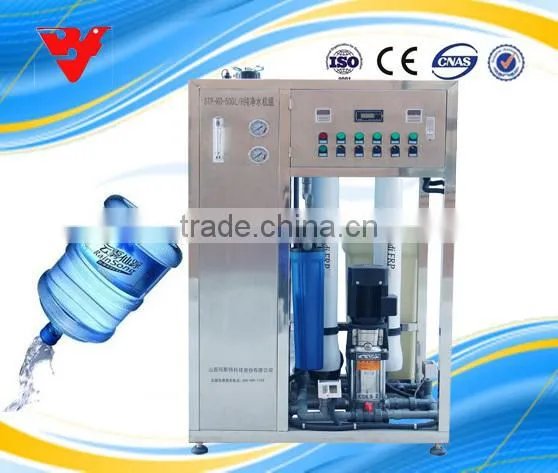

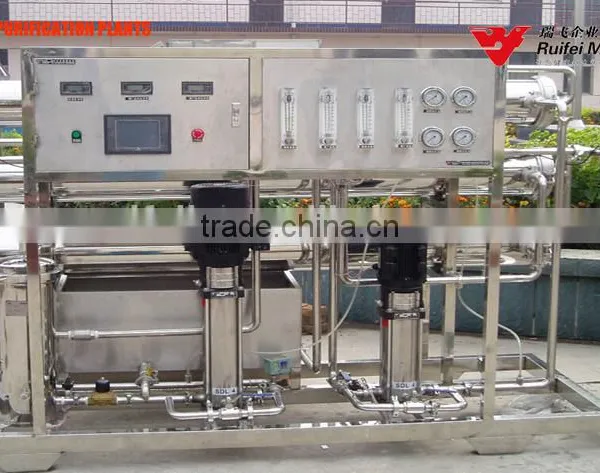

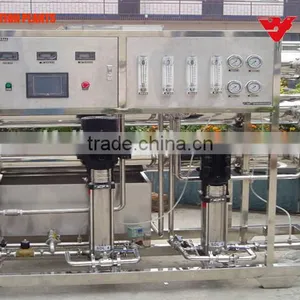

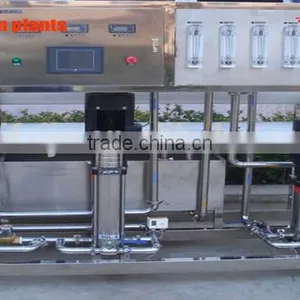

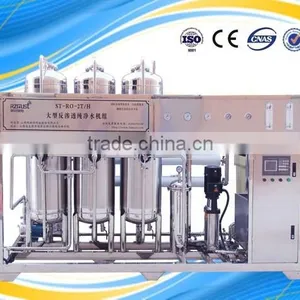

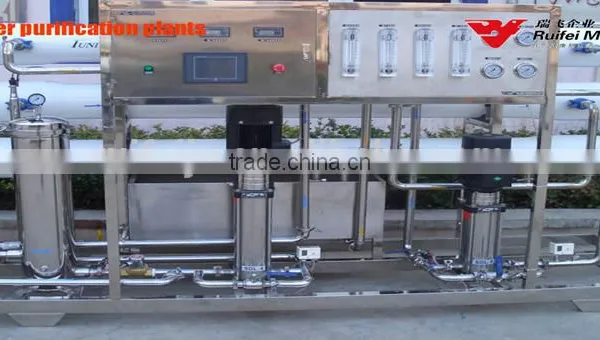

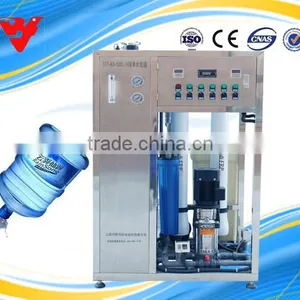

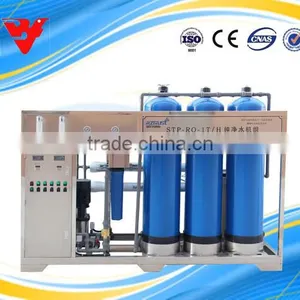

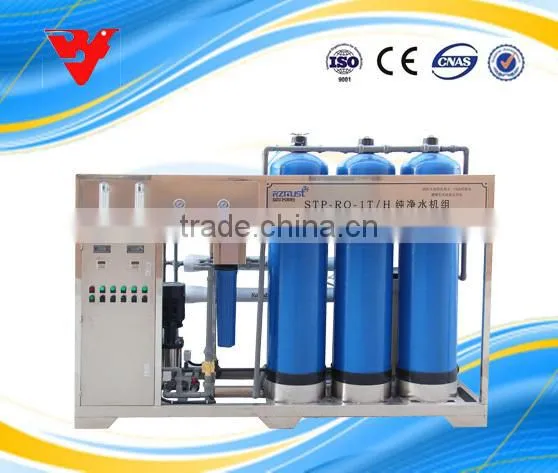

Help CenterOne Stage Reverse Osmosis Pure Water Machine /drinking Water Machine/bottle Water Machine
Related Products
-
Two Stage ro PlantUS$ 6,100 - 6,800MOQ: 1 Set -
50G Reverse Osmosis Machine for Home UseUS$ 200 - 500MOQ: 1 Set
-
Sand Filter Water Tank With PriceUS$ 3,000 - 3,500MOQ: 1 Set
-
Ultra Filtration Equipment/water Desalination MachineUS$ 300,000 - 300,050MOQ: 1 Set
-
One-stage ro Water Purification MachineUS$ 7,000 - 9,500MOQ: 1 Set
1.Q:Are you a factory or trading company?
A: We are a factory, professional water treatment equipment manufacturer with about 18 years experience.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Taiyuan City, China, about 15 minutes away from Taiyuan Airport .All our clients, from home or abroad, are warmly welcome to visit us
3.Q: Can you ODM?
A: yes, we are OEM, but also can ODM
4.Q:How long is the warranty of your equipment?
A:1 year warranty after delivery.And we will comprehensively provide you all kinds of technical support services in after-sale !
5.Q: Can you provide oversea installation service?
A:Yes, oversea installation service is available for us. We have professional installation teams, and have full experience of the oversea site installation.
6.Q:How can I contact you?
Mobile: +86 18534418701 skype: 1 QQ: 137241239
Tel.: +86-351-4384871~108

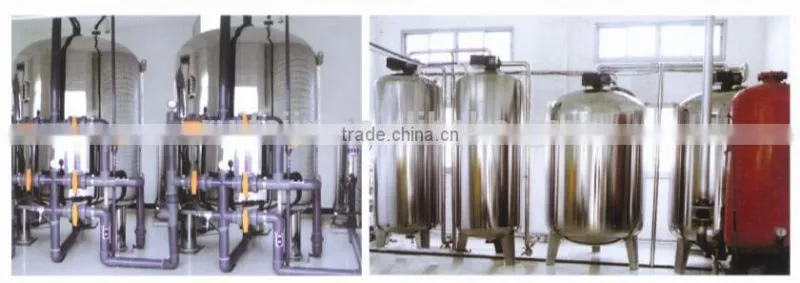

Products description:
1.The water used in industry need to be processed by a number of stages, and processed by electricity
dialysis, antidialysis and Na ion exchange are usually treated as main stages. In order to make sure these key stages are taken safely, efficiently, and economically, it is necessary to process the original water so as to
meet the requirement for inputting water quality. In project we often purify, soften and adjust water quality
before entering the main processing stages, known as water pretreatment or pretreatment, or pretreatment.
2.The main targets of pretreatment are suspension, mechanical waste such as viscose debris particles,
colloidad silica, microorganisms, active chlorine, and organic substance, which have an adverse impact on the follow-up treatment.
3.The result of pretreatment directly affects technical and economical effect and long-term safe operation of electricity dialysis, reverse osmosis,ion exchange and so on. It is an important stage in water
treatment.
Configuration:
1.Material: stainless steel tank + processing stainless steel (or Fiber Reinforced Plastic ) membrae
+ stainless steel pipe valve + stainless steel frame

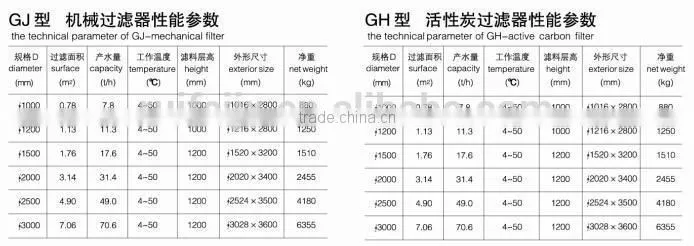

2.Configuration: raw water pump, quartz sand filter, active carbon filter, sodium ion filter, PP
cotton precision filter, four grades purifying and softening pretreatment RO unit, high pressure
pump, salt water pump, salt water tank,medicine wash box, high-low voltage automatic protection,
PLC touch screen controlling, pneumatic intelligent spherical valve (or imported automatic multiway
valve) controlling, turbine sensing flow display controlling ,water quality double electric conductivity
instrument.
Technical parameters:
| Model | productivity(kg/h) | rated power | outline dimension(mm) |
| RF-HYROD-500 | 500 |
380V AC 50HZ 1.4KW |
1500*900*1820 |
| RF-HYROD-1000 | 1000 | 380V AC 50HZ 1.5KW | 2000*650*1650 |
| RF-HYROD-2000 | 2000 | 380V AC 50HZ 1.6KW | 2000*650*1650 |
| RF-HYROD-3000 | 3000 | 380V AC 50HZ 1.8KW | 2500*650*1750 |
| RF-HYROD-4000 | 4000 | 380V AC 50HZ 2.0KW | 2600*650*1800 |
| RF-HYROD-5000 | 5000 | 380V AC 50HZ 2.4KW | 2600*650*1800 |
| RF-HYROD-6000 | 6000 | 380V AC 50HZ 2.6KW | 3000*975*1750 |
| RF-HYROD-10000 | 10000 | 380V AC 50HZ 3.5KW | 3800*900*1700 |
| RF-HYROD-20000 | 20000 | 380V AC 50HZ 5KW | 3800*1200*1800 |

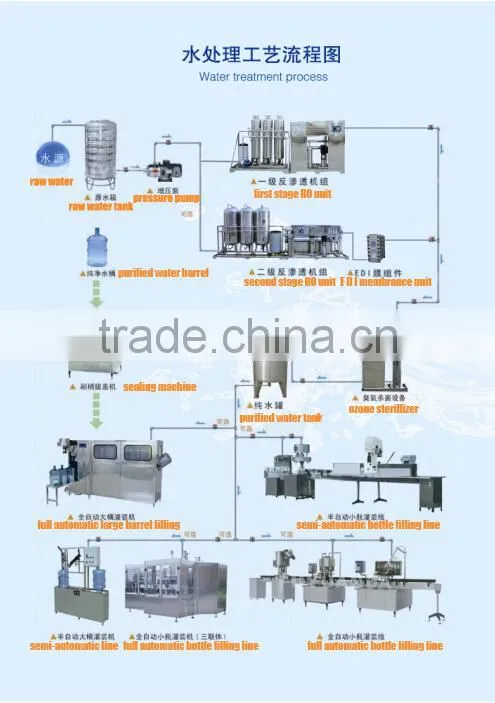

Water treatment process flow chart
Company Profile:

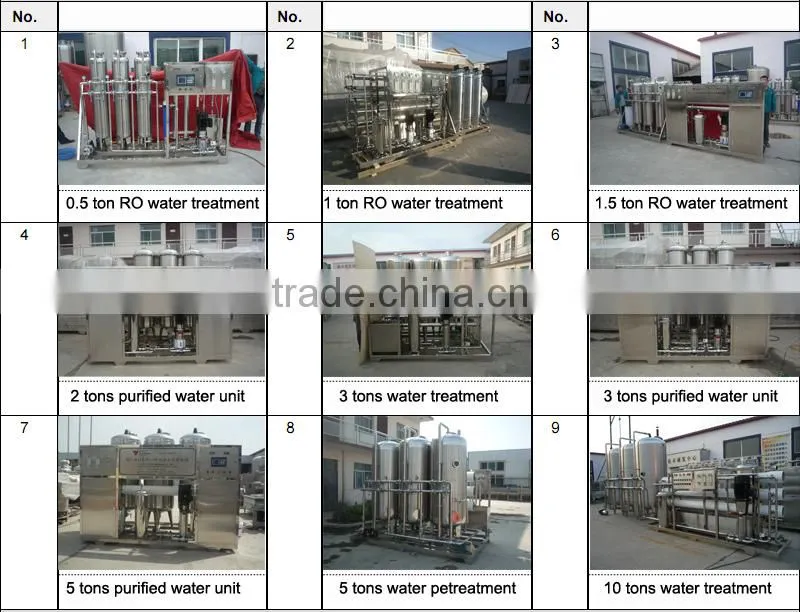

Manufacturing Capacity:
Products Catergory:
1. Industrial water treatment equipment
2. Bean products equipment

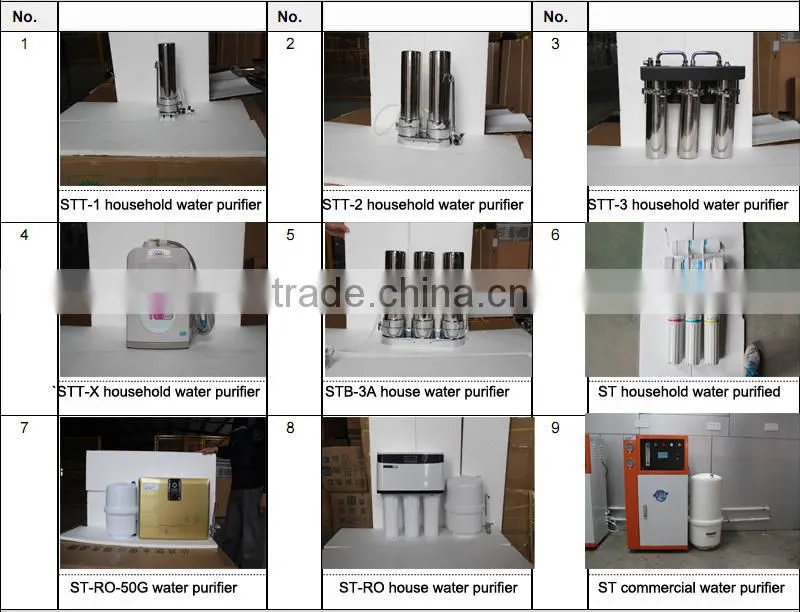

3. Household water purified machine
