New Condition Wolfberry Tunnel Microwave Drying/Dehydration Machine
Specifications
The tunnel type microwave drying and sterilization machine
1.The equipment is made of high-quality 304# stainless steel,fully meet with medicine machinery requirements;
2.Microwave leak:accord with a country GB10436-89 standards(≤5 mw/cm²);
3.Control system: PLC control interface or press-button control;
4.Adopt high-quality Panasonic magnetron,long life,best effect;
5.Low-temperature drying and sterilization,keep material character perfect,keep the ingredient.
Main features
1.Fast heating. Microwave heating is completely different with traditional heating mode. It makes heating medium become heater, do not need heat transfer process. Although thermal conductivity is poor materials, also can achieve heating temperature in a very short time.
2.Save energy and efficiency. Because materials contain water absorb microwave easily and fever, so in addition to a small amount of transmission loss outside, almost no other loss, so high thermal efficiency, save energy.
3.Heating even. No matter how shape of each part of the body, microwave heating all can make the object and evenly infiltration and electromagnetic wave list to produce the heat. So heating good uniformity, won't appear the endogenous phenomenon focal.
4.Mouldproof, sterilization, fresh. Microwave heating has thermal and biological effect, can sterilize and mould proof in low temperature. Due to heating rapidly, the time is short, can maximum limit save material activity and the vitamin original colour and lustre and nutrition of food.
5.Covers less area, safety and harmless. Because microwave can be controlled in made of metal heating indoor and wave, so microwave leak is few, no radiation hazards and harmful gases, do not produce the waste heat and dust pollution; Neither polluting food, also do not pollute the environment.
Main technical parameters
Power supply |
380V 50HZ three-phase five-wire |
Microwave output frequency |
2450±50MHz |
Microwave input apparent power |
≤36KVA |
Microwave output power |
≥25KW |
Microwave power adjustment range |
0-25KW(adjustable) |
Temperature |
0~200C(adjustable) |
Equipment type |
Transmission Teflon conveyor belt |
Transmisison speed |
0~10m/min(adjustable) |
Microwave leakage limit |
(mW/cm2):<1 |
Magnetron |
Panasonic, 35sets |
Material |
stainless steel |
Dimension(L*W*H) |
10700*850*1790mm |
Expected dehydration(kg/h) |
25 |
Expected sterilization capacity(kg/h) |
350 |
Microwave leak |
accord with a country GB10436-89 standards |
Equipment safety |
accord with GB-5226Electrical safety standard |
Why we choose microwave sterilizer/dryer compared with traditional heating devices?
1. Traditional heating device heat from outside in, relying on the conduction of the center of the material being heated. Microwave itself is not hot, but the microwave energy could penetrate material, resulting in the friction between polar molecules inside the material and generate internal heat.
2. Traditional heating device require higher external temperatures to heat the center of the product, the surface will become overheated, this will reduce the material's quality. With microwave energy, there is no excessive external energy applied to the surface for the product. It is heated evenly and get superior quality product.
3. Multi-function, apart from drying, it could also finish sterilization and Ripening. Besides, if you prefer, it could also be equipped with cooling system.
1. Delivery Term: FOB Qingdao
2. Delivery time: 30 work days after having received payment
3. Package: wooden cases
4. Payment Terms: 50% deposit by T/T,balance 50% paid by T/T before shipment.
5. Transportion : By vessel

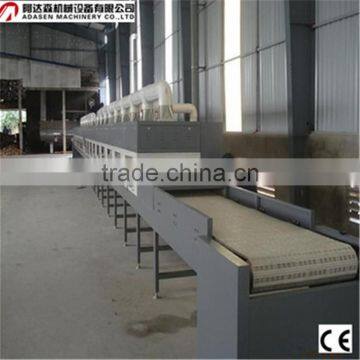

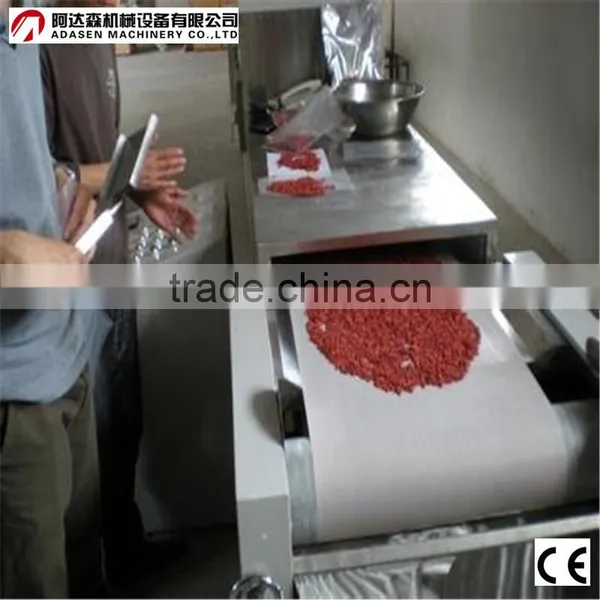

Pictures
