YJ48 shaded pole fan motor

Specifications

1.Creditable quality,good prestige,perfect service
2.Reasonable price
3.Long working Life
4.Certificate:CE,VDE,TUV,UL

1. The series motor is safe and reliable, lownoise, characteristics hard, good starting,long life, etc.

2. This series motor is widely used in humidifiers, heater fan,electric toaster, fireplace and otherhousehold appliances.

3. The series motor can be designed into four insulation class according to user requirements: that of E, B, F, H.

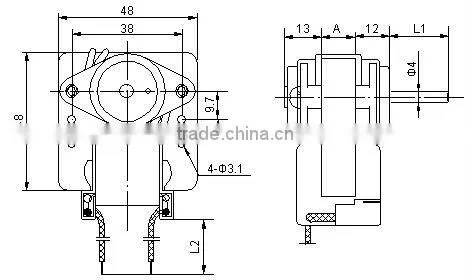

4. Motor rotation and size "L1, L2" can be produced according to user's requirements.



MODEL	THICKNESS (MM)OF ELECTRICAL STEEL	VOL.(V)	FREQUENCY	INPUT CUR. (A)	INPUT POWER(W)	SPEED(R/MIN)	TORQUE(MN.M)
YJ48-10	10	220-240	50Hz	0.07	7	2200	3
YJ48-12	12	220-240	50Hz	0.09	12	2300	5
YJ48-15	15	220-240	50Hz	0.14	17	2200	6
YJ48-20	20	220-240	50Hz	0.16	20	2300	10
YJ48-25	25	220-240	50Hz	0.19	23	2300	13
