Hilmor bender :

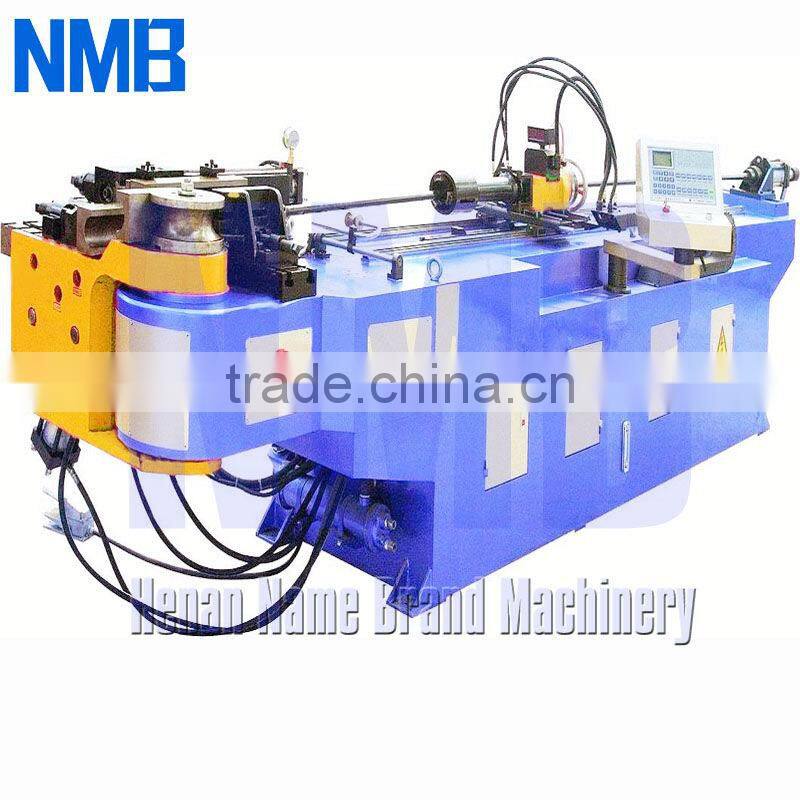

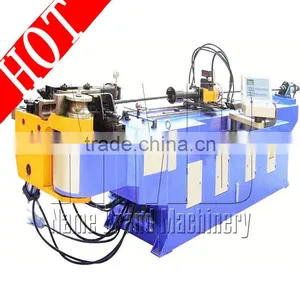

Hilmor bender Bending Machines Model NM114CNC
Introduction of our machine:
Our this kind machine can be classified into CNC pipe bending machine, hydraulic bender and other kinds. It is an equipment used to power construction, construction of roads and railway, boiler, bridge, ship, furniture, decoration and other fields that is related to the pipe laying and building. It has features of multi-function, reasonable construction,and easy operation. It enjoys a good market in the worldwide!
Features of our machine:
1. Fully automatic, is very easy to use and operate;
2. Equipped with 3 programmable axis;
3. Hydraulic pressure die assist for every bending stack;
4. Wiper, clamping and pressure die seats;
5. Centralized greasing system for moving areas;
6. Electric cabinet cooling fan;
7. Touch screen system
8. CNC 2 servo controlled axes with NC hydraulic bending
Technical parameter of our machine:
Model | NMB38CNC | NMB50CNC | NMB114CNC |
Max.bending ability(mm) | 38×1.5 A3 | 50×1.5 A3 | 114×1.5 A3 |
Range of bending radius (mm) | 25-200 | 35-200 | 75-280 |
Toptight formation(mm) | 55 | 65 | 120 |
Feeding accuracy(mm) | 0.1 | 0.1 | 0.1 |
Feeding speed(m) | 1.1 | 1.1 | 1.1 |
Max.bending angel | 185° | 185° | 190° |
Bending precision | 0.1° | 0.1° | 0.1° |
Bending speed°/sec | 65° | 44° | 24° |
Accuracy of angel | 0.1° | 0.1° | 0.1° |
Cormer speed°/sec | 120° | 120° | 120° |
Power source | 380V,50Hz | 380V,50Hz | 380V,50Hz |
Control valve voltageV | 2 | 24 | 24 |
Total power(KW) | 6.0 | 8.0 | 10.0 |
Oil Pump Power(KW ) | 4.0 | 5.5 | 7.5 |
Spare parts of our machine:
The spare parts of our machine include: forming die, pressure die,clamp die, wiper die(optional), ball
mandrel(optional).
Different shape of final products for your reference:
hilmor bender Bending Machines Processing type: pipe bender dies
hilmor bender Bending Machines Total power 6kw
Other pipe benders pictures of our factory:
Hilmor bender Bending Machines Feeding accurance 0.1mm
Things need to be noted:
1.We design and manufacture the tooling according to the tube's specification, so the customers should send us the following tube's specification details: Tube's material and Outside Diameter, Wall Thickness, Bending Radius. THIS IS VERY IMPORTANT!
2. The Min./Max. bending radius could be made to order according the customer's special requirement.
3. The length over mandrel could be made to order according the customer's special requirement.
About our service:
If you are interested with our products, please contact us freely. We have a perfect after-sales service system, and also a professional team. So please be assured to buy our products!
Machine matched with pipe bender machine:
hilmor bender Bending Machines Opration type: CNC
