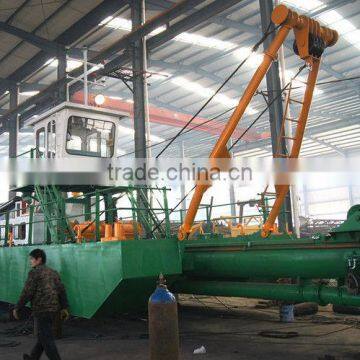

1. Cutter Suction Dredger
1)The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using
bolts at deck level, and hooks at the bottom.
2) Further salient features of the vessel are the compact dredge pump drive incorporating a reduction gear with integrated pump bearing and a fresh water engine cooling system, based on the well cooling principle.
2.Specifications:
No. |
Principal Particulars |
|||||||
1 |
Model |
HACSD200 |
HACSD260 |
HACSD300 |
HACSD350 |
HACSD400 |
HACSD450 |
HACSD500 |
2 |
Max. Production Capacity(solid sand) |
100m3/h |
150m3/h |
220m3/h |
300m3/h |
400m3/h |
500m3/h |
640m3/h |
3 |
Max. Discharge Distance |
900m |
1000m |
1000m |
1200m |
1300m |
1400m |
1700m |
4 |
Dredge Pump Suction/discharge pipe dia.(mm) |
250/200 |
300/250 |
350/300 |
400/350 |
450/400 |
400/450 |
550/500 |
5 |
Main Engine power(KW) |
176 |
294 |
330 |
470 |
735 |
735 |
882 |
6 |
Cutter Power(KW) |
25 |
30 |
50 |
70 |
75 |
110 |
140 |
7 |
Hydraulic Ladder winch |
30KN 100m |
40KN 100m |
40KN 100m |
60KN 110m |
80KN 110m |
100KN 120m |
100KN 120m |
8 |
Hydraulic Swing winch(2sets) |
30KN 100m |
40KN 100m |
40KN 100m |
60KN 100m |
80KN 110m |
100KN 110m |
100KN 110m |
9 |
Spuds |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
10 |
Control system |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
3.Other Sand Dredger

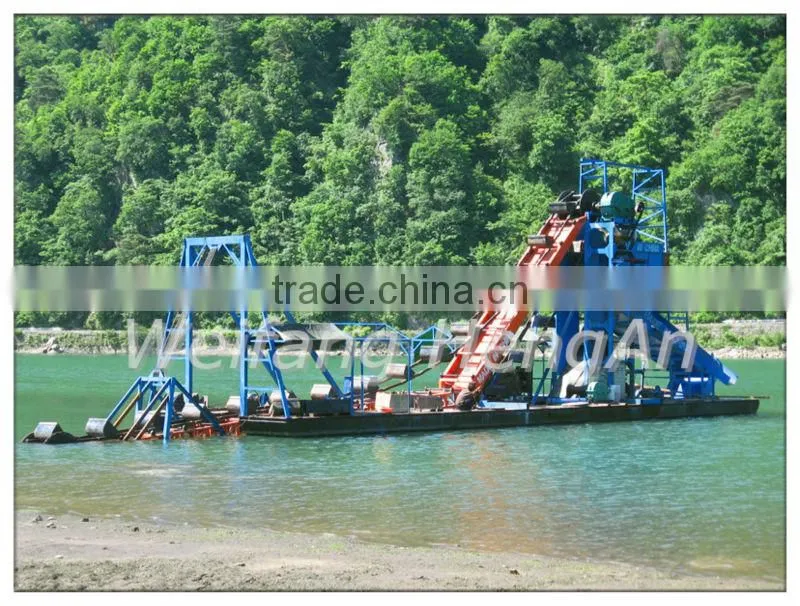

1)Chain Bucket Dredger
2)Sand Jet Dredger
3)Submersible Pump Dredger
4)Irion Extraction Dredger
4.Dredger Components

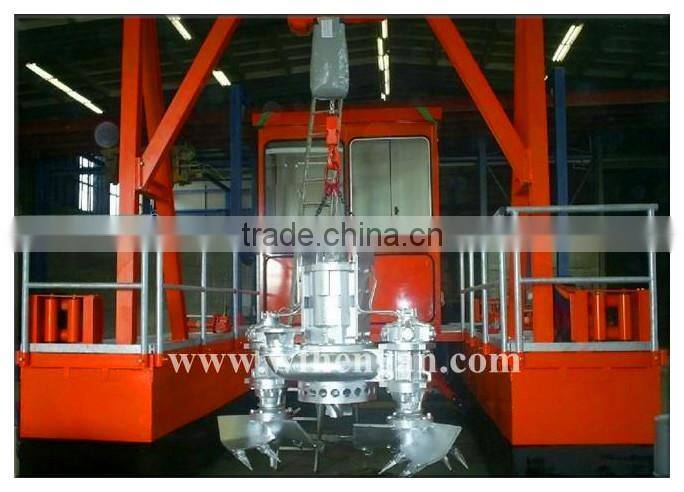

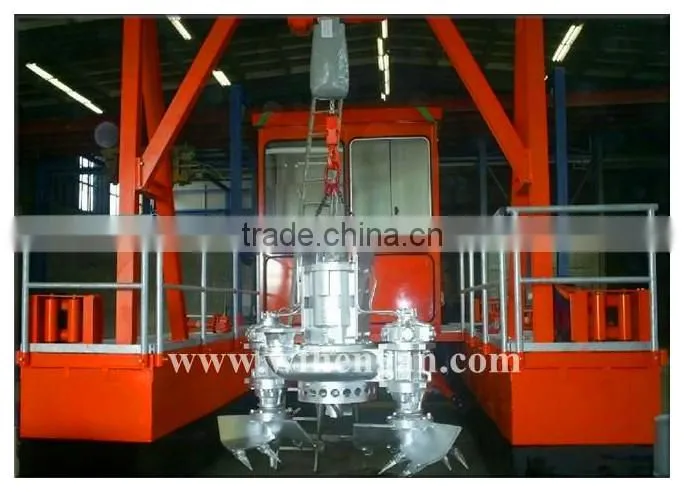

1)Engine , pump and gearbox: can be customized.
2) Cutter Head and Winch: can be electric or hydraulic driven.

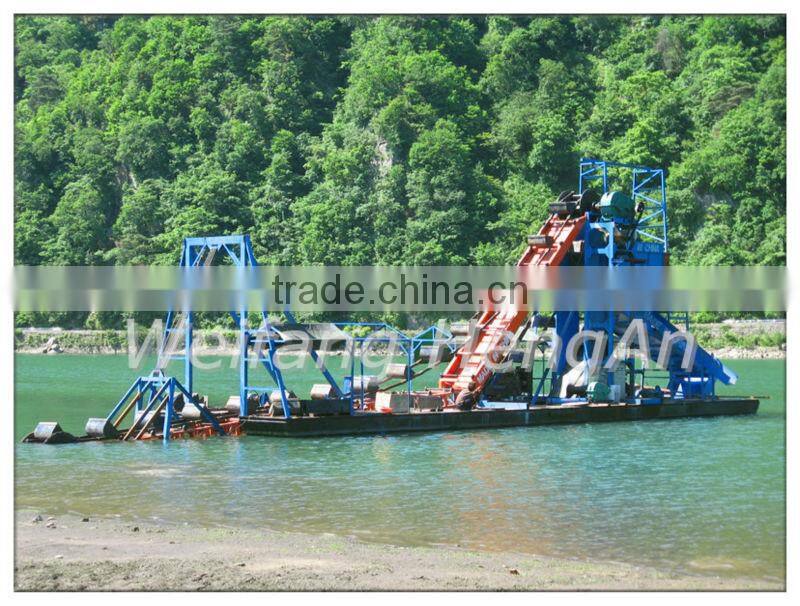

5.Ore Mining Dredger (Gold, Diamond, Jewel, etc)
Cutter suction dredger and chain bucket dredger are both popular dredger in world market.
