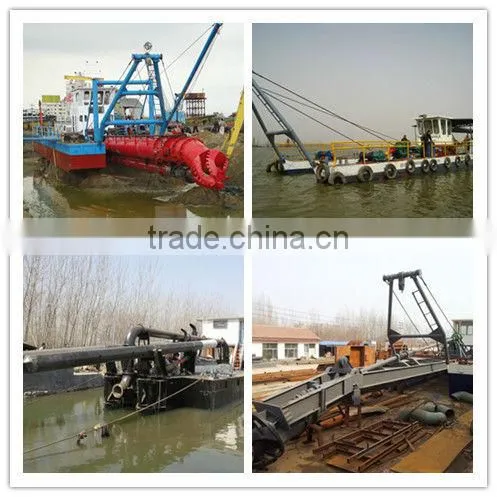

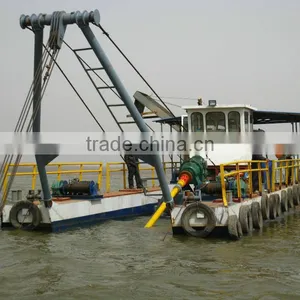

Small Sand Digging Machine
1).Completely assembled and fully tested afloat before delivery
2).Simple ,rapid assembly and dismantling
3).Standard design, allowing early delivery and low price
4).Spare parts available from stock

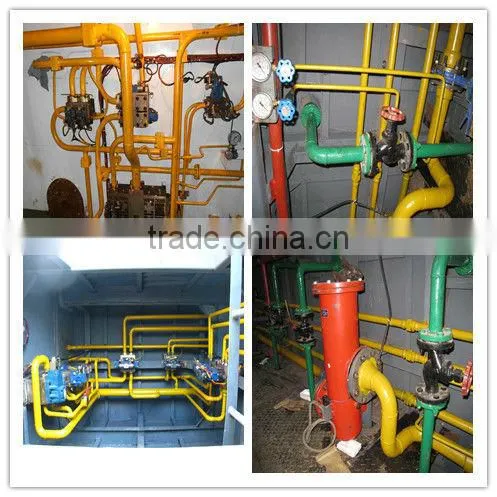

5).Reliable hydraulic system
6).Fresh water engine cooling system
7).One man operation
8).Efficient fuel consumption

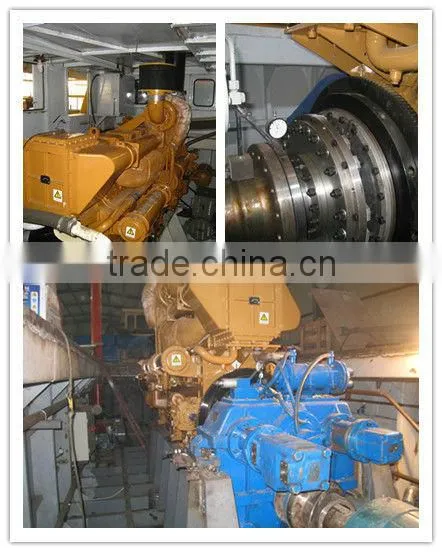

The dredger is equipped with a rapid connection-disconnection system for the pontoons, achieved using bolts at deck level, and hooks at the bottom. Further salient features of the vessel are the compact dredge pump drive incorporating a reduction gear with integrated pump bearing and a fresh water engine cooling system, based on the well cooling principle.
1.--Parameter
Can modify and adjust according to customers' project requirement.
| Basic CSD Parameter | |||||||
| Model | HACSD200 | HACSD260 | HACSD300 | HACSD350 | HACSD400 | HACSD450 | HACSD500 |
| Dredger Body | |||||||
| Dimensions(L*W*H) | 12.5*4.6*1.3 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7*2 | 26*7.1*2.2 |
| Engine room | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 9.5*3.2*1.8 | 12*3.4*2 | 14*3.4*2 | 14*3.5*2.2 |
| Dredging data | |||||||
| Standard dredging depth | 6-7m | 6-8m | 8-10m | 10-12m | 12-14m | 12-14m | 12-14m |
| Pump model | 8/6” | 10/8” | 12/10” | 12/10” | 14/12” | 14/12” | 450WN |
| Water flow | 450m3/h | 800m3/h | 1100m3/h | 1500m3/h | 1900m3/h | 2500m3/h | 3200m3/h |
| Suction pipeline diameter(mm/inch) | 260 | 300 | 350 | 350 | 400 | 450 | 500 |
| Discharge pipeline diameter(mm/inch) | 200 | 260 | 300 | 350 | 400 | 450 | 500 |
| Devices | |||||||
| Total power KW | 176kw | 258kw | 353kw | 480kw | 640kw | 930kw | 1200kw |
| Generator set(kw) | 24 | 24 | 24 | 24 | 24 | 36 | 36 |
| Cutter head | |||||||
| Diameter (mm) | 850-30 | 950-40 | 1100-50 | 1200-80 | 1300-110 | 1500-120 | 1700-140 |

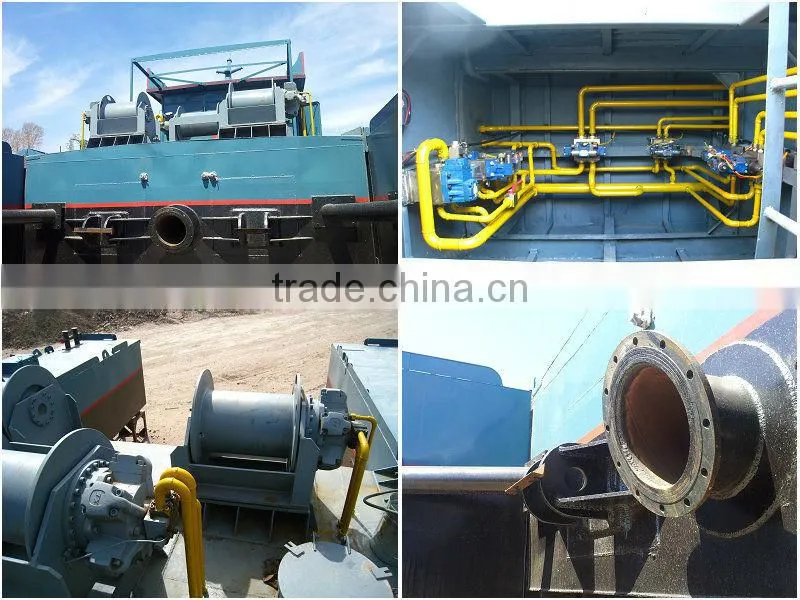

| Winch(hydraulic) | |||||||
| Ladder winches | LTJC-3000 | LTJC-4000 | LTJC-4000 | LTJC-6000 | LTJC-6000 | LTJC-10000 | LTJC-12000 |
| Swing winch | LTJC-3000 | LTJC-4000 | LTJC-4000 | LTJC-6000 | LTJC-6000 | LTJC-8000 | LTJC-10000 |
| Spuds | |||||||
| Quantity | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Spuds length*diameter(mm) | 8600*273 | 11000*300 | 13000*350 | 15000*377 | 17000*450 | 17000*550 | 17000*600 |
| Spuds weight/pic | 900kg | 1500kg | 2000kg | 2500kg | 3900kg | 4500kg | 5000kg |

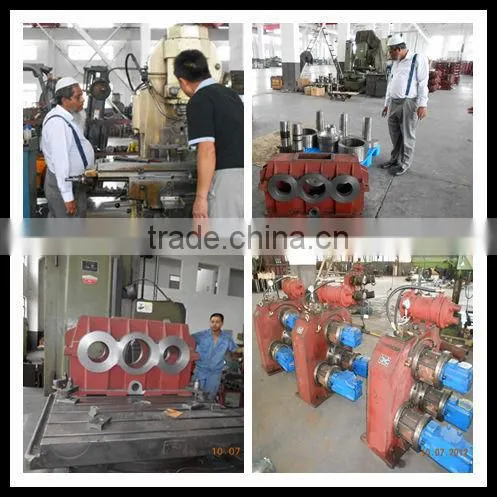

2.--Customers visit our Factory
We will show you detailes and much more things about our Group company.
3.--Consult and meeting with engineers

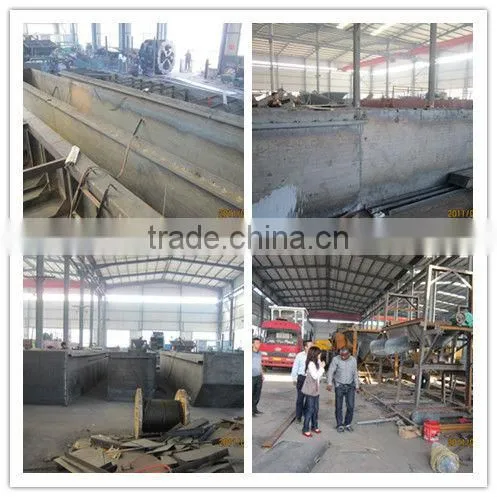

4.--Prodution
After order,we prepare all of the materials to produce .

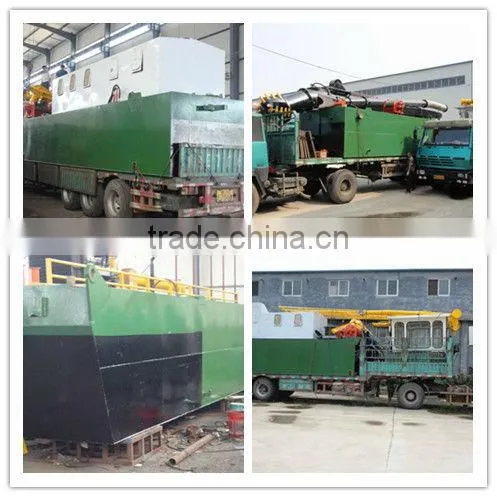

5.--Test before shiping and transportation to the seaport
We will test the dredger well before shipment and transport it to the seaport by truck or containers.

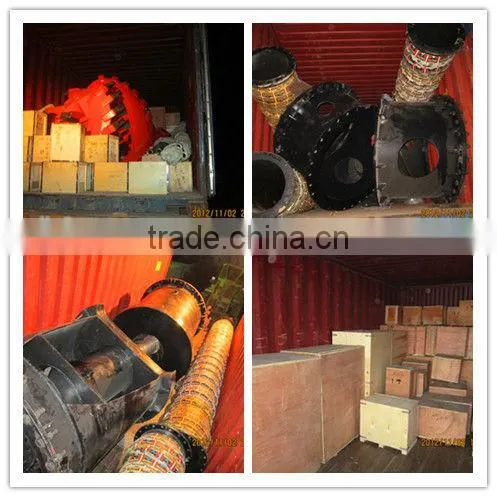

6.--Dredger spare parts
We also supply the whole set of spare parts for dredgers
7.--Contacts:for more details please don't hesitate to consult
