CE 8 Ton Excavator With YANMAR Engine

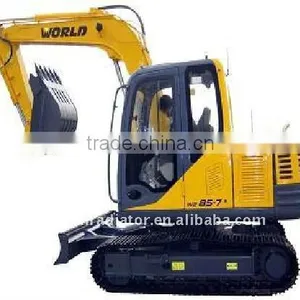

CE 8 Ton Excavator With YANMAR Engine thumbnail-1
CE 8 Ton Excavator With YANMAR Engine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
world
Model Number:
W285-8
Contact Supplier Request Quote Chat Now
Weifang Heng An Imp& Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name world
Model Number W285-8
Condition New
Moving Type Crawler Excavator
Operating Weight 8250KG
Bucket capacity 0.36M3
Maximum Digging Height 7150mm
Maximum Digging Depth 4231mm
Machine Weight 8500kgs
Max Digging Radius 2074/1791
Certification CE ISO
After-sales Service Provided Overseas service center available

8 ton excavator

 CE 8 ton excavator with YANMAR engine



Model: W285-8 8.5 ton excavator with Air-conditioner
    Bitmap

Engine System
Brand & Origin Yanmar (Japan)
Model 4TNV98T-SFN
Rated Power 53.1/2200kw/rpm
Max. Torque 286.9~312.7Nm/1000±100rpm
Idling Speed 1000rpm
Engine Displacement 3.318L
Cylinder No.-Bore/Stroke 4-98mmx110mm
Engine Oil Capacity 5.3-12L
Fuel Tank Capacity 148L
Fuel Consumption Rate 244g/kw.h or less

Hydraulic System
Main pump Brand & Origin Toshiba (Japan)
Type & Model PVC90RC08
Rated Pressure 27.5MPa
Nominal Displacement 90 cm/rev
Multiple Unit Valve Brand & Origin Toshiba (Japan)
Type IB18-8027
Rated Pressure 27.5MPa
Hydraulic Motor Travel Motor Brand & Origin Jeil (Korea)
Travel Motor Type & Model JMV-53/31-01-VBC-RJ-47
Traveling Speed (H/L) 3.7/2.1 km/h
Swing Motor Brand & Origin Toshiba (Japan)
Swing Motor Type & Model SG025E-136
Swing Speed 11rpm
Hydraulic Cylinder Brand & Origin Hengli (China)
Boom Cylinder Specifications 110mmx75mm
Arm Cylinder Specifications 100mmx65mm
Bucket Cylinder Specifications  90mmx55mm
Hydraulic Oil Tank  Capacity 112L

Working Specifications
Weight 8250kg
Bucket Capacity 0.36m3 Bitmap

Bucket Width 755mm
Bucket Digging Force 63kN
Arm Digging Force 50kN
Ground Pressure 37KPa
Grade Ability 70%
Max. Digging Depth 4231mm
Max. Digging Height 7150mm
Max. Digging Radius 6802mm
Max. Discharging Height 5139mm
Min. Ground Clearance 367mm
Min. Swing Radius 2074mm/1791mm
Overall Dimensions(LxWxH) 6502mmx2320mmx2601mm
