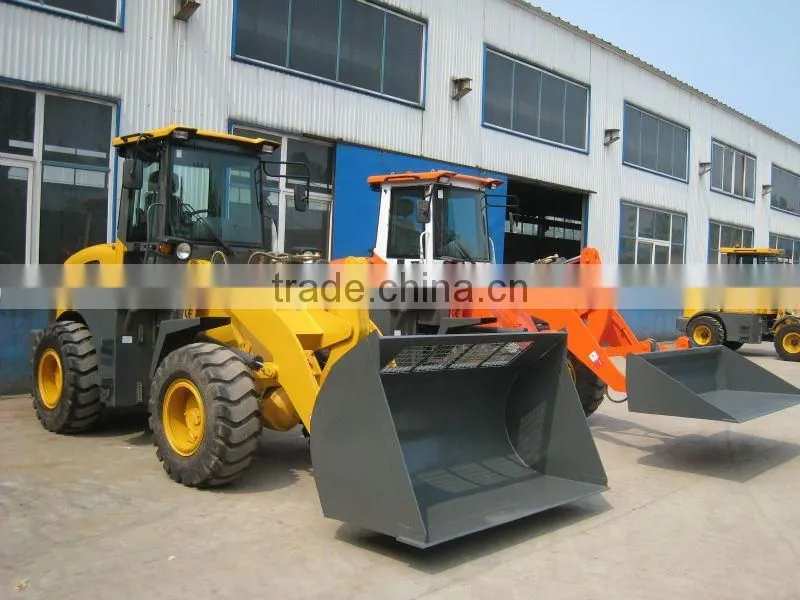

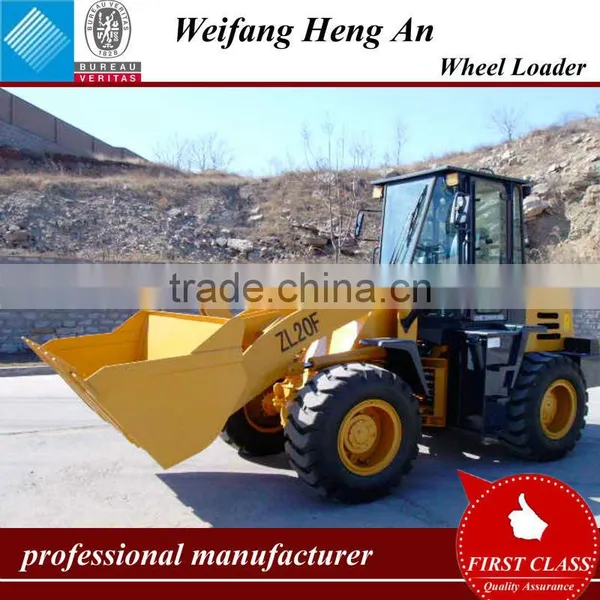

ZL-20f 2ton Mini Wheel Loader

Name: ZL-20f 2ton Mini Wheel Loader
Brand: HENGAN
SKU: 137621829
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

HENGAN

Model Number:

ZL-20F

Weifang Heng An Imp& Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QingDao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name HENGAN

Model Number ZL-20F

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5633*2120*2712mm

Rated Load 2000 KG

Certification ce iso

Warranty 12months

After-sales Service Provided Overseas service center available

zl-20f wheel loader

Performance	1	rated loading	2000kg
	2	overall weight	5800kg
	3	rated bucket capacity	1.2m³
	4	maximum tractive force	≥54KN
	5	maximum breakout force	≥45.4KN
	6	maximum grade ability	30°C
	7	maximum dump height	2622mm
	8	maximum dump reach	752mm
	9	overall dimension (L×W×H)	5633×2120×2712mm
	10	minimum turning radius	5251mm
Engine	11	model	Wei chai R4105G57
	12	type	Vertical, in-line, water cooled, 4-stroke diesel engine
	13	No. of cylinder-bore/stroke	4—105×125mm
	14	rated power	55kw—2200r/min
	15	maximum torque	270N.m
	16	min fuel-consume ratio	≤243g/kw.h
Transmission system	17	torque converter	YJ—280A
	18	gearbox mode	Countershaft power-shift
	19	gear shift	2 forward shift 2 reverse shift
	20	maximum speed	24km/h
Drive axles	21	main reducing spiral	Circular Arc Bevel gear, single stage
	22	decelerating mode	Single stage planetary type
	23	wheel base (mm)	2400mm
	24	wheel tread	1640mm
	25	ground clearance	310mm
Hydraulic system	26	system working pressure	16MPa
	27	boom lifting time	4.8s±0.2s
	28	total time	9.2s±0.5s
	29	fuel tank capacity	80L
	30	function of leveling automatically	yes
Brake system	31	service brake	air assist disc brake on 4 wheels
Brake system	32	parking brake	flexible shaft operated external drum
Tyre	33	type specification	16/70—20
	34	front tyre pressure	0.22Mpa
	35	rear tyre pressure	0.18Mpa
