Help Center5ton Truck Mounted Crane
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
crane
Rated Loading Capacity:
5000kg
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
crane
Rated Loading Capacity
5000kg
Rated Lifting Moment
12.50
Max. Lifting Load
5000
Max. Lifting Height
10.5m
Span
8.5m
Place of Origin
Shandong, China
Brand Name
KAMA
Model Number
KMC1124P3
Certification
ISO
Warranty
12months
After-sales Service Provided
Overseas service center available

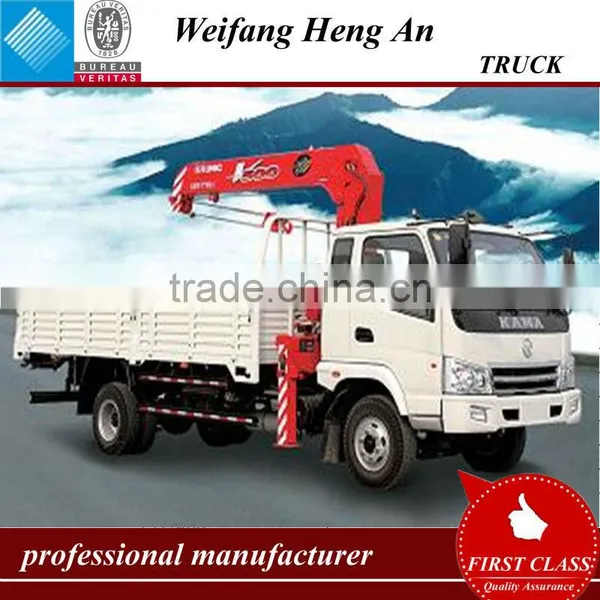

truck mounted crane
| KMC1124P3-CRANE | |
| Emission | E-Ⅱ |
| Suggested payload | 5T |
| Engin Model | YC4D125-20(YUCHAI) |
| Bore/Stroke(mm) | 108*115 |
| Displacement(litre) | 4.214 |
| Power(HP) | 125 |
| Rated Rotate speed(r/min) | 2800 |
| Cooling | in-line ,water cooling, 4-stroke |
| Overall dimensions(LxWxH)(mm) | 7930*2330*2450 |
| Cargo Box Size(LxWxH-inner)(mm) | 5660*2100*550 |
| Cabin | ONE AND HALF CAB(1990) |
| Drive Type | 4×2 |
| Seats in cabin | 3 |
| Transmission | 6T46 |
| Curb Weight(Kg) | 4120 |
| Load Weight(Kg) | 5000 |
| G.V.W | 9120 |
| Wheel Base(mm) | 4500 |
| Track(mm) front | 1760 |
| back | 1620 |
| Max. Speed(Km/h) | 95 |
| Brake system | air brake |
| Parking brake | Spring energy air cut brake |
| Clutch model | Single plate, Dry type |
| Gearshift | 6+1 speed, manually |
| QTY of wheels | 6 |
| Front tire | 8.25-20, 6 bolts |
| Rear tire | 8.25-20, 6 bolts |
| Battery(V) | 24v (electric start) |
| MP3 | WITH |
| Power steering | WITH |
| A/C | WITH |
