5 Ton Wheel Loader zl 50g

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

SAM

Model Number:

ZL50G

Weifang Heng An Imp& Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SAM

Model Number ZL50G

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7920*3050*3400mm

Rated Load 5ton

Certification ISO

Warranty 12MONTHS

After-sales Service Provided Engineers available to service machinery overseas

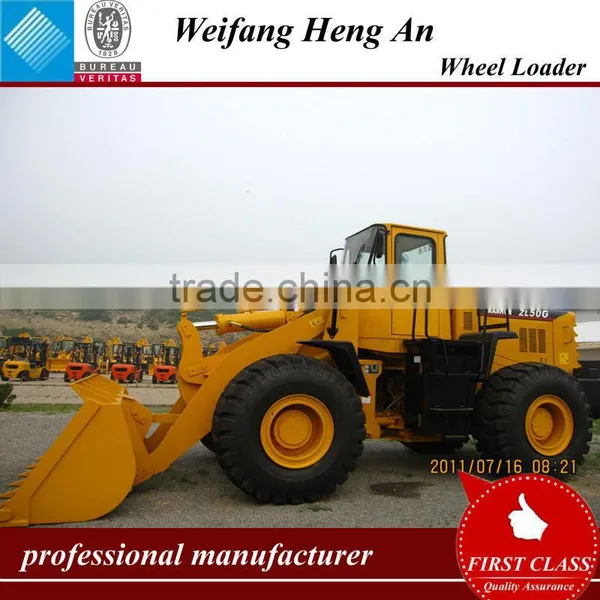

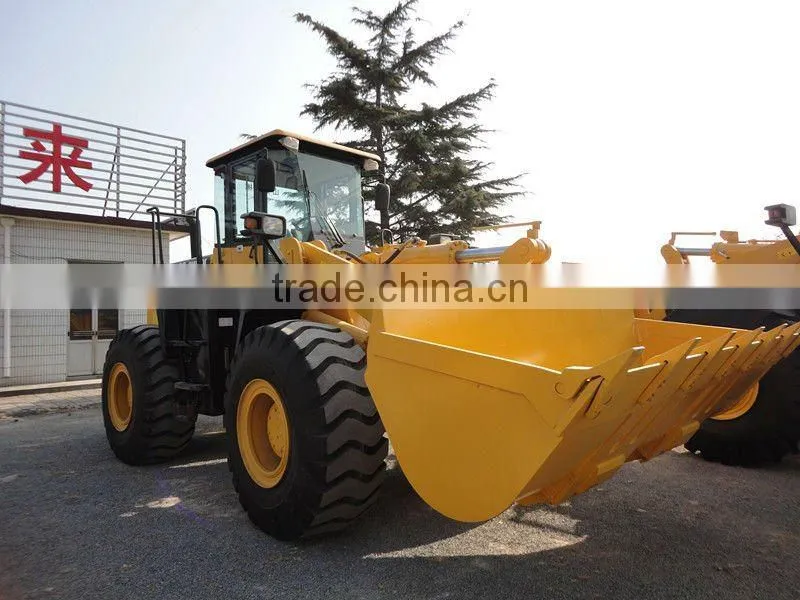

5 ton wheel loader

Performance	1	rated load	5000kg
	2	overall weight	17100kg
	3	rated bucket capacity	3m³
	4	maximum tractive force	152KN
	5	maximum breakout force	≥170KN
	6	maximum grade ability	30°C
	7	maximum dump height	3150mm
	8	maximum dump reach	1250mm
	9	overall dimension (L×W×H)	7920×3050×3400mm
	10	minimum turning radius	6640mm
Engine	11	model
	12	type	lnline water cooling dry cylinder injection
	13	No. of cylinder-bore/stroke	6-126×130mm
	14	rater power	162kw--2400r/min
	15	maximum torque	860N.m
	16	min fuel-consume ratio	≤215g/kw.h
Transmission system	17	torque converter	YJ375
	18	gearbox mode	Power shift normally engaged straight gear
	19	gear shift	4 forward shift 4reverse shift
	20	maximum speed	38km/h
Drive axles	21	main reducing spiral	bevel gear grade 1reduction
	22	decelerating mode	planetary reduction,grade 1
	23	wheel base (mm)	3200mm
	24	wheel tread	2250mm
	25	minimum ground clearance	450mm
Hydraulic system	26	system working pressure	18MPa
	27	boom lifting time	5.95±0.2s
	28	total time	10.95±0.5s
	29	fuel tank capacity	300L
	30	function of leveling automatically	yes
Brake system	31	service brake	air over hydraulic disc brake on 4 wheels
Brake system	32	parking brake	manual parking brake
Tyre	33	type specification	23.5-25
	34	front tyre pressure	0.4Mpa
	35	rear tyre pressure	0.35Mpa
