New Condition 85hp 4WD Tractor With Front End Loader and Back Hoe

New Condition 85hp 4WD Tractor With Front End Loader and Back Hoe thumbnail-1
New Condition 85hp 4WD Tractor With Front End Loader and Back Hoe thumbnail-2
New Condition 85hp 4WD Tractor With Front End Loader and Back Hoe thumbnail-3
New Condition 85hp 4WD Tractor With Front End Loader and Back Hoe thumbnail-4
New Condition 85hp 4WD Tractor With Front End Loader and Back Hoe photo-1
New Condition 85hp 4WD Tractor With Front End Loader and Back Hoe photo-2

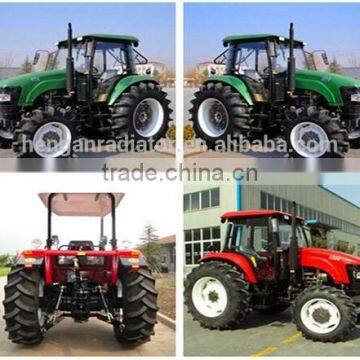

New Condition 85hp 4WD Tractor With Front End Loader and Back Hoe photo-3
New Condition 85hp 4WD Tractor With Front End Loader and Back Hoe photo-4
US$ 3,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Heng An Imp& Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 63KW
Certificate Other, ISO
Brand Name Heng An
Model Number HA854
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

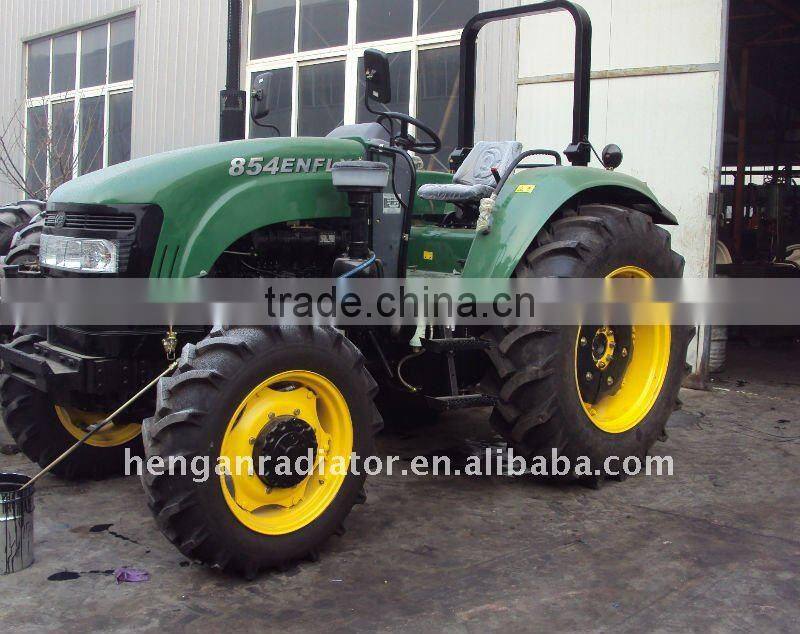

85HP 4WD HA854 Tractor



 New Condition 85hp 4WD tractor with Front End Loader and Back Hoe

Product Description

 Technical Data (90HP, 4WD Tractor):



Brief

   Model HA854-954 series tractor is in top position among the same industry in China and its matched power is R4105T diesel engine which power is 85/88hp. This tractor adopts fully hydraulic steering and hydraulic braking system. Its hydraulic suspension adopts catalogue II, tri-point, synthetic draft and position control. Joggling sleeve is equipped for its gearing shifting. Independently operated two stage clutch, reasonable shift gears (8 forward shifts and 2 reverse shifts), two rev. PTO according with international standard, its whole suspended, independent and combined airproof cab and adjustable tread are equipped with it. It is not only suitable for various field work, transportation and fixed tasks, but also for muddy fieldwork and engineering tasks. Model SWT-854-884as four wheel drive tractor is designed by installing a front drive axle on Model SWT850-950. Its traction is improved on a large scale and is more suitable to mountain areas and muddy roads.



Main Technical Specifications

 Model

HA804

HA854

HA904

HA954

Type

4*4 wheeled type  4WD

Main Dimensions of Tractor (mm)

Lenth

4430

Width

2030(Wheel base1600)

Height

2760

Tread

2395

Wheel base

Front wheel

1650

Rear wheel

1600-2000 (with 4 steps extension, each space 100mm)

Min.Ground Clearance

  385

Radius of turning circle (mm)

4900

±200

Structure mass(kg)

3600

Tyre

Front tyre

11.2-24

Rear tyre

16.9-34

Clutch

Dry-friction. Single Plate. Constant Engagement. Independent Operated Dual-action

Steering

Hydraulic Steering

Gearbox

Shifts

8F+2R shift

Speed(Km/h)

2.613-33.68

Hydraulic equipment

1.Horizontal single oil tank,Draft & position-responsive control, Top-link sensing

2.Double vertical oil tanks, power lifting up & down system

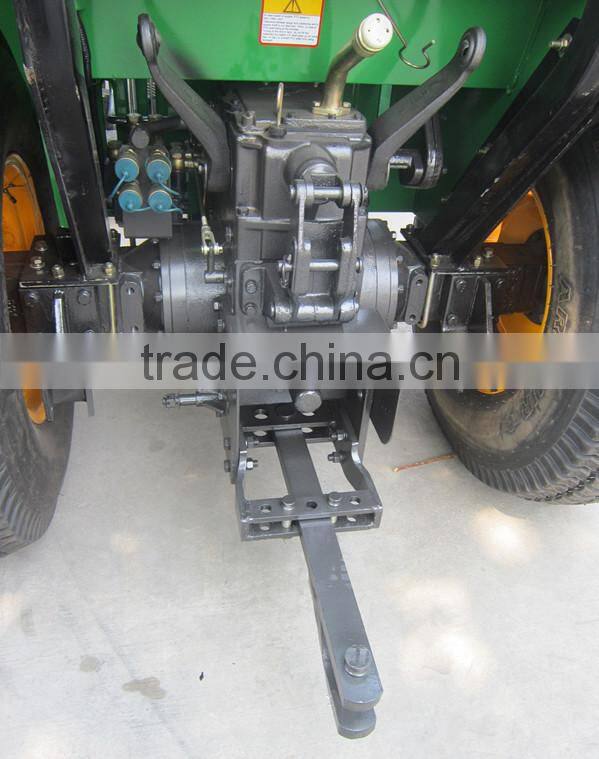

Suspension

Post-positioned Tri-point Suspension Catalogue II

PTO shaft

Tyre & rev.

Independent 540/1000 or 740/1000

Spline

35 Rectangle Spline with 6 teeth,38 Rectangle Spline with 8 teeth,48 Rectangle Spline with 8 teeth, II 35 involute Spline with 21 teeth

Working equipment

Hydraulic output (option)

One Plate with Two Output Connectors or Two Plate with Four Output Connectors(matching with hydraulic equipment 1)

Trailer brake (option)

Air brake

Engine

Model

R4105ZT

R4110T

Type

4-cylinder,vertical,water cooled,4-stroke and direct injection

Rated rev.(r/min)

2200

2300

Rated power(kW)

62.5

65

66.2

68

Fuel

Diesel

Structure and specification are subject to change without notice.

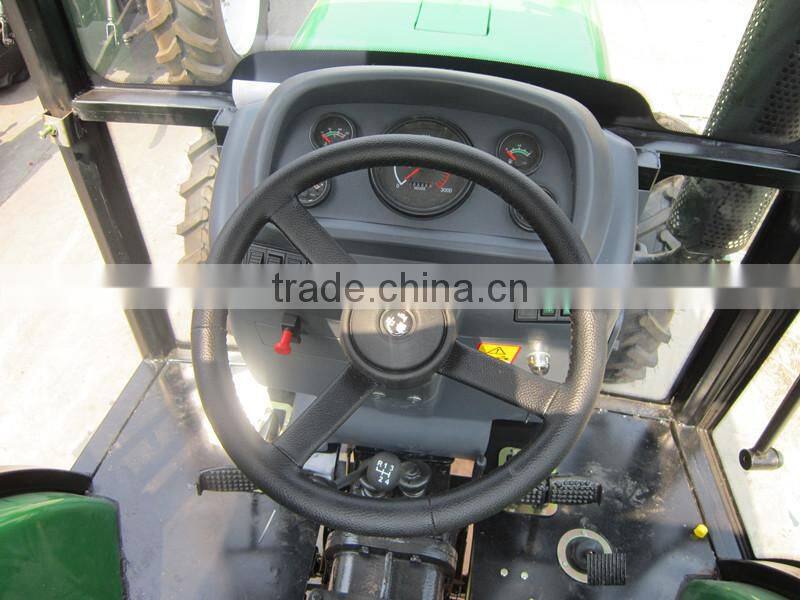

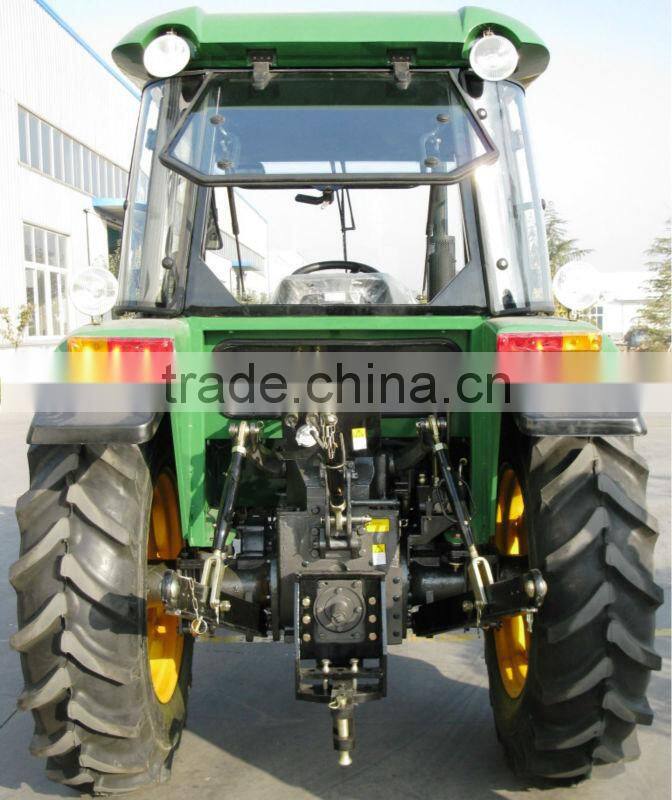

Details:



New Condition 85hp 4WD tractor with Front End Loader and Back Hoe



New Condition 85hp 4WD tractor with Front End Loader and Back Hoe

New Condition 85hp 4WD tractor with Front End Loader and Back Hoe

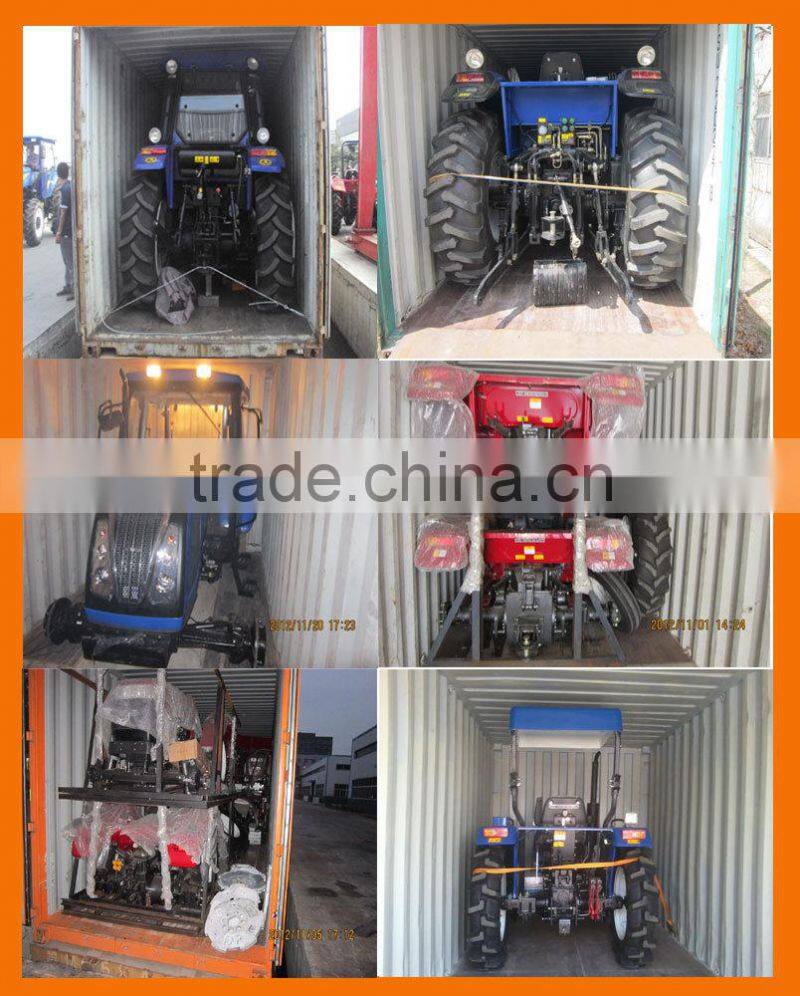

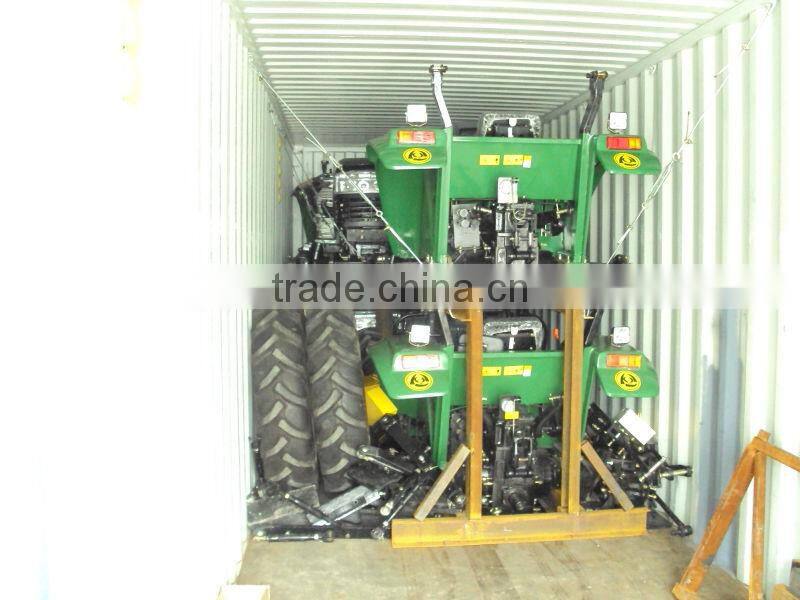

Packaging & Shipping

Tractor packing &shipping

1. All of the goods produce by the order.

2.The dlivery time is 20 days for one 20ft container.25 days for one 40ft container

3.1 unit  of 20ft container .  3 unites 80-120hp assembled tractor of 40ftcontainer

4.near delivery port :Qingdao port ,china .

New Condition 85hp 4WD tractor with Front End Loader and Back Hoe

 New Condition 85hp 4WD tractor with Front End Loader and Back Hoe


Our Services

 New Condition 85hp 4WD tractor with Front End Loader and Back Hoe

New Condition 85hp 4WD tractor with Front End Loader and Back Hoe

New Condition 85hp 4WD tractor with Front End Loader and Back Hoe

New Condition 85hp 4WD tractor with Front End Loader and Back Hoe

Company Information



Weifang Heng An Co., Ltd. offer third party inspection service such as B.V, SGS, COI etc.



OEM accepeted, customized available.



tractor Warranty: 12 months warranty, if problem caused by quality factor, we will send you free spar e parts by air within one week



tractor Dealership: We search for long-term dealership, price and quality are good, enough spare parts provied

We accept FOB, CIF, CNF, DDU & DDP. we can help shipping.

Paymentterm:T/T,L/C ,O/A etc.

FAQ

 New Condition 85hp 4WD tractor with Front End Loader and Back Hoe
