Product Details
Type: | Hollow Block Making Machine | Brick Raw Material: | Cement | Processing: | Brick Production Line |
Method: | Other, PLATFORM VIBRATION | Automatic: | No | Capacity: | 2880PCS/SHIFT |
Place of Origin: | Shandong, China | Brand Name: | SHENGYA | Model Number: | QTJ4-40C |
Power: | 9.6KW |
Product Description
Specifications
1semi-automatic,raw material conclude concrete,small stone,cement etc.2high efficiency ,save labor

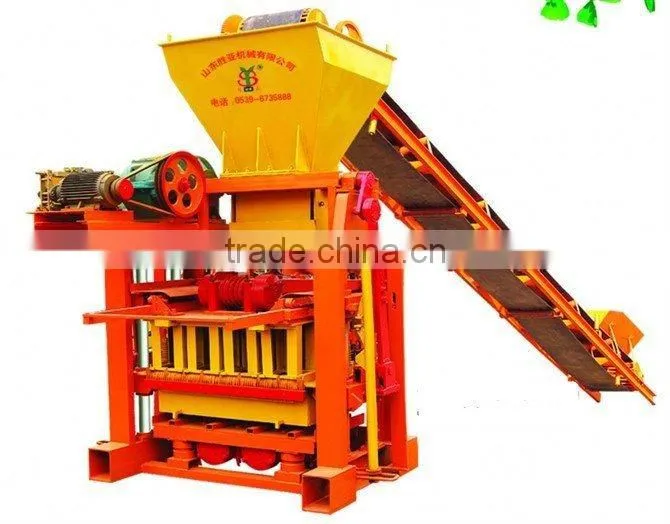

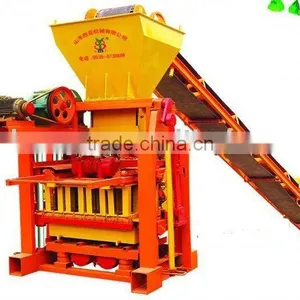

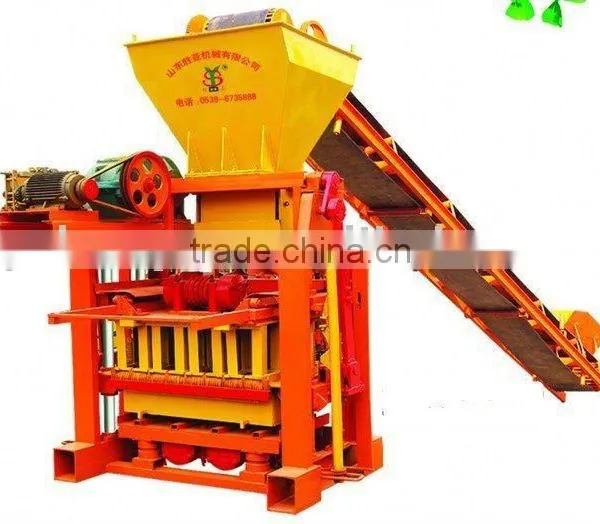

QTJ4-40B BLOCK SHAPING MACHINE
Introductions:
Samll size,economical,excellent in performance,high in efficiency,lower in energy consumption,kinds of brick can be made.
QTJ4-40-block making machine use the mechanical transmission, there are manual mixture into the island-me-forming. Their products look beautiful, clear edges and corners, the error of the blocks's weight is within+3%,and strength of it is up to 10.5 ((MPa), with a tolerance of 10%,its geometry is<± 1.5.
raw material conclude concrete,coal gangue, coal ash, slag, ceramic clay, gypsum and other industrial waste, there are production of various types of load-bearing and non-load-bearing blocks.
Technical specifications:

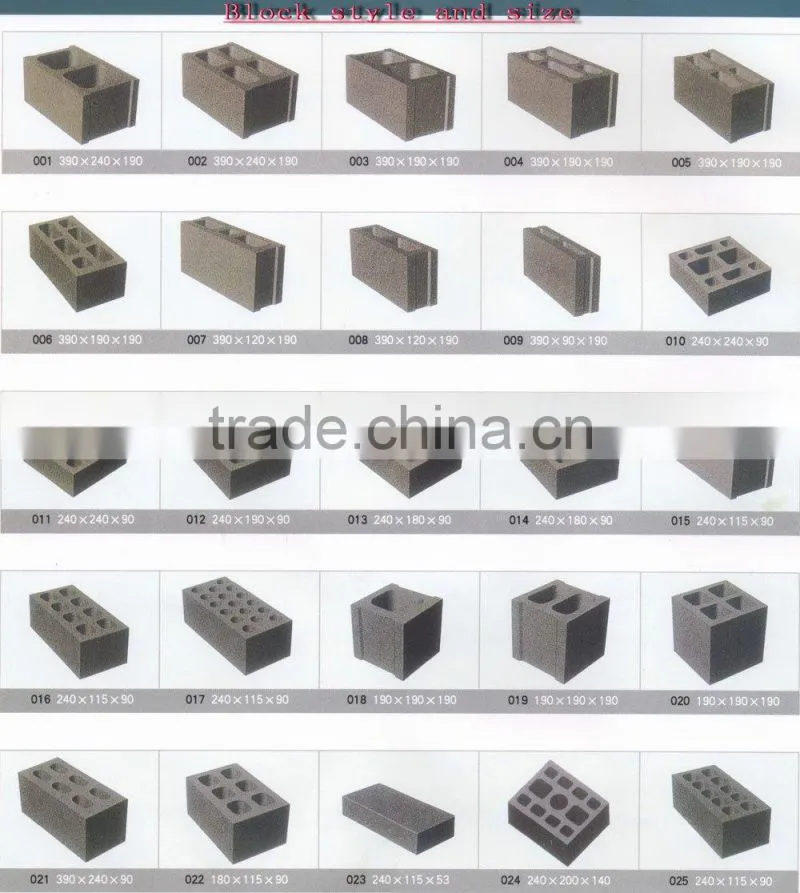

product quantity | standard brick 240x115x53mm 26pcs/mould block 400x 200x 200 mm 4 pcs/mould |
rated power | 9.6kw |
cycle | 40s |
weight | 1.5T |
carrier size | 850x550x30mm |
overall size | 1580x1100x2100mm |
standard norms | JC/T920-2003 |
PACKAGING & DELIVERY;
packaging | FCL:nude package LCL:seaworthy package or just as per customers' requests |
delivery | 20 days after payment |

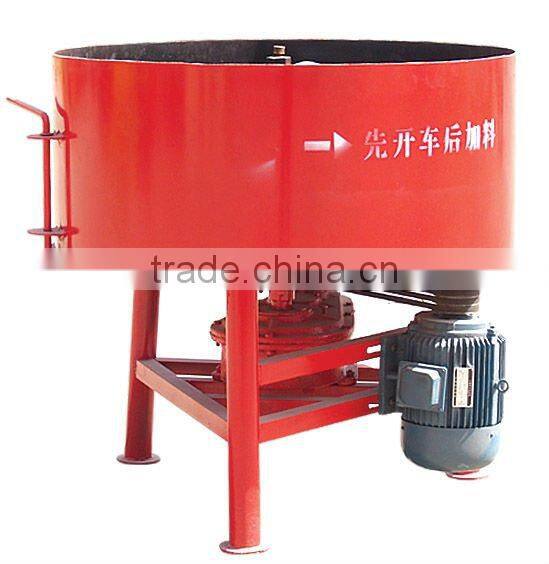

THE matched mixer:
